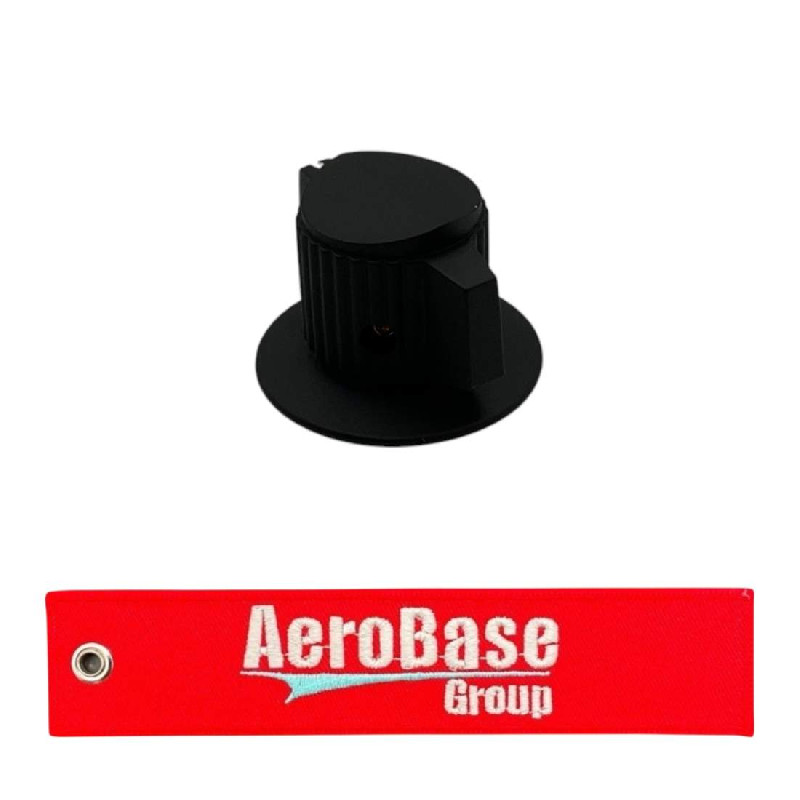

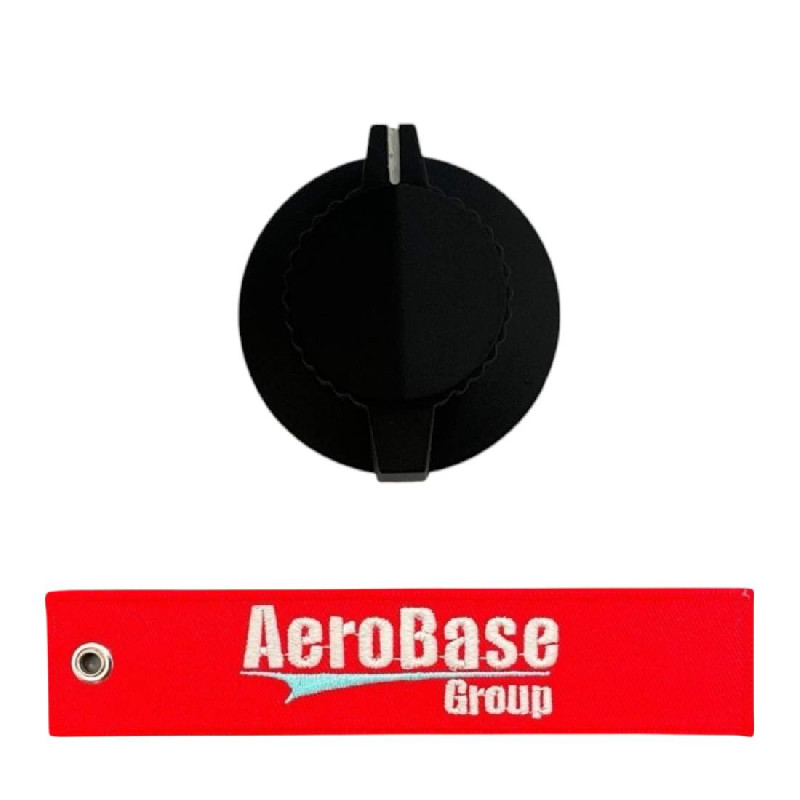

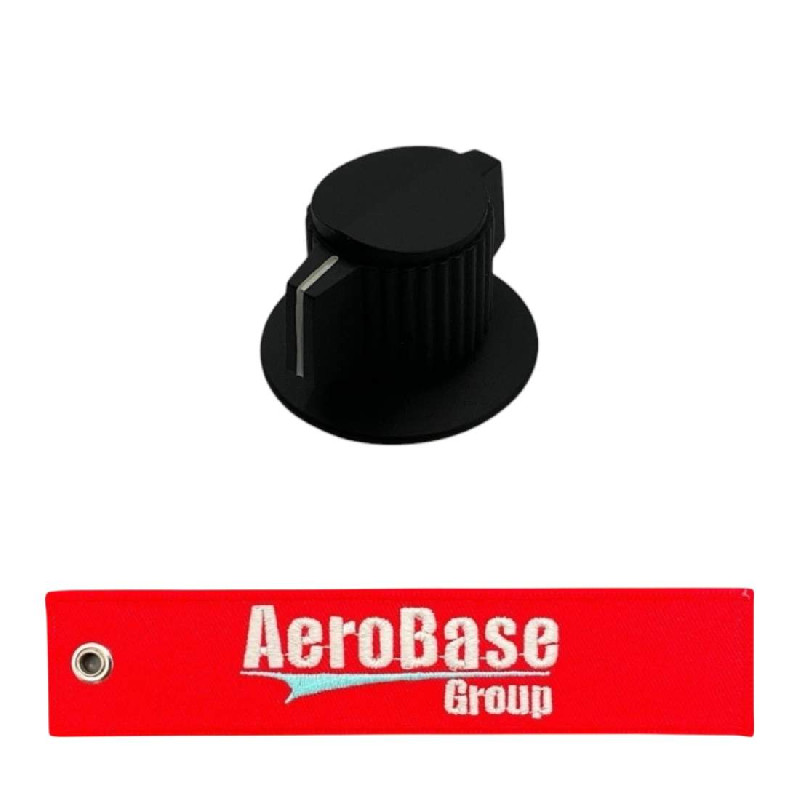

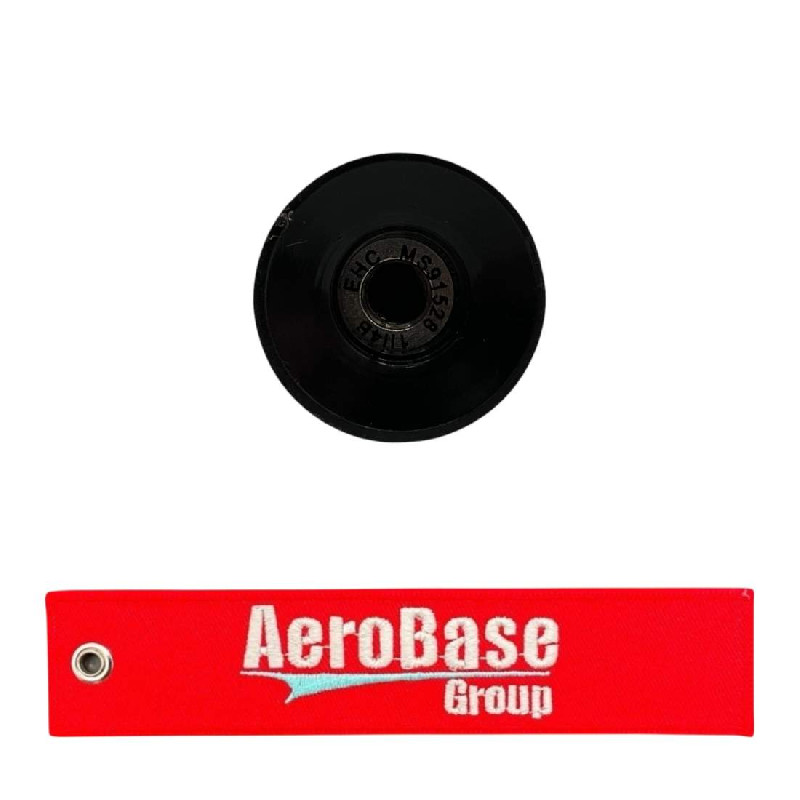

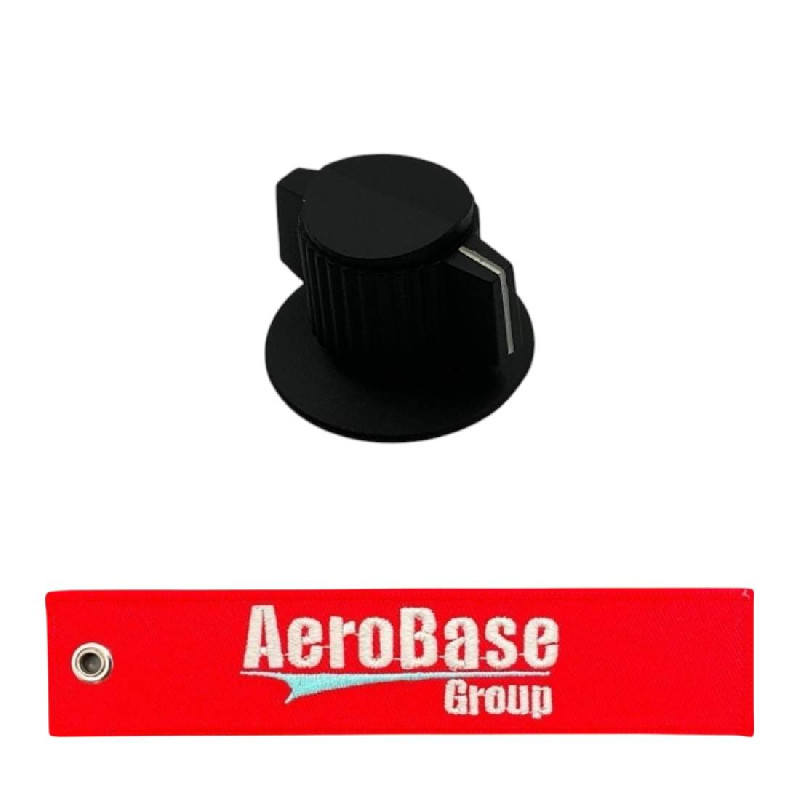

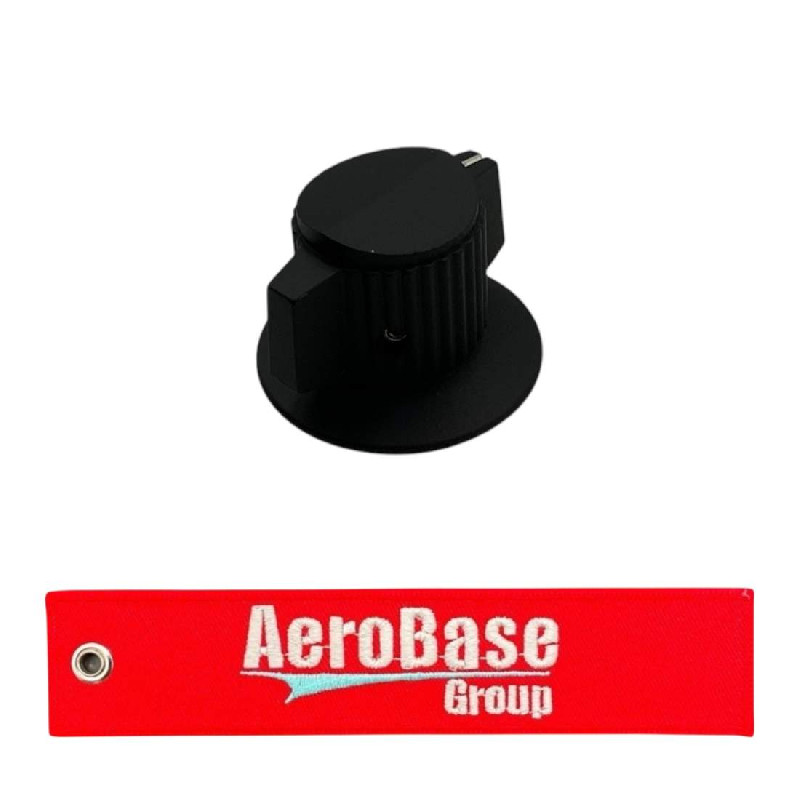

MS91528-1II4B Knob

Part#: MS91528-1II4B NSN: 5355-01-070-7151

About this product MS91528-1II4B Knob. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
MS91528-1II4B MS91528-1II4B MS91528-1II4B MS91528-1II4B MS91528-1II4B MS91528-1II4B

Product Details

Part Number or Model MS91528-1II4B
Description Knob
Schedule B Class
ECCN (Export Control Class) EAR99
Attachment Method Setscrews
Distance From Hole Center To Knob/skirt Base 0.369 inches maximum
Gripping Surface Condition Grip aid
Inside Diameter 0.250 inches minimum and 0.252 inches maximum
Inside Width 0.222 inches minimum and 0.227 inches maximum
Material Transparency Opaque
Thread Size 0.112 inches screw hole
Overall Depth 0.568 inches minimum
Overall Thickness 0.752 inches minimum and 0.812 inches maximum
Reference Marking Line
Screw Drive Type Hexagon socket
Setscrew Hole Quantity 2
Shaft Accommodation Style Flatted one side
Skirt Design Non detachable
Skirt Outside Diameter 1.150 inches maximum
Skirt Style Flared
Special Features Shaft accommodation hole counterbore 0.485 in. min diameter, 0.188 in. min depth
Specification Data 96906-ms91528 government standard
Style Designator Skirted/round with double fin lever
Thread Qty Per Inch (tpi) 40 screw hole
Thread Series Designator Unc screw hole
Width 1.125 inches minimum and 1.175 inches maximum

Add to Cart

Up to quantity 14 ships same day.
buy now $48.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5355-01-070-7151
  • Package Weight (oz)
    0.464
  • Manufactured By
    ELECTRONIC HARDWARE
  • ECCN (Export Control Class)
    EAR99
