MS91528-1F3B Knob

Name: Knob
Brand: ELECTRONIC HARDWARE
SKU: 5355004824498
Price: 138.95 USD
Availability: InStock

Part#: MS91528-1F3B NSN: 5355-00-482-4498

About this product MS91528-1F3B Knob. * Manufacturer certifications are shipped with your order FREE of charge

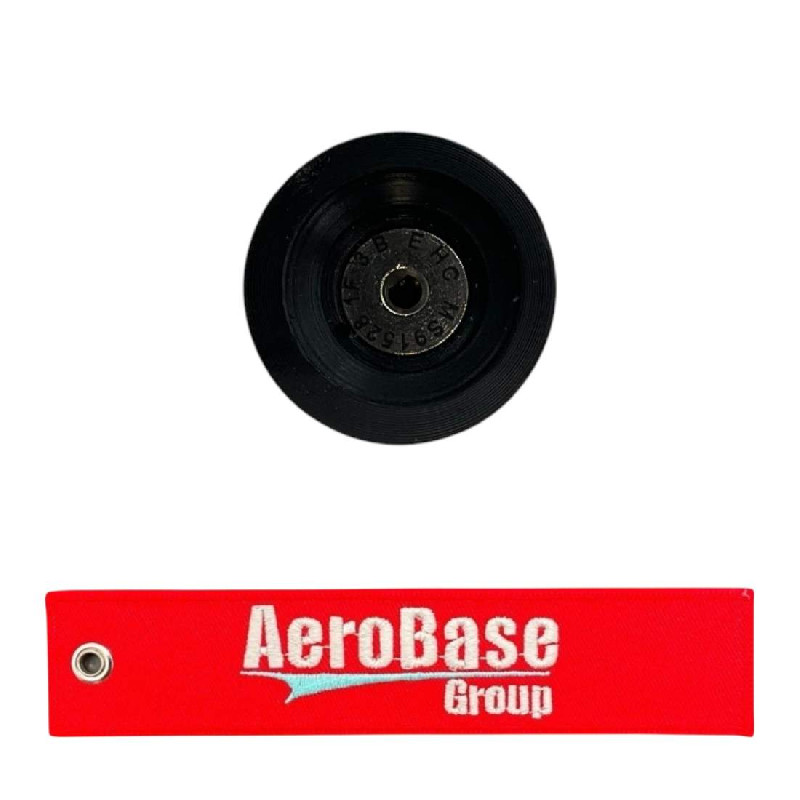

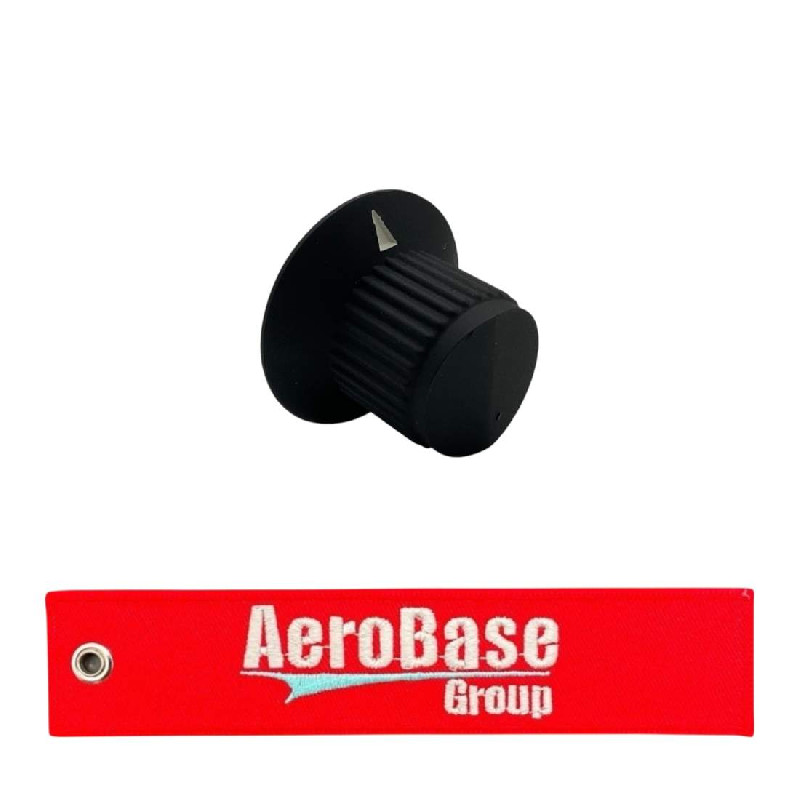

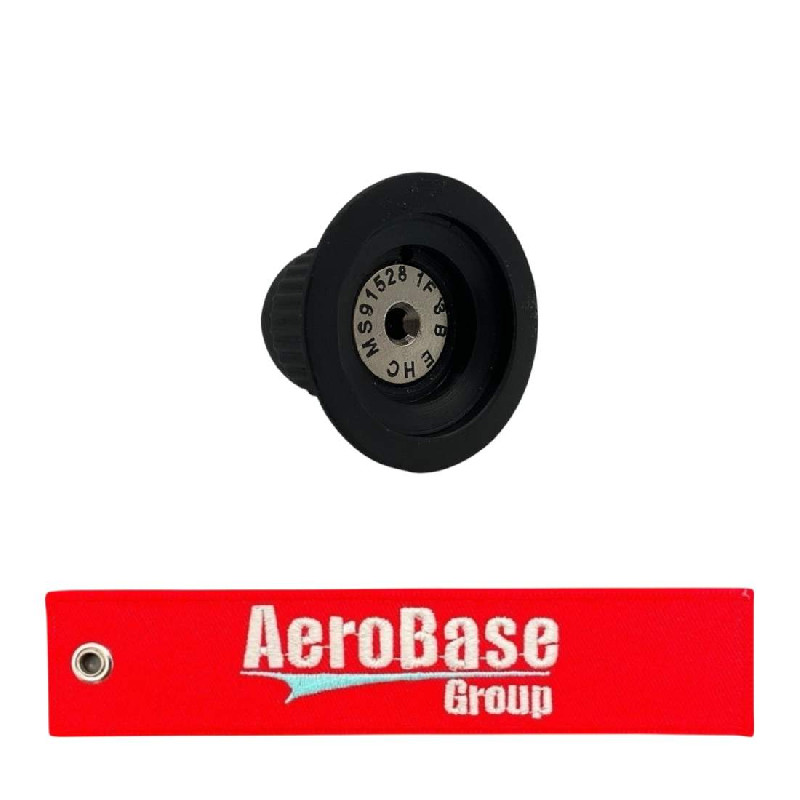

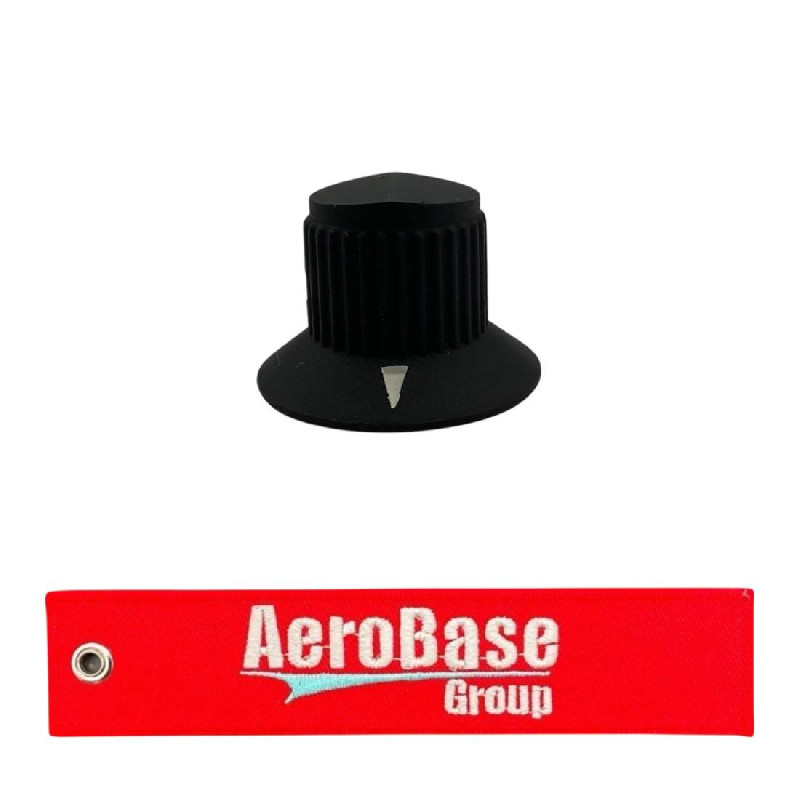

Product Images

Product Details

Part Number or Model	MS91528-1F3B
Description	Knob
Schedule B Class
ECCN (Export Control Class)	EAR99
Attachment Method	Setscrews
Distance From Hole Center To Knob/skirt Base	0.369 inches maximum
Gripping Surface Condition	Grip aid
Inside Diameter	0.127 inches minimum and 0.129 inches maximum
Inside Width	0.107 inches minimum and 0.112 inches maximum
Material Transparency	Opaque
Thread Size	0.112 inches screw hole
Outside Diameter	0.690 inches minimum and 0.730 inches maximum
Overall Depth	0.568 inches minimum
Overall Thickness	0.752 inches minimum and 0.812 inches maximum
Reference Marking	Arrow
Screw Drive Type	Hexagon socket
Setscrew Hole Quantity	2
Shaft Accommodation Style	Flatted one side
Skirt Design	Non detachable
Skirt Outside Diameter	1.150 inches maximum
Skirt Style	Flared
Special Features	Shaft accommodation hole counterbored, 0.485 in. min diameter, 0.188 in. min depth
Style Designator	Round
Thread Qty Per Inch (tpi)	40 screw hole
Thread Series Designator	Unc screw hole

Up to quantity 5 ships same day.

buy now $138.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
