SPI Connects MS3116F10-6S Conenctor

Part#: MS3116F10-6S NSN: 5935-00-089-2097

About this product MS3116F10-6S Conenctor. * Manufacturer certifications are shipped with your order FREE of charge

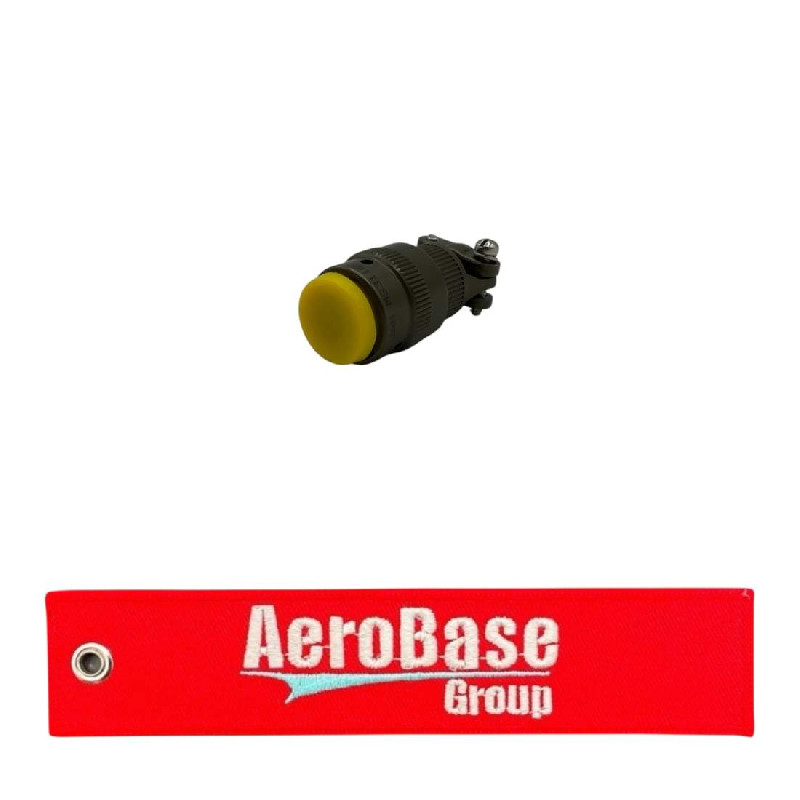

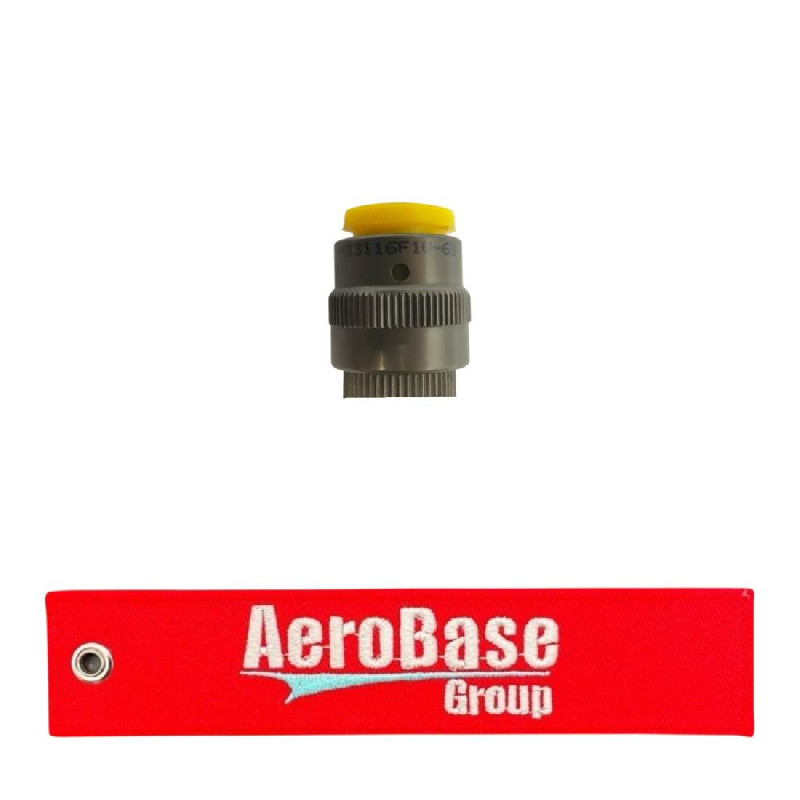

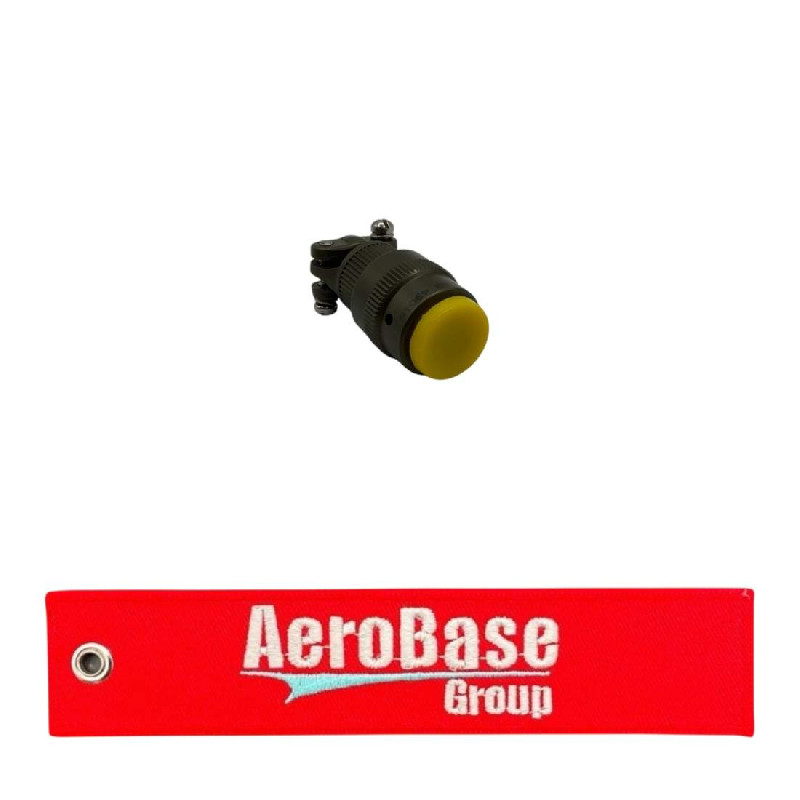

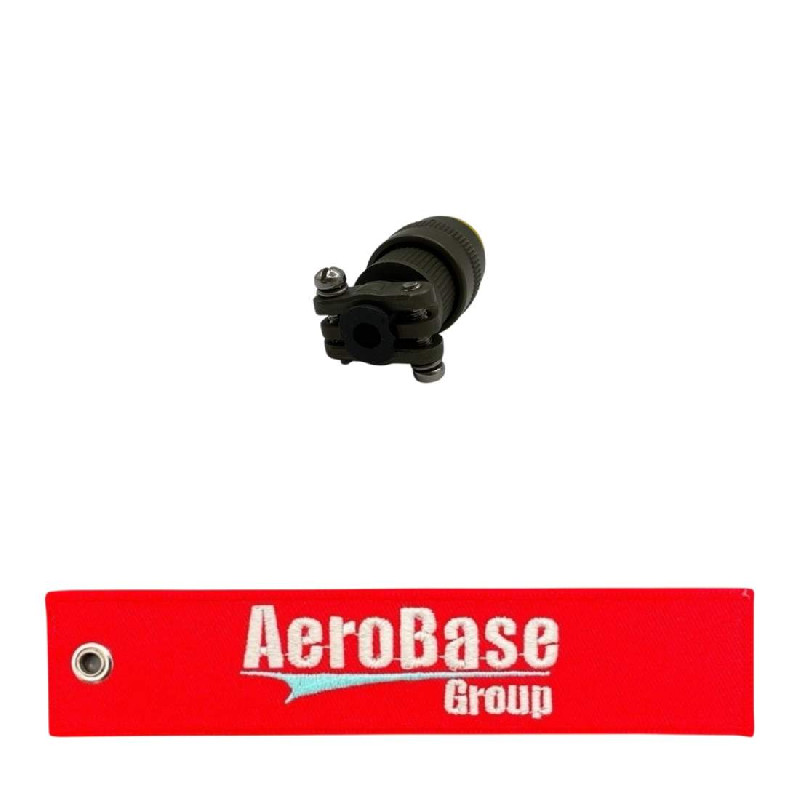

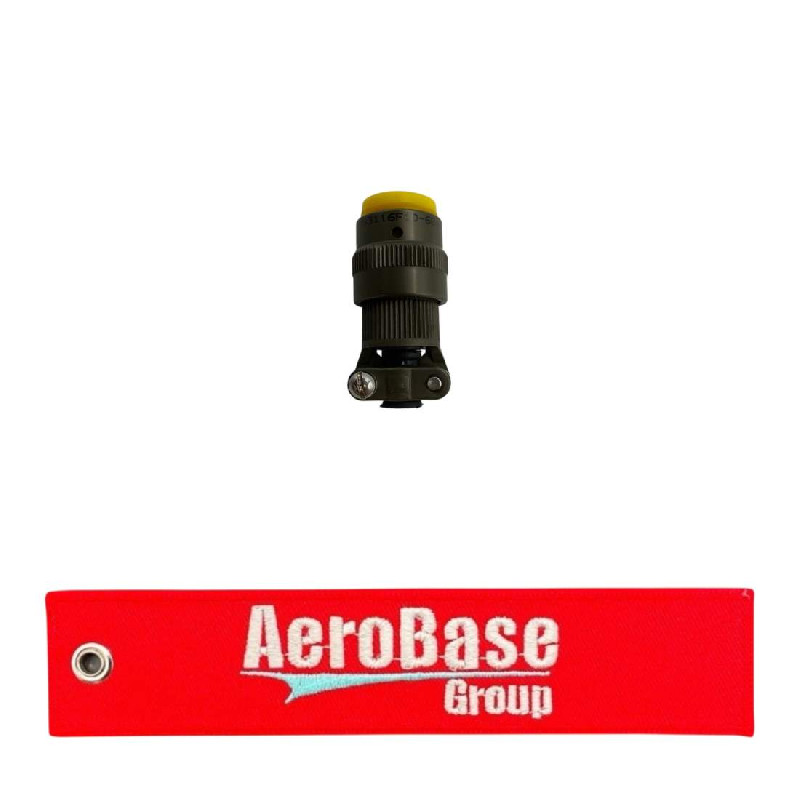

Product Images
MS3116F10-6S MS3116F10-6S MS3116F10-6S MS3116F10-6S MS3116F10-6S

Product Details

Part Number or Model MS3116F10-6S
Description Connector
Schedule B Class 8536.69.4020
ECCN (Export Control Class) EAR99
Termination Style Solder cup contacts designed for 24 to 20 awg wires
Terminal Location Back single mating end single contact grouping
Terminal Type Solder well single mating end single contact grouping
Shell Type Solid
Shell Material Aluminum alloy
Shell Surface Treatment Cadmium
Shell Surface Treatment Specification Qq-p-416, type 2, class 3 federal spec single treatment response
Precious Material Gold
Precious Material And Location Contact surfaces gold
Polarization Method Key, multiple key groove
Overall Diameter 0.859 inches maximum
Mating End Quantity 1
Operating Temperature Range Interoperable between -55 c and +125 c
Insert Position In Degrees 0.0
Included Contact Type Round socket single mating end single contact grouping
Included Contact Quantity 6 single mating end single contact grouping
Environmental Protection Moisture resistant and salt water resistant and vibration resistant
Contact Surface Treatment Gold single mating end single contact grouping and copper single mating end single contact grouping
Contact Removability Nonremovable single mating end single contact grouping
Contact Position Arrangement Style 6-oct single mating end
Contact Position Arrangement Style 10-6 single mating end
Body Style Straight shape, internal coupling w/strain relief
Cable Entrance Diameter 0.297 inches maximum
Connector Cable Strain Relief Method Cable clamp
Connector Locking Method Bayonet latch
Contact Maximum Ac Voltage Rating In Volts 600 single mating end single contact grouping
Body Length 1.828 inches maximum

Add to Cart

Up to quantity 46 ships same day.
buy now $45.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-089-2097
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS3116F106S
  • 5935-00-089-2097
  • 5935000892097
