SPI Connects MS3116F10-6P Connector

Part#: MS3116F10-6P

About this product MS3116F10-6P military-standard (MIL-DTL-26482 Series I) circular electrical connector. * Manufacturer certifications are shipped with your order FREE of charge

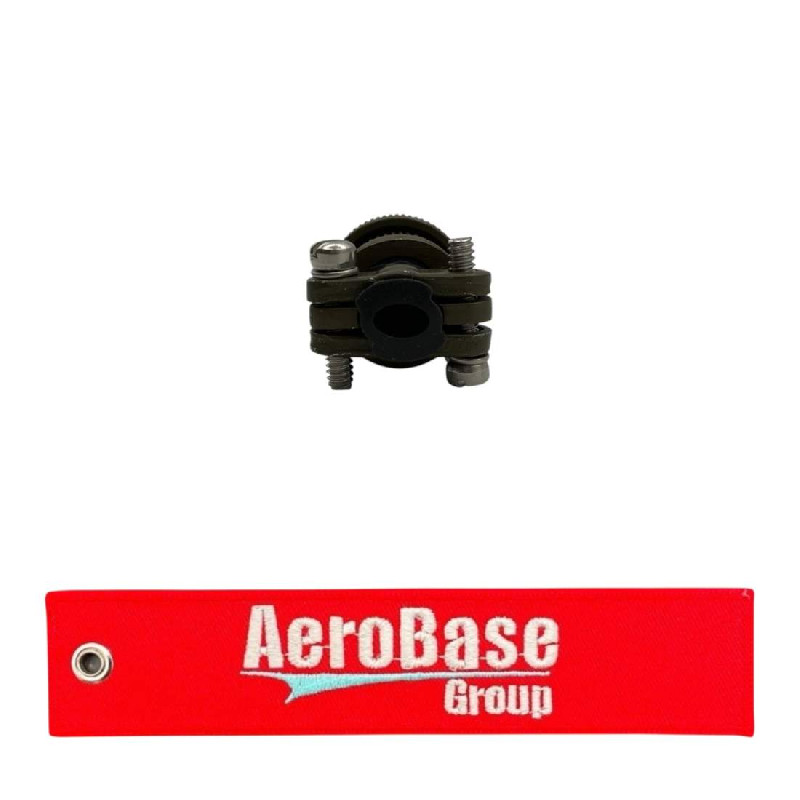

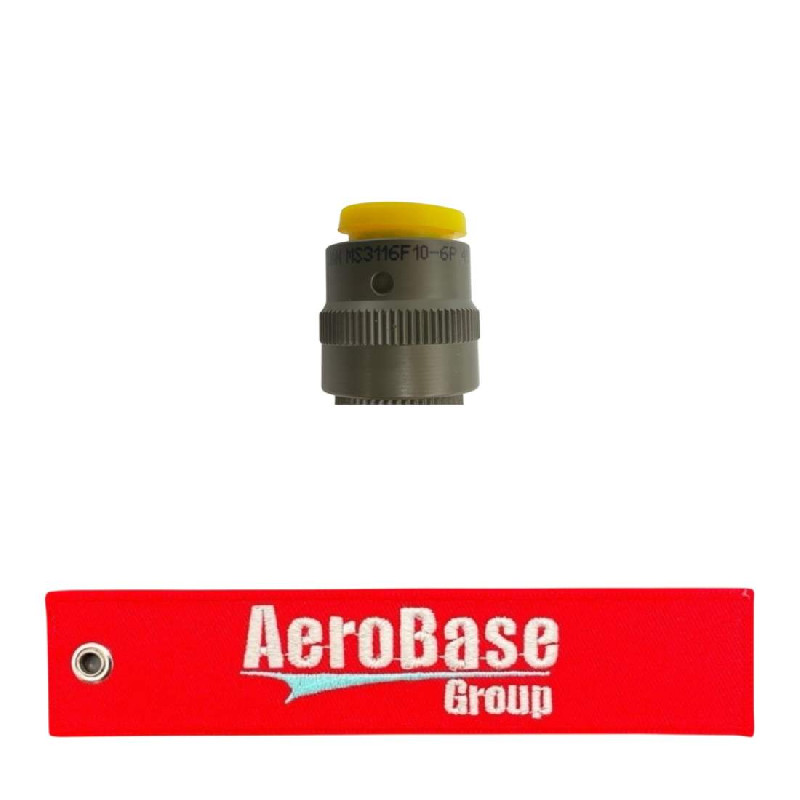

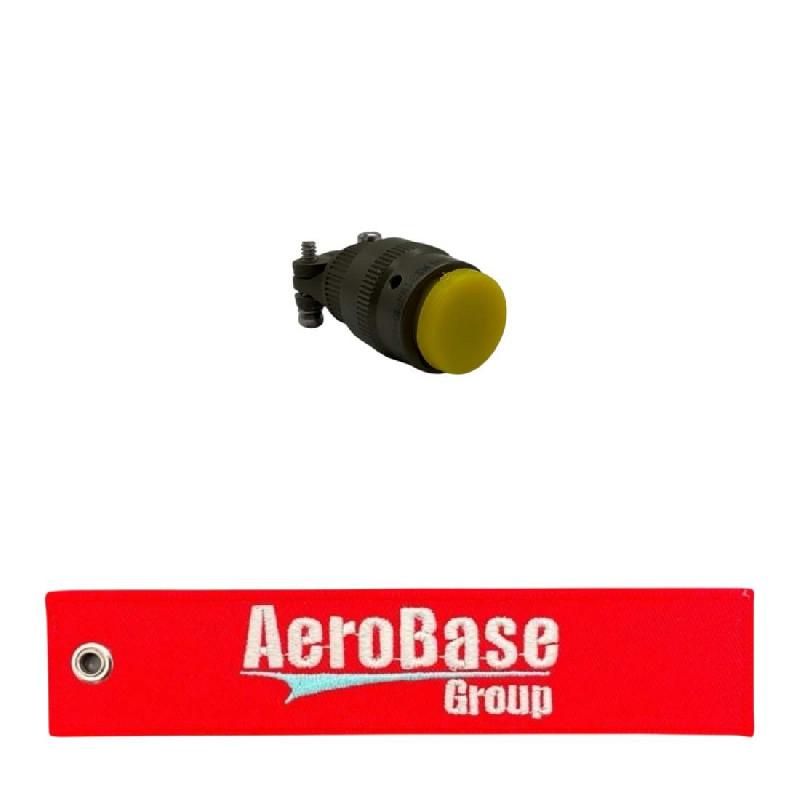

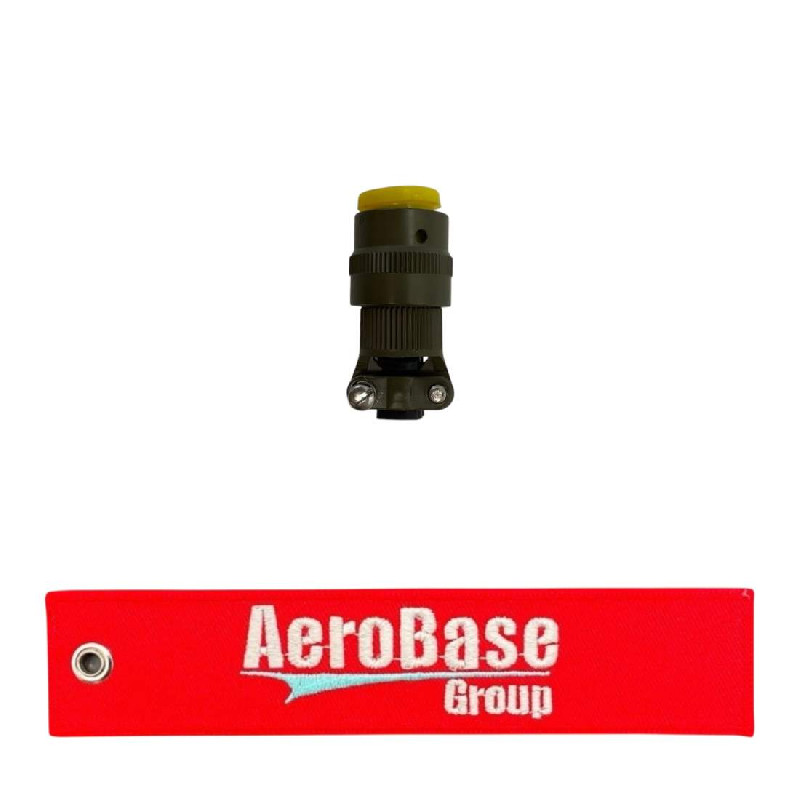

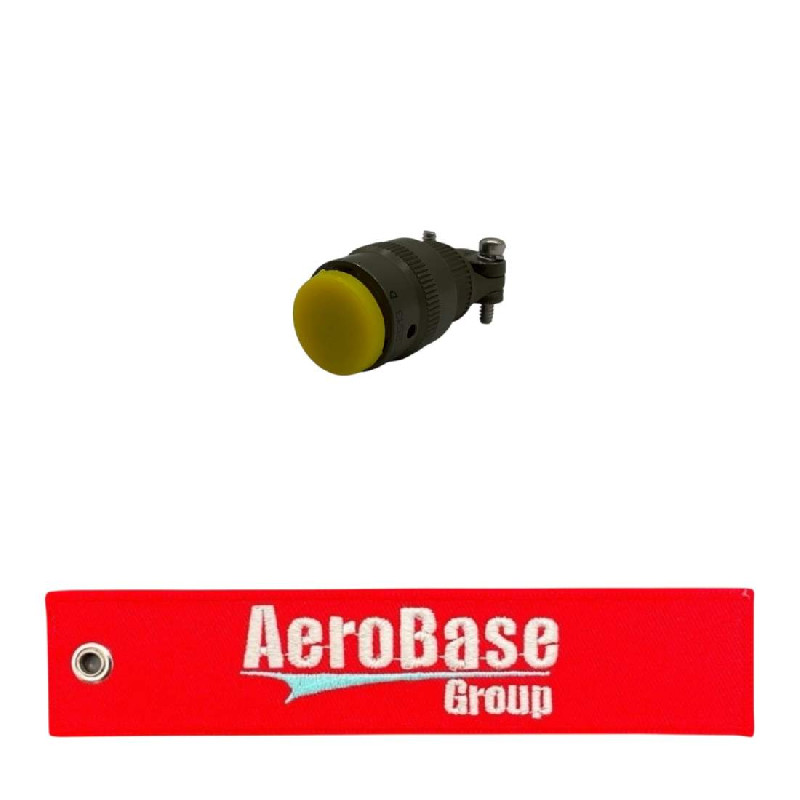

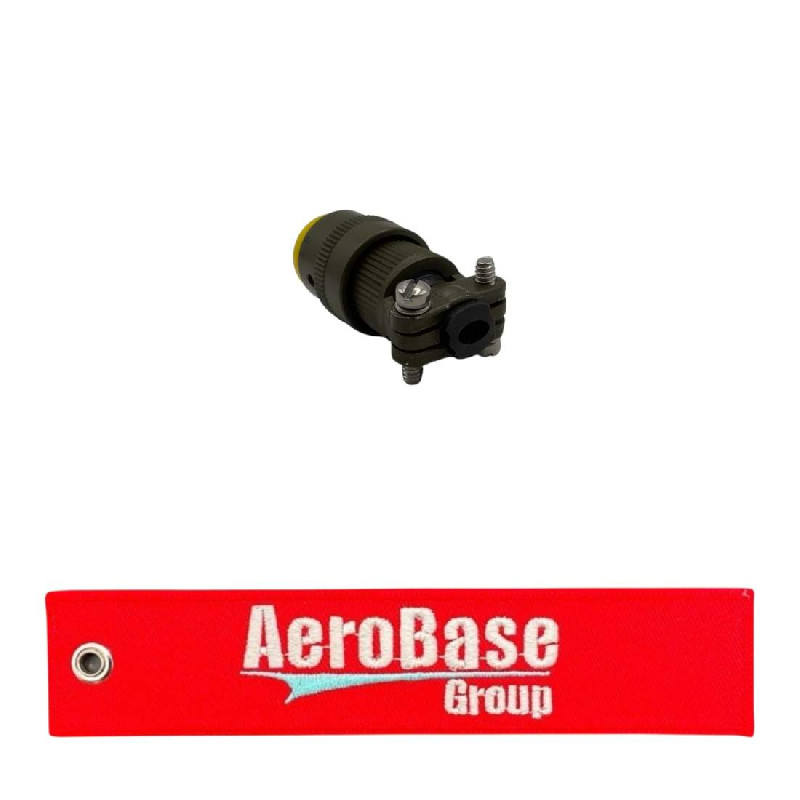

Product Images
MS3116F10-6P MS3116F10-6P MS3116F10-6P MS3116F10-6P MS3116F10-6P MS3116F10-6P

Product Details

Part Number or Model MS3116F10-6P
Description Connector
Schedule B Class 8536.69.5050
ECCN (Export Control Class) EAR99
Number of Positions 6 pins
Military Specification MIL-DTL-26482 Series I
Contact Size #20 AWG (accepts 24 AWG to 20 AWG wire)
Termination Type Solder cup
Coupling Style 3-point bayonet lock
Current Rating 7.5 Amps per contact
Voltage Rating 600 VAC / 850 VDC
Shell Material & Finish Aluminum alloy with an Olive Drab Chromate over Cadmium plating
Contact Plating Gold over a copper alloy base
Operating Temperature Range -55 C to +125 C

Add to Cart

Up to quantity 46 ships same day.
buy now $45.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS3116F106P
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
Free Shipping on eligible orders over 150
