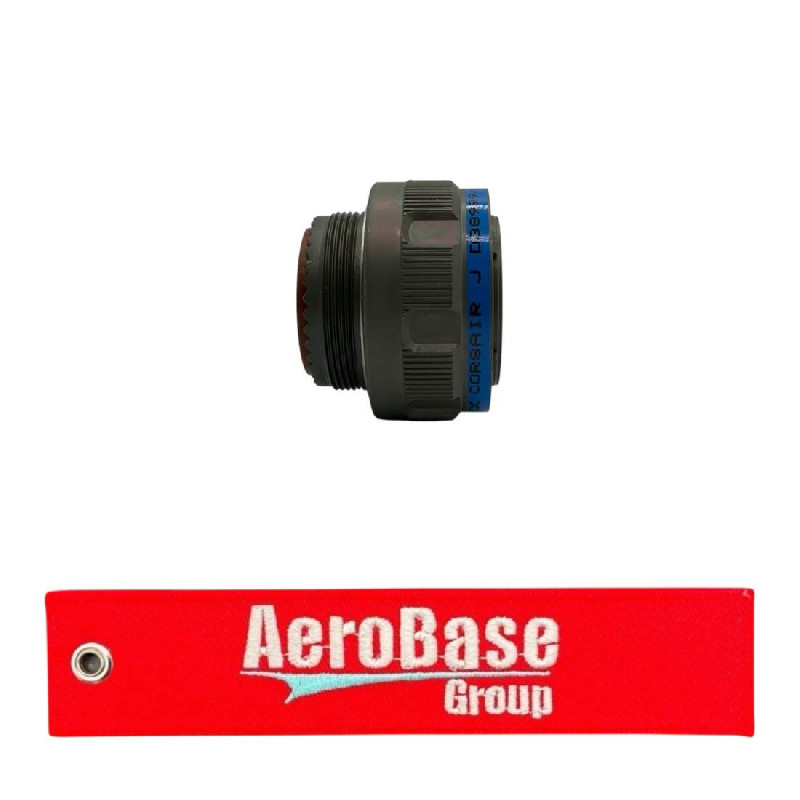

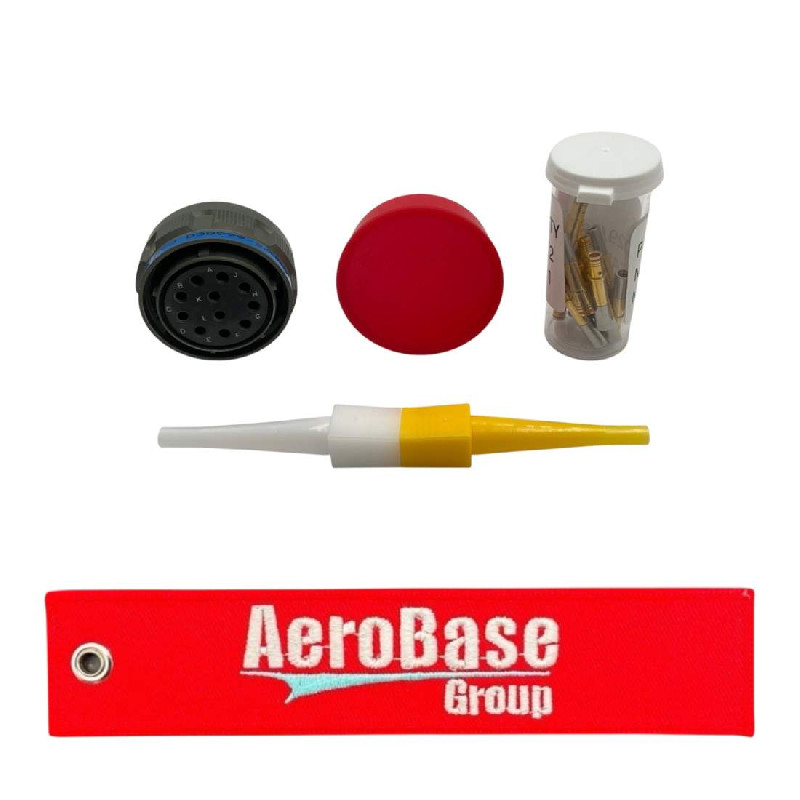

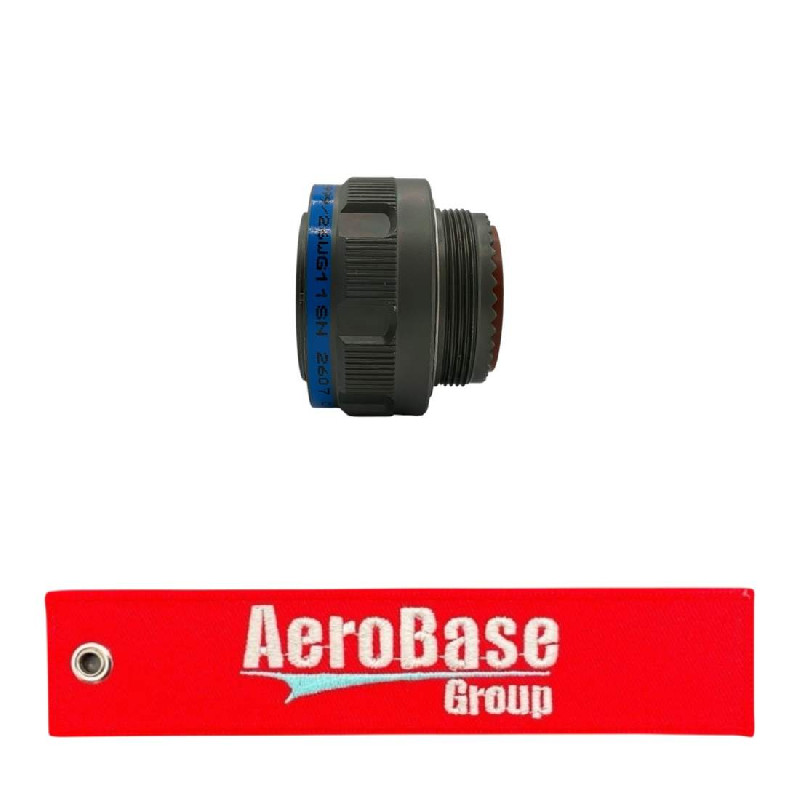

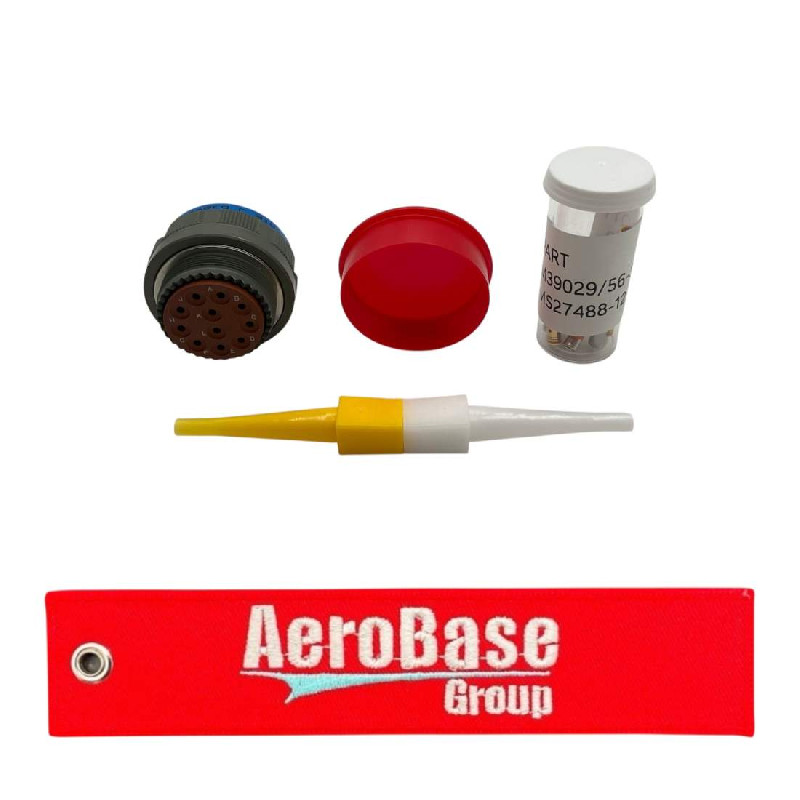

D38999/26WG11SN Connector

Name: Connector
Brand: Wiremasters
SKU: 5935012300425
Price: 92.00 USD
Availability: InStock

Part#: D38999/26WG11SN NSN: 5935-01-230-0425

About this product D38999/26WG11SN Connector. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	D38999/26WG11SN
Description	Connector
Schedule B Class	8536695050
ECCN (Export Control Class)	EAR99
Thread Qty Per Inch (tpi)	10
Thread Pitch In Millimeters	1.00
Thread Direction	Right-hand and right-hand
Thread Class	2a
Terminal Type	Crimp single mating end single contact grouping
Terminal Location	Back single mating end single contact grouping
Shell Type	Solid
Shell Surface Treatment Specification	Qq-p-416 fed spec single treatment response
Shell Material	Aluminum alloy
Shell Surface Treatment	Cadmium
Precious Material And Weight	0.011 gold grains, troy
Precious Material And Location	Contact surfaces gold
Precious Material	Gold
Polarization Method	Keyway or multiple keyway
Overall Length	33.1 millimeters maximum
Overall Diameter	41.7 millimeters maximum
Mating End Quantity	1
Insert Position In Deg	0.0
Included Contact Type	Round socket single mating end single contact grouping
Included Contact Quantity	11 single mating end single contact grouping
Contact Removability	Removable single mating end single contact grouping
Contact Surface Treatment	Gold single mating end single contact grouping
Contact Surface Treatment Specification	Mil-g-45204 mil spec single treatment response single mating end single contact grouping
Contact Position Arrangement Style	21-11 single mating end
Contact Material	Copper alloy single mating end single contact grouping
Connector Locking Method	Internally threaded coupling ring
Body Style	Straight shape, internal coupling
Thread Series Designator	Iso m and special acme
Thread Size	31.0 millimeters and 1.375 inches
Thread Tolerance Class	6g internal
Threaded Device Type	Back shell and coupling facility
