NAS1387-3 Conductor Splice

Part#: NAS1387-3 NSN: 5940-00-168-3316

About this product Conductor Splice part number NAS13873 * Manufacturer certifications are shipped with your order FREE of charge

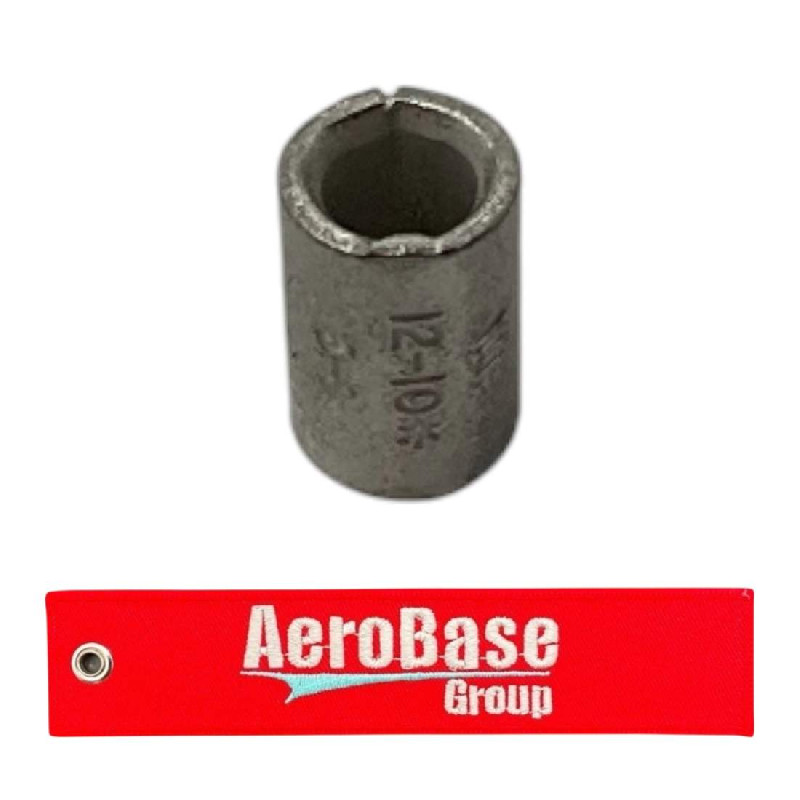

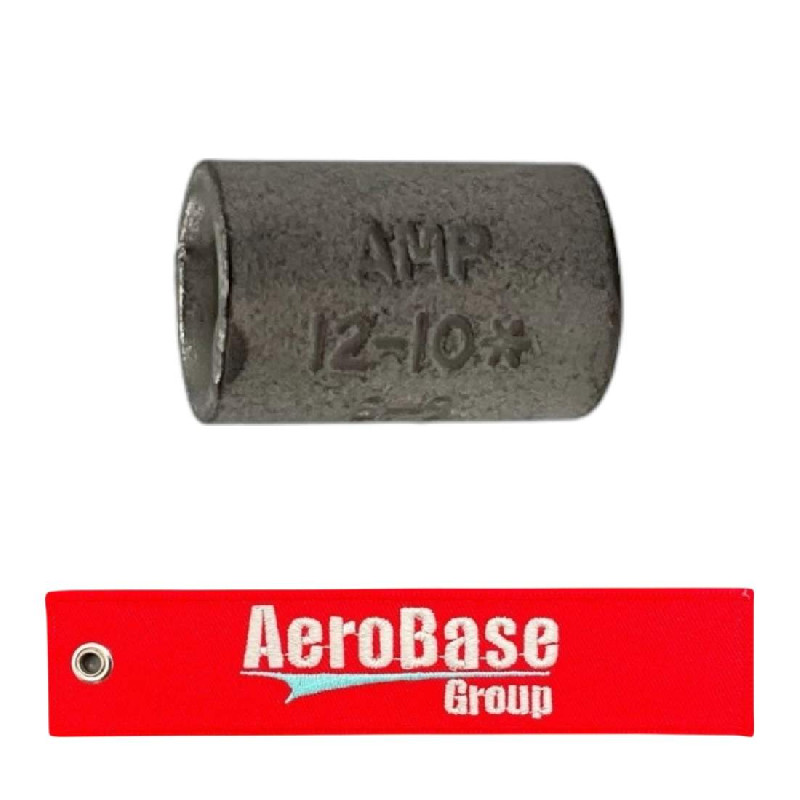

Product Images
NAS1387-3 NAS1387-3 NAS1387-3

Product Details

Part Number or Model NAS1387-3
Description Conductor Splice
Schedule B Class
ECCN (Export Control Class) EAR99
Basic Shape Style Crimp
Conductor Accommodation Type Straight barrel all ends
Criticality Code Justification Feat
Electrical Insulation Feature Uninsulated
Material Copper alloy overall
Maximum Conductor Size Accommodated 10 awg
Overall Length 0.344 inches
Special Features Inside dia 0.129 in.
Surface Treatment Tin overall single layer

Add to Cart

Up to quantity 2200 ships same day.
buy now $0.40
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5940-00-168-3316
  • Package Weight (oz)
    3.632
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5940-00-168-3316
  • 5940001683316
  • NAS13873
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
