NAS1387-2 Conductor Splice

Part#: NAS1387-2 NSN: 5940-00-136-9188

About this product NAS1387-2 is an uninsulated straight-barrel conductor splice designed for crimp termination of electrical wire up to 14 AWG. Manufactured from tin-plated copper alloy, the splice measures approximately 0.312 inch in overall length with a 0.085-inch inside diameter. NAS1387-2 is the design-control reference for NSN 5940-00-136-9188 and is used in aerospace, military and defense electrical wiring applications. * Manufacturer certifications are shipped with your order FREE of charge

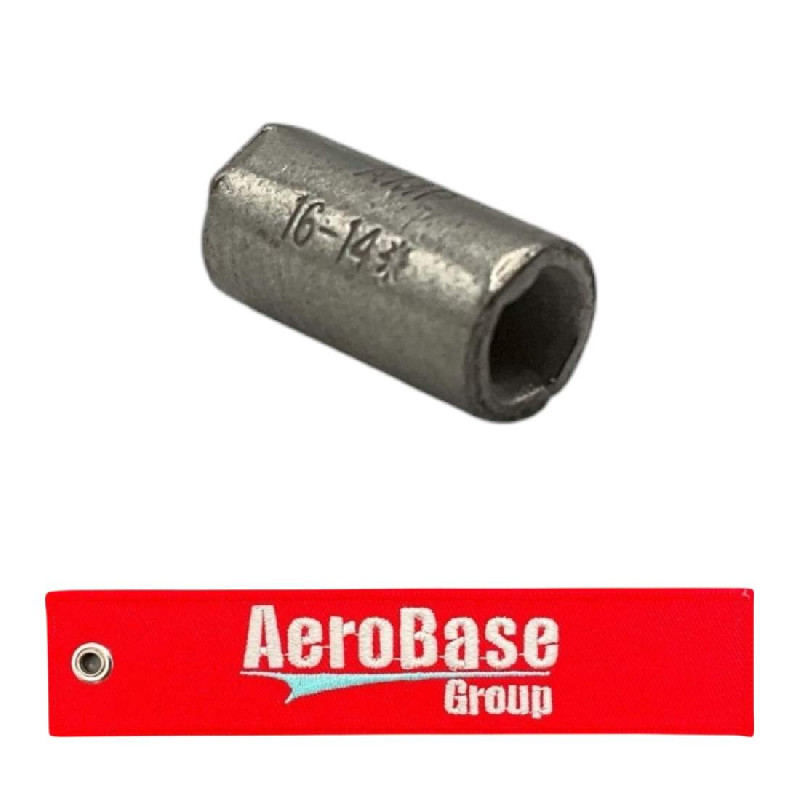

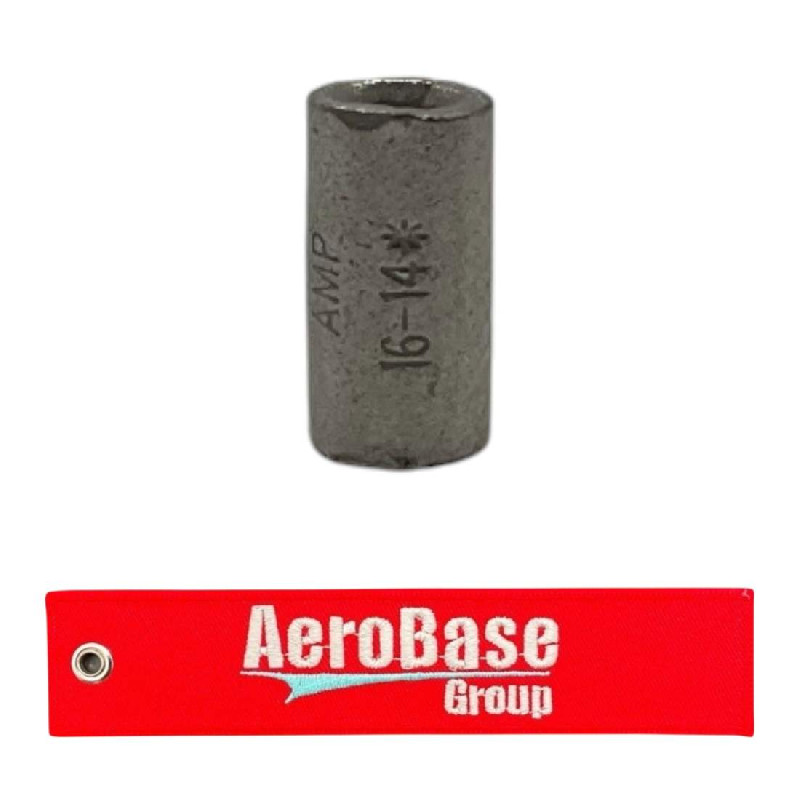

Product Images
NAS1387-2 NAS1387-2 NAS1387-2

Product Details

Part Number or Model NAS1387-2
Description Conductor Splice
Schedule B Class 8536.90.4000
ECCN (Export Control Class) EAR99
Overall Length 0.312 inches
Maximum Conductor Size Accommodated 14 awg
Material Copper alloy overall
Electrical Insulation Feature Uninsulated
Criticality Code Justification Feat
Conductor Accommodation Type Straight barrel all ends
Basic Shape Style Crimp
Special Features Inside diameter 0.085 inch
Surface Treatment Tin overall single layer

Add to Cart

Up to quantity 3200 ships same day.
buy now $0.40
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5940-00-136-9188
  • Package Weight (oz)
    1.904
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 34137
  • 5940-00-136-9188
  • 5940001369188
  • NAS13872
  • 5940-01-582-3950
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
