7277-1-1/2 Circuit Breaker

Part#: 7277-1-1/2 NSN: 5925-01-149-6961

About this product 7277-1-1/2 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

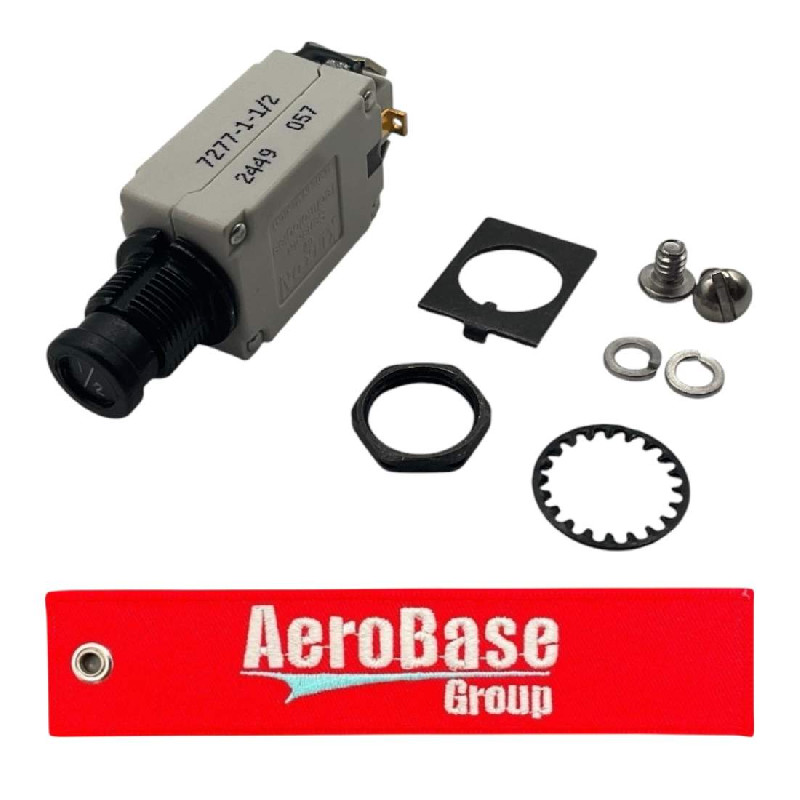

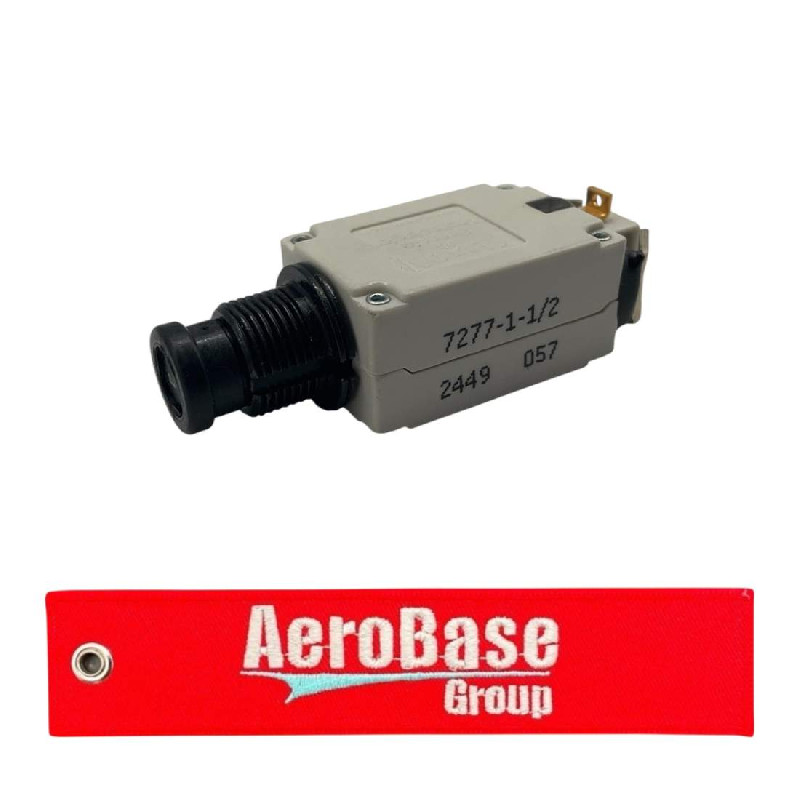

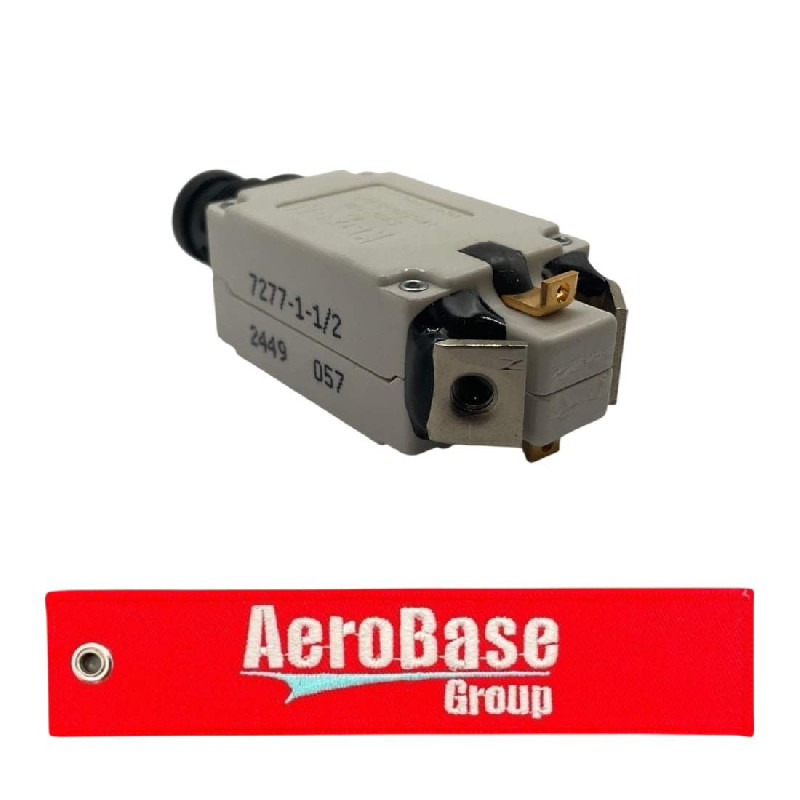

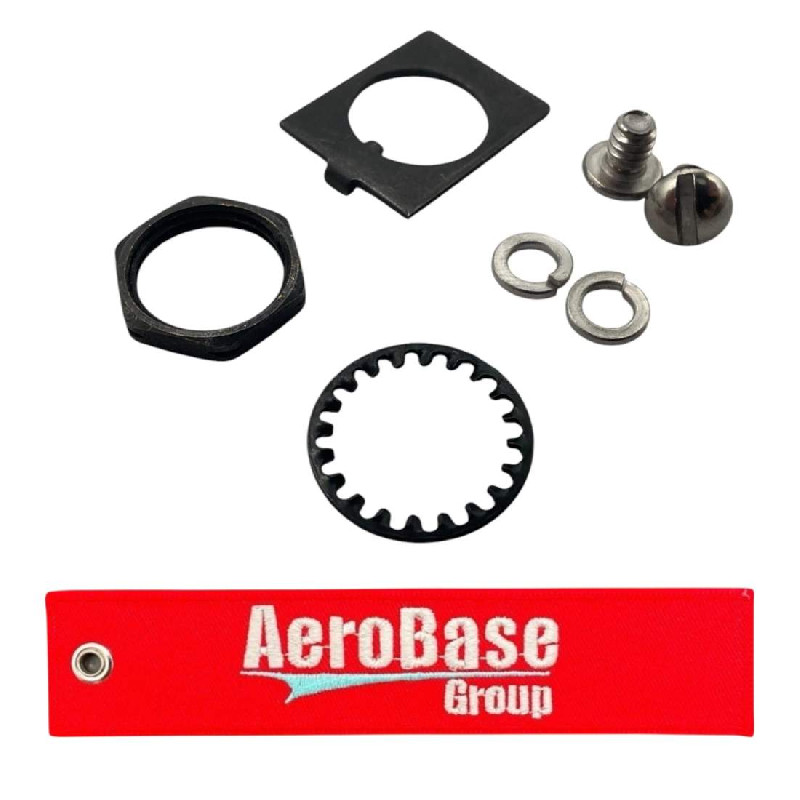

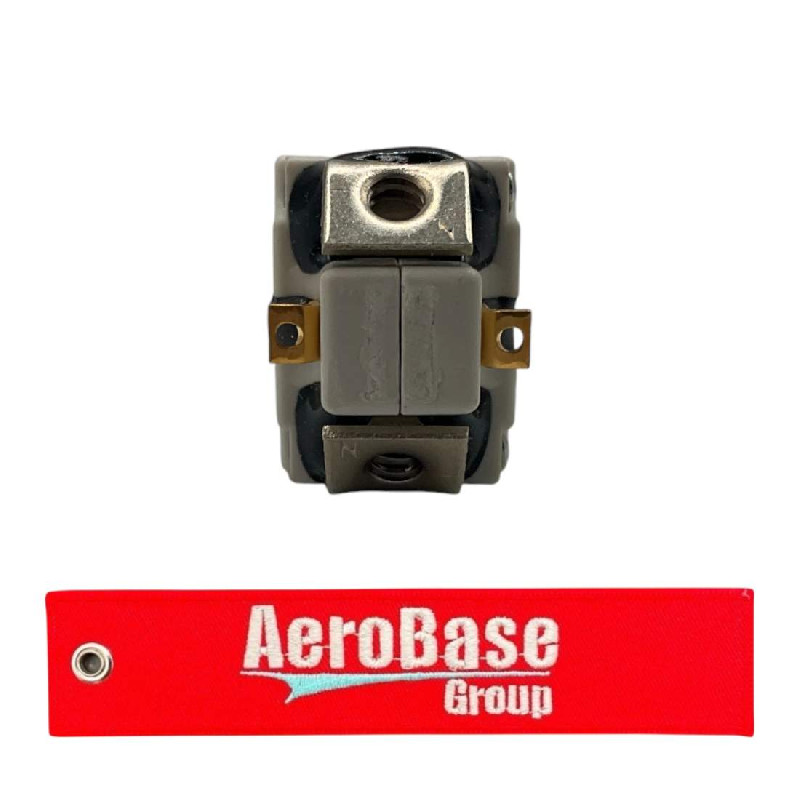

7277-1-1/2 7277-1-1/2 7277-1-1/2 7277-1-1/2 7277-1-1/2 7277-1-1/2

Product Details

Part Number or Model 7277-1-1/2
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Function Trip-reset
Actuator Position Designation At pole one
Body Length 0.750 inches nominal
Body Style Single pole type
Body Width 0.562 inches nominal
Bushing Length 0.359 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.593 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 400.0 single location
Inclosure Protection Type For Which Designed Vibration resistant and humidity resistant
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Maximum Continuous Load Current Rating Per Pole 1.5 amperes ac single location and 1.5 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2500.0 ac single location and 1000.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing w/panel seal
Mounting Surface To Terminal End Distance 1.420 inches maximum
Thread Size 0.438 inches
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac single location and 30.0 dc single location
Pole Quantity 1
Reset Method Manual
Special Features Unlimited dc interrupting capacity
Terminal Type And Quantity 2 tab with screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Trip Delay Time In Seconds Per Rated Continuous Current 2.000 minimum at 200 pct single location and 35.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 150.0 single location
