6TC37-20 Circuit Breaker

Part#: 6TC37-20 NSN: 5925-01-193-4301

About this product 6TC37-20 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

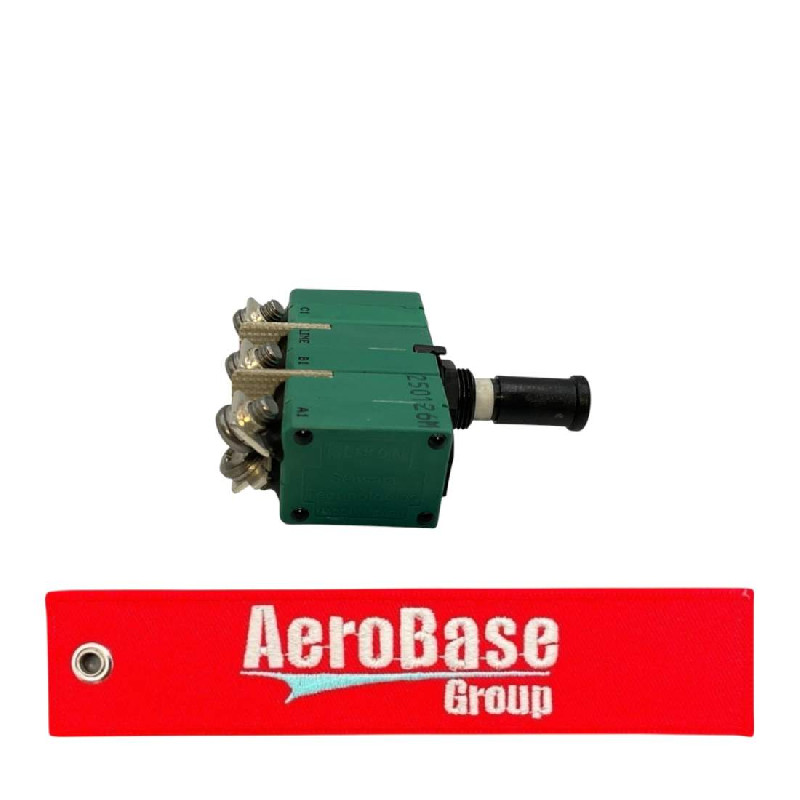

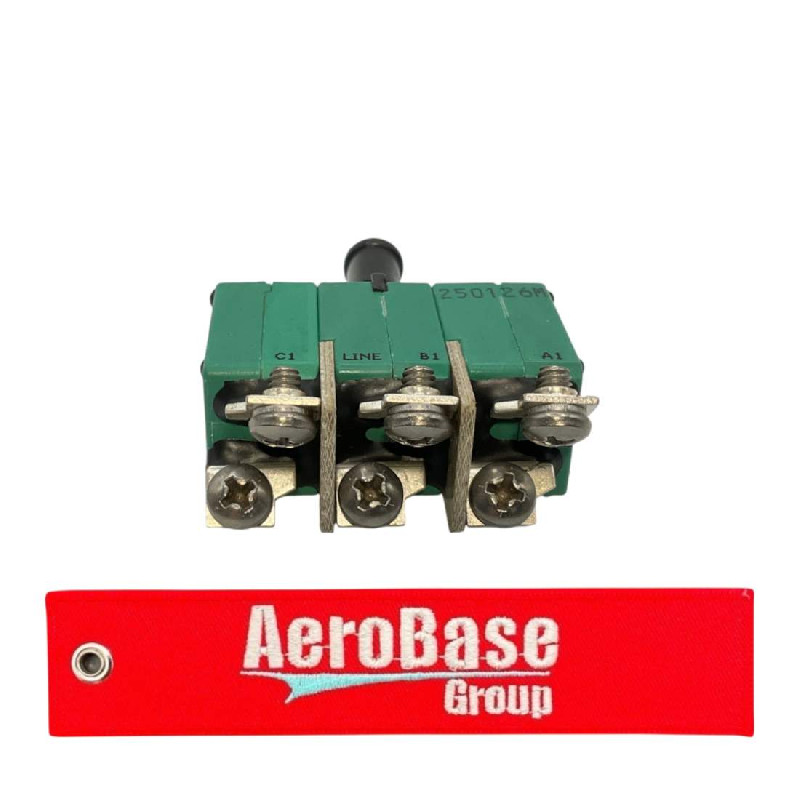

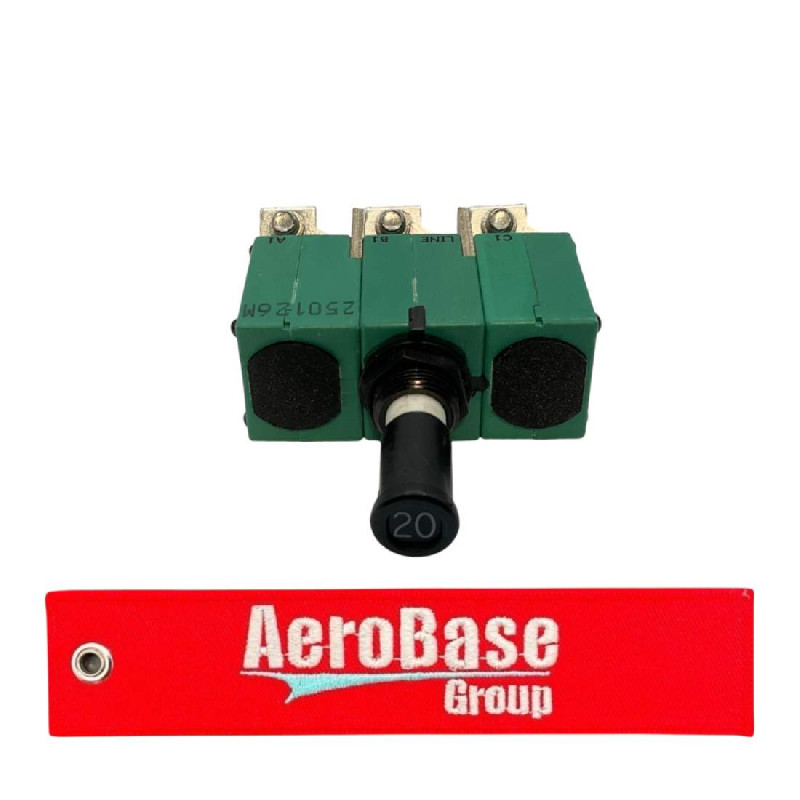

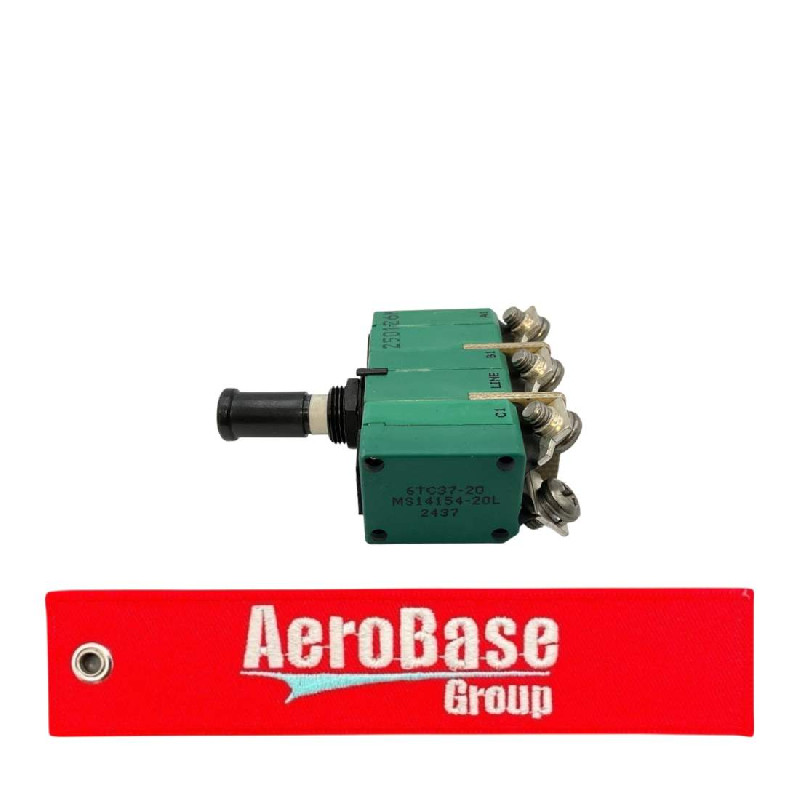

6TC37-20 6TC37-20 6TC37-20 6TC37-20

Product Details

Part Number or Model 6TC37-20
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Terminal Type And Quantity 6 tab with screw
Storage Type General purpose warehouse
Reset Method Manual
Pole Quantity 3
Operating Voltage Type And Rating Per Pole In Volts 120.0 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing w/panel seal
Maximum Interrupting Capacity Current Type And Rating Per Pole I 2500.0 ac all locations
Maximum Continuous Load Current Rating Per Pole 20.0 amperes ac all locations
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push-pull
Internal Trip Release Configuration Series trip all locations
Inclosure Protection Type For Which Designed Vibration resistant and shock resistant and sand resistant and dustproof and corrosion resistant and humidity resistant and explosion proof
Frequency In Hertz 400.0 all locations
Fragility Factor Moderately rugged
Circuit Protection Type Overcurrent all locations
Center To Center Distance Between Terminals Parallel To Width 0.802 inches nominal
Center To Center Distance Between Terminals Parallel To Length 0.704 inches nominal
Case Material Plastic
Body Width 1.100 inches maximum
Bushing Length 0.250 inches nominal
Body Style Multipole-single actuator type
Body Length 2.380 inches maximum
Body Height 1.350 inches nominal
Actuator Position Designation At pole two
Actuator Function Trip-reset
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Thread Size 0.469 inches
Trip Delay Time In Seconds Per Rated Continuous Current 4.000 minimum at 200 pct all locations and 20.000 maximum at 200 pct all locations
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal all locations
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 145.0 all locations
Unpackaged Unit Weight 110.0 grams
