NAS1097AD3-7 Solid Rivet

Part#: NAS1097AD3-7 NSN: 5320-00-861-4109

About this product NAS1097AD3-7 Solid Rivet, roughly 3015 pieces per pound. * Manufacturer certifications are shipped with your order FREE of charge

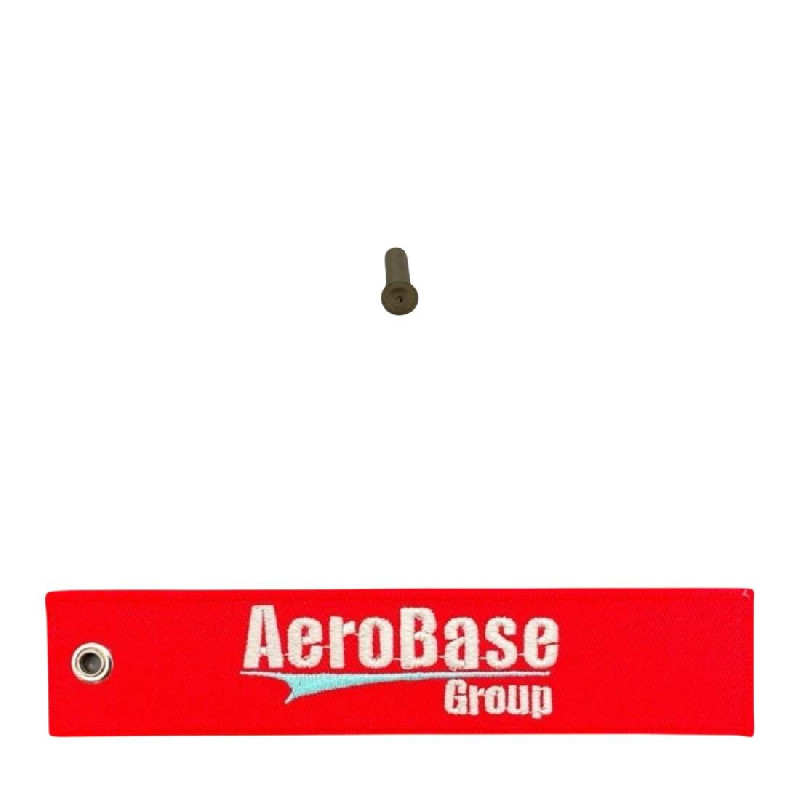

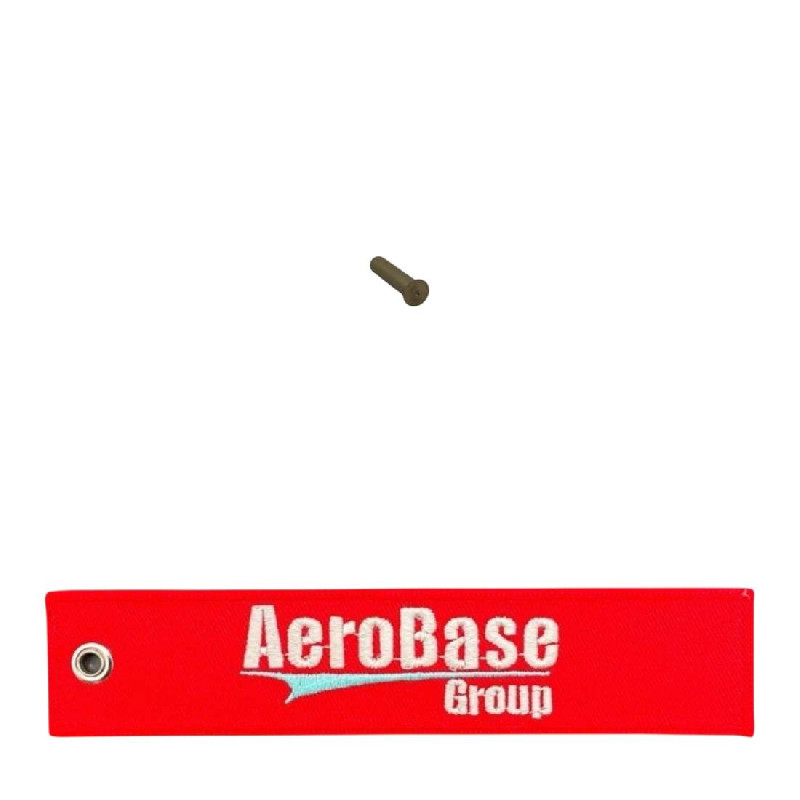

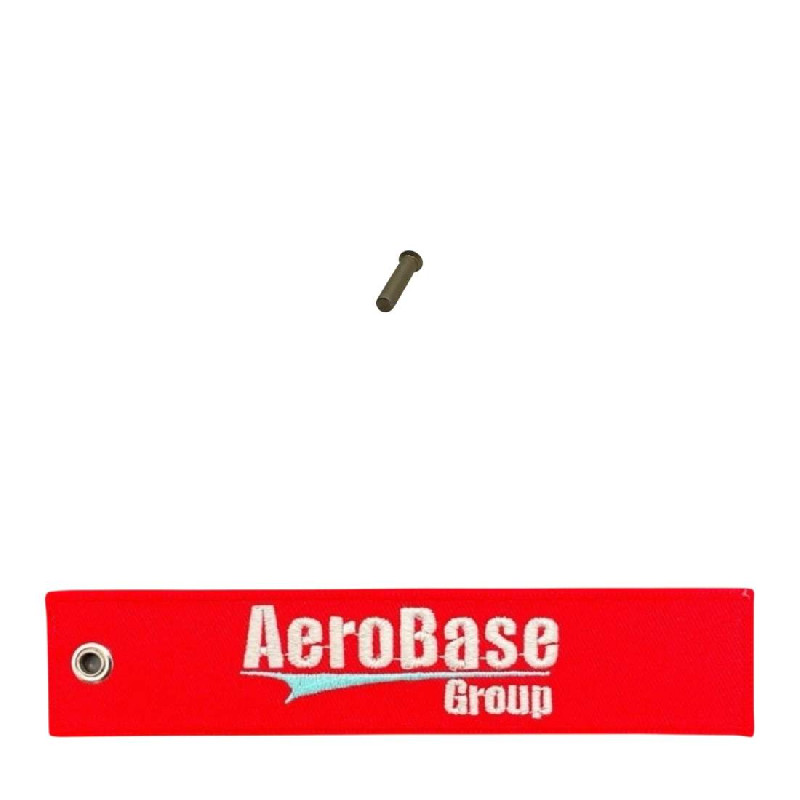

Product Images

Product Details

Part Number or Model	NAS1097AD3-7
Description	Solid Rivet
Schedule B Class	7616.10.3000
ECCN (Export Control Class)	EAR99
Countersink Angle	100 degrees nominal
Countersink Height	0.021 inches nominal
Fastener Length	0.438 inches nominal
Head Height	0.003 inches minimum and 0.005 inches maximum
Head Major Diameter	0.126 inches minimum and 0.148 inches maximum
Head Minor Diameter	0.086 nominal mils and 0.096 nominal centimeters
Head Style	Undersized oval countersunk
Material	Aluminum alloy 2117 overall
Material Specification	Qq-a-430 federal spec single material response overall
Shank Diameter	0.094 inches nominal
Shank Style	Straight
Specification Data	80205-nas1097 professional/industrial association standard
Surface Treatment	Oxide film overall
Surface Treatment Specification	Mil-c-5541 mil spec single treatment response overall

Pricing and Availability

We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
