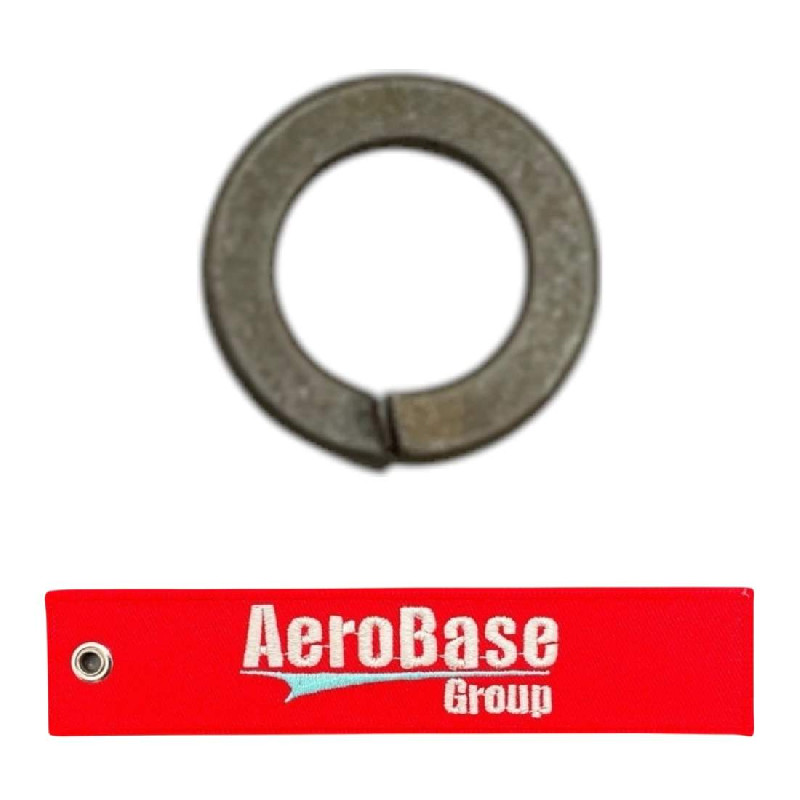

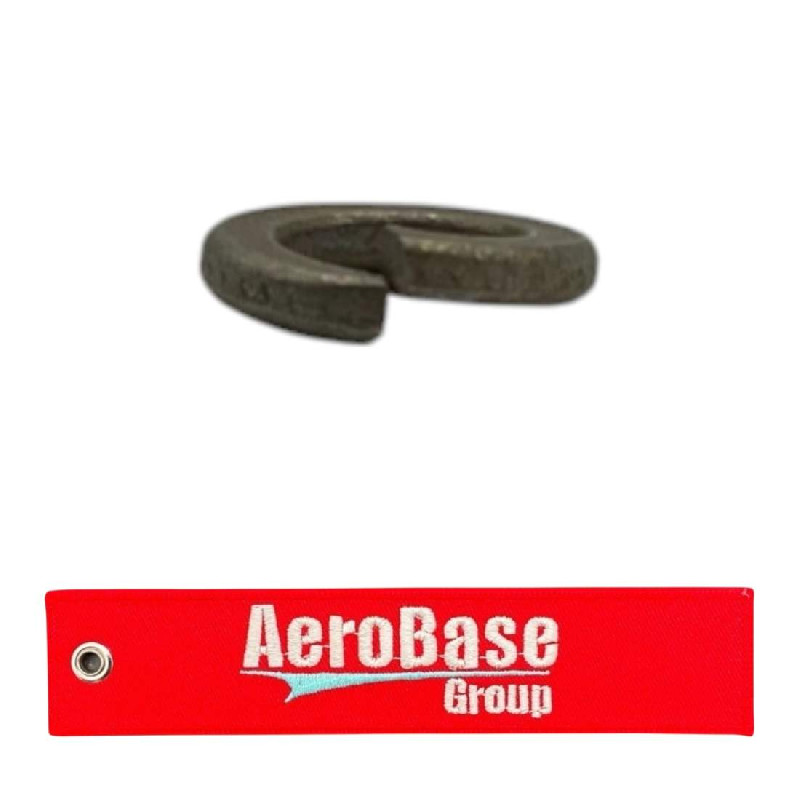

MS35338-43 Washer

Part#: MS35338-43 NSN: 5310-00-045-3296

About this product split style washer.

Product Images
MS35338-43 MS35338-43 MS35338-43 MS35338-43 MS35338-43 MS35338-43

Product Details

Part Number or Model MS35338-43
Description Washer
Schedule B Class 7318210000
ECCN (Export Control Class) 9A991.d
Surface Treatment Zinc
Style Designator Split helical-right hand
Outside Diameter 0.334 inches maximum
Material Thickness 0.047 inches minimum
Material Steel overall
Hole Diameter 0.194 inches minimum and 0.202 inches maximum
Hardness Rating 45.0 rockwell c minimum and 53.0 rockwell c maximum
Surface Treatment Specification Qq-p-416, type 2, class 3 fed spec single treatment response overall

Add to Cart

Up to quantity 2800 ships same day.
buy now $0.25
each, minimum order quantity of 100 Sold in increments of 100
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5310-00-045-3296
  • ECCN (Export Control Class)
    9A991.d
