M39029/12-151 Electrical Contact Pin

Part#: M39029/12-151 NSN: 5999-01-293-7631

About this product M39029/12-151 Electrical Contact Pin. * Manufacturer certifications are shipped with your order FREE of charge

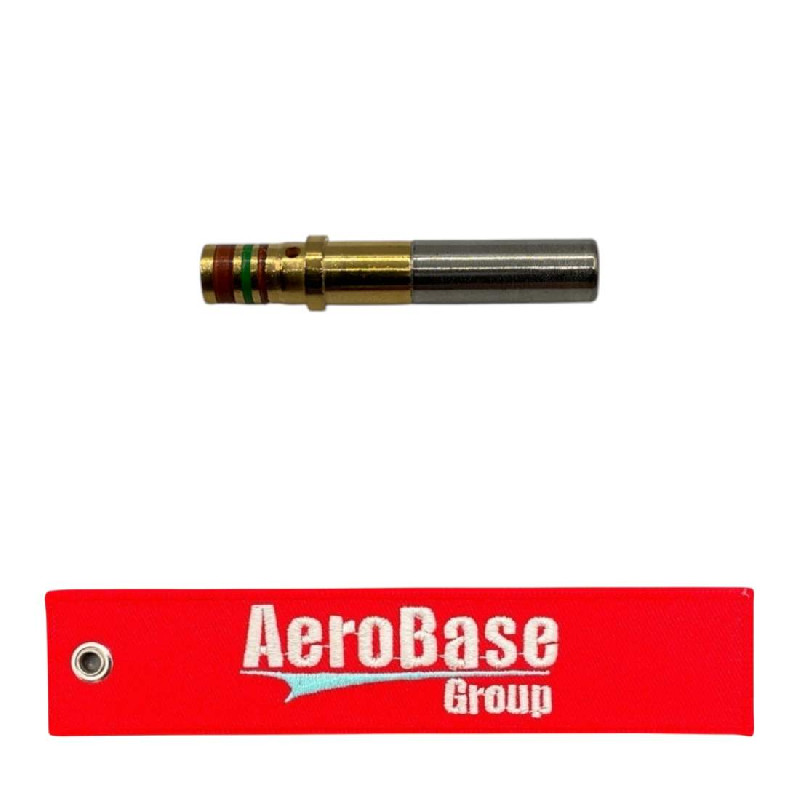

Product Images
M39029/12-151 M39029/12-151

Product Details

Part Number or Model M39029/12-151
Description Electrical Contact Pin
Schedule B Class
ECCN (Export Control Class) EAR99
Cable Entrance Diameter 0.098 inches minimum and 0.102 inches maximum
Material Copper alloy body and contact
Material Specification Mil-c-39029/12 mil spec single material response body and contact
Mounting Method Force fit
Overall Diameter 0.186 inches minimum and 0.190 inches maximum
Overall Length 0.952 inches minimum and 0.982 inches maximum
Pin Accommodation Diameter 0.158 inches minimum and 0.161 inches maximum
Pin Accommodation Length 0.468 inches nominal
Pin Diameter 0.095 inches nominal
Precious Material Gold
Precious Material And Location Body and contact surfaces gold
Precious Material And Weight 0.005 gold grains, troy
Specification Data 81349-mil-c-39029/12 government specification
Style Designator Socket contact
Surface Treatment Gold body and contact
Surface Treatment Specification Mil-g-45204 mil spec single treatment response body and contact
Terminal Type And Quantity 1 crimp end opposite contact

Add to Cart

Up to quantity 95 ships same day.
buy now $8.95
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5999-01-293-7631
  • Manufactured By
    Tri-Star Electronics
  • ECCN (Export Control Class)
    EAR99
