W58-XC4C12A-15 Circuit Breaker

Part#: W58-XC4C12A-15 NSN: 5925-01-250-1490

About this product W58-XC4C12A-15 Circuit Breaker. * Manufacturer certifications are shipped with your order FREE of charge

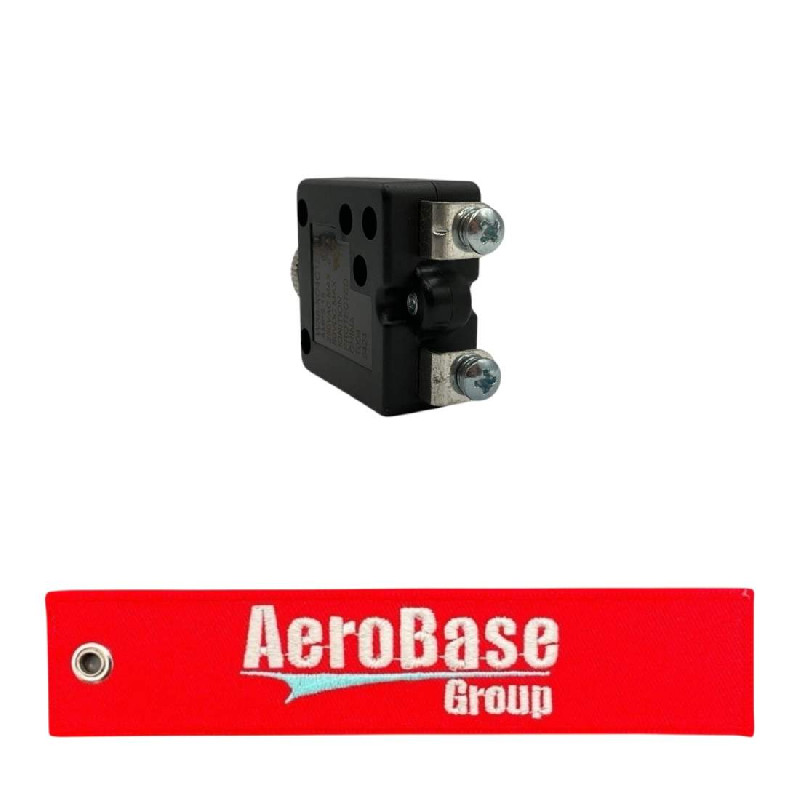

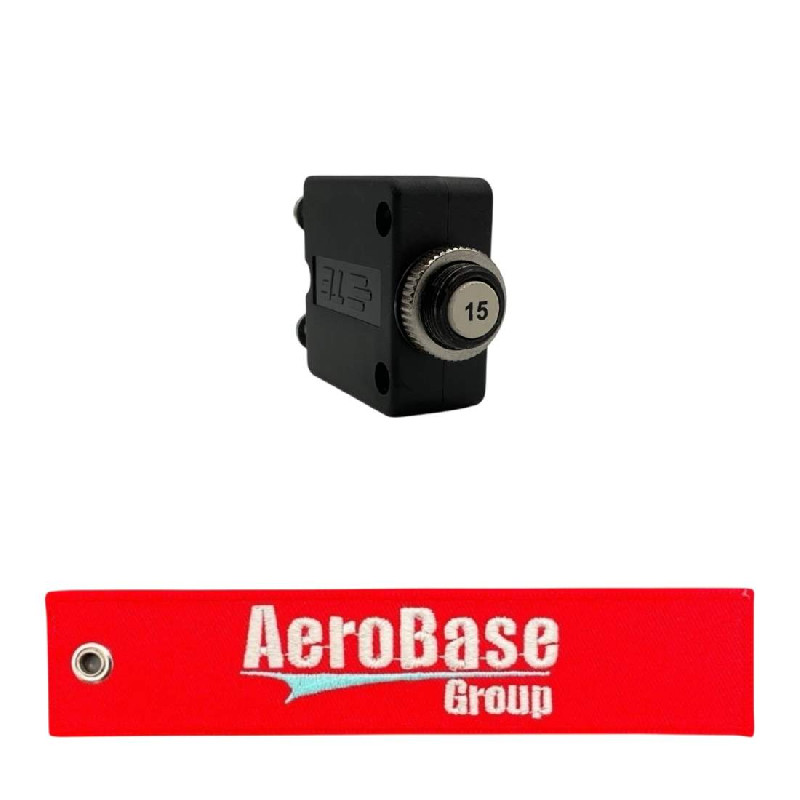

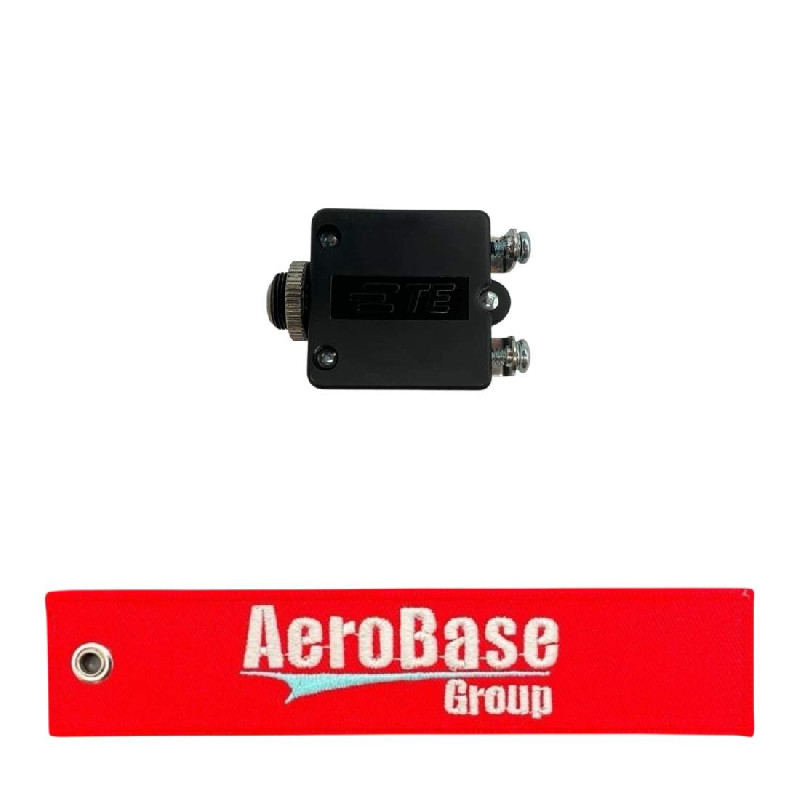

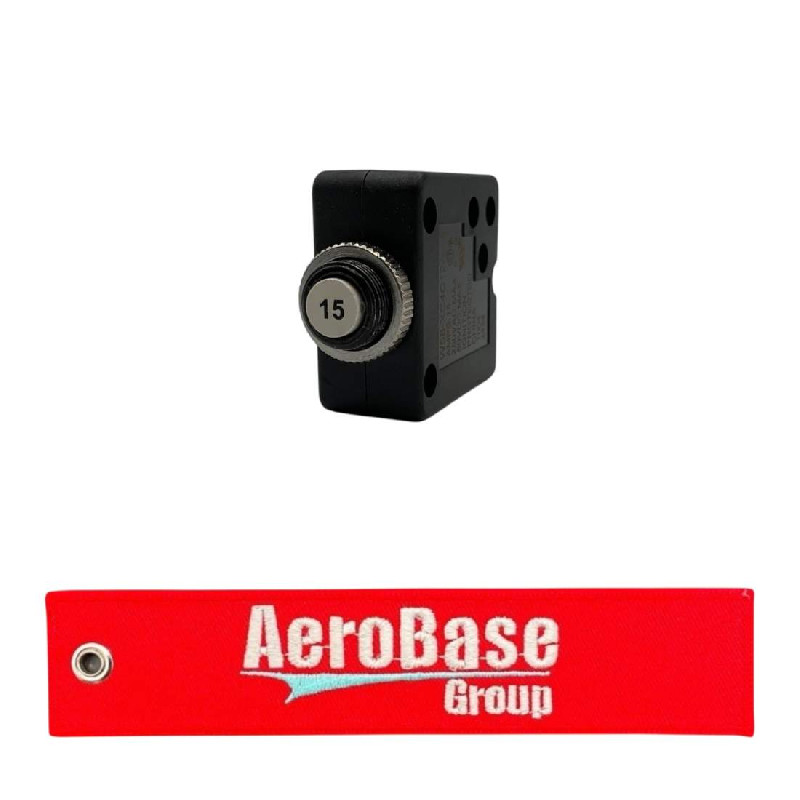

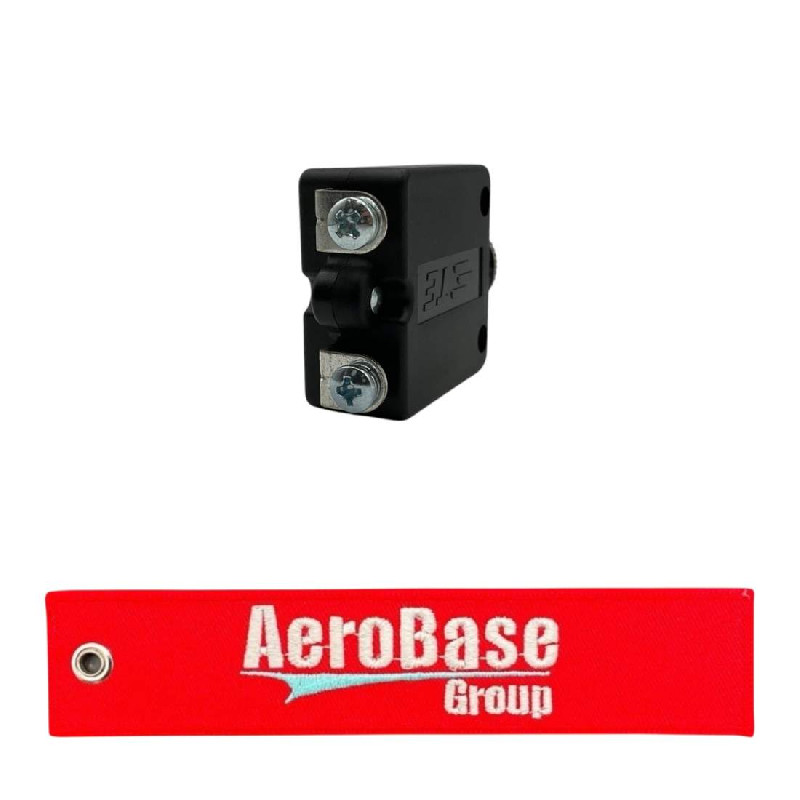

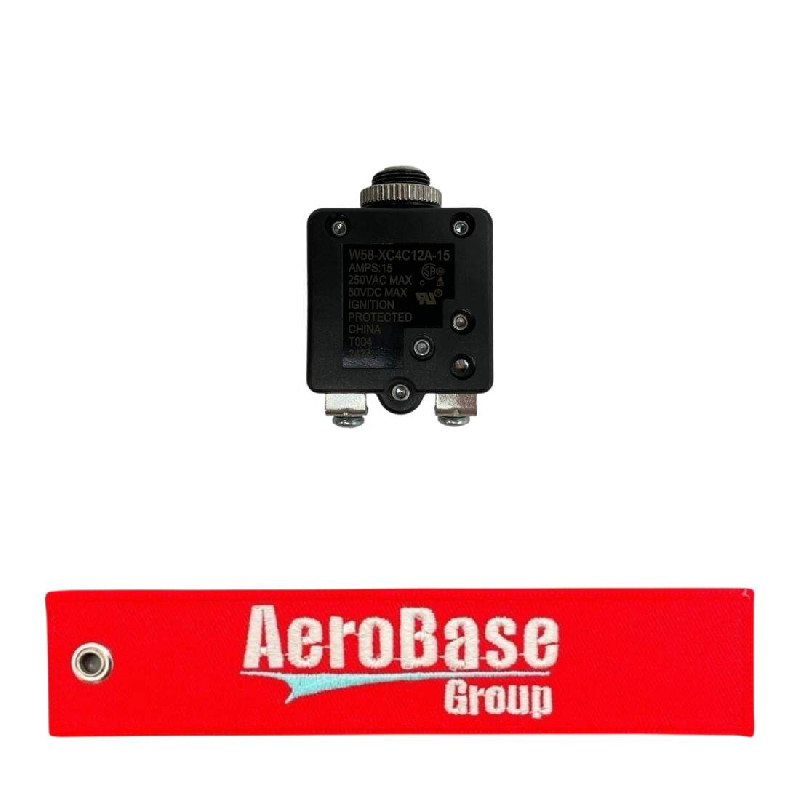

Product Images
W58-XC4C12A-15 W58-XC4C12A-15 W58-XC4C12A-15 W58-XC4C12A-15 W58-XC4C12A-15 W58-XC4C12A-15

Product Details

Part Number or Model W58-XC4C12A-15
Description Circuit Breaker
Schedule B Class 8536200040
ECCN (Export Control Class) EAR99
Actuator Function Reset
Actuator Position Designation At pole one
Arc Quenching Method Air
Body Length 1.375 inches nominal
Body Style Single pole type
Body Width 0.660 inches nominal
Bushing Length 0.300 inches nominal
Case Material Plastic
Center To Center Distance Between Terminals Parallel To Length 0.850 inches nominal
Circuit Protection Type Overcurrent single location
Fragility Factor Moderately rugged
Frequency In Hertz 60 single location
Inclosure Protection Type For Which Designed Shock resistant and vibration resistant
Internal Trip Release Configuration Series trip single location
Main Contact Tripping Mechanism Type Trip free
Manual Actuator Type And Quantity 1 push button
Maximum Continuous Load Current Rating Per Pole 15 amperes ac single location and 15 amperes dc single location
Maximum Interrupting Capacity Current Type And Rating Per Pole I 1000.0 ac single location and 2000.0 dc single location
Mounting Facility Type And Quantity 1 threaded bushing
Mounting Surface To Terminal End Distance 1.562 inches nominal
Thread Size 0.469 inches
Operating Voltage Type And Rating Per Pole In Volts 250.0 ac single location and 50.0 dc single location
Pole Quantity 1
Reset Method Manual
Storage Type General purpose warehouse
Terminal Type And Quantity 2 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Un
Trip Delay Time In Seconds Per Rated Continuous Current 6.000 minimum at 200 pct single location and 30.000 maximum at 200 pct single location
Trip Release Ambient Tempurature Rating 25.0 degree celsius nominal single location
Trip Release Characteristic Time delay single location
Trip Release Method Thermal single location
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 145 single location
Unpackaged Unit Weight 1.5 ounces

Add to Cart

Up to quantity 64 ships same day.
buy now $18.95
each, minimum order quantity of 2 Sold in increments of 2
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-250-1490
  • Manufactured By
    TE Connectivity
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • W58XC4C12A15
  • 5925012501490
  • 5925-01-250-1490
