M7928/1-18 Lug Terminal

Name: Lug Terminal
Brand: TE Connectivity
SKU: 5940010859906
Price: 1.35 USD
Availability: InStock

Part#: M7928/1-18 NSN: 5940-01-085-9906

About this product M7928/1 series terminal. * Manufacturer certifications are shipped with your order FREE of charge

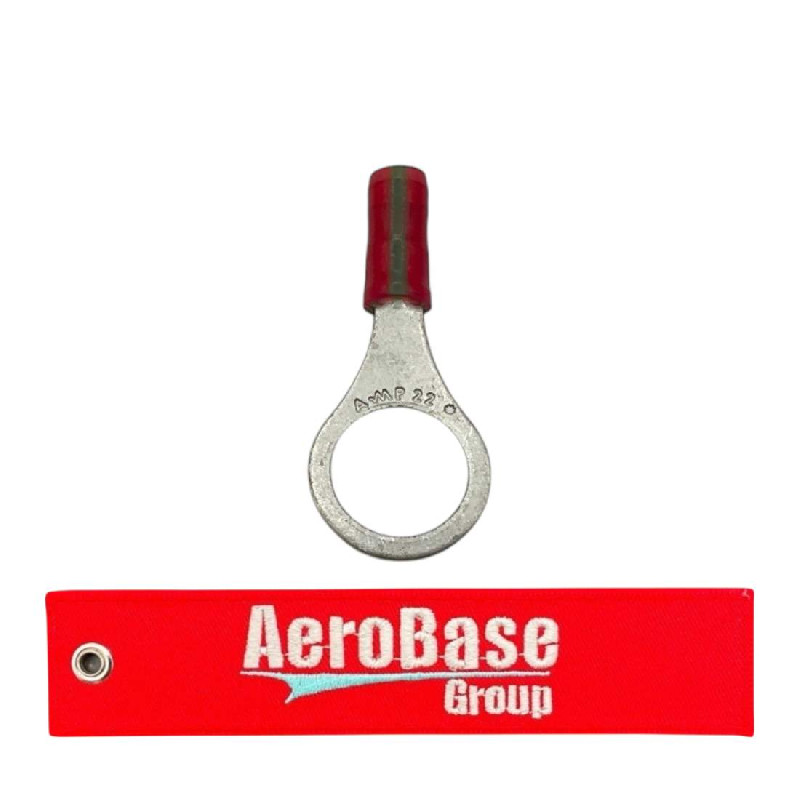

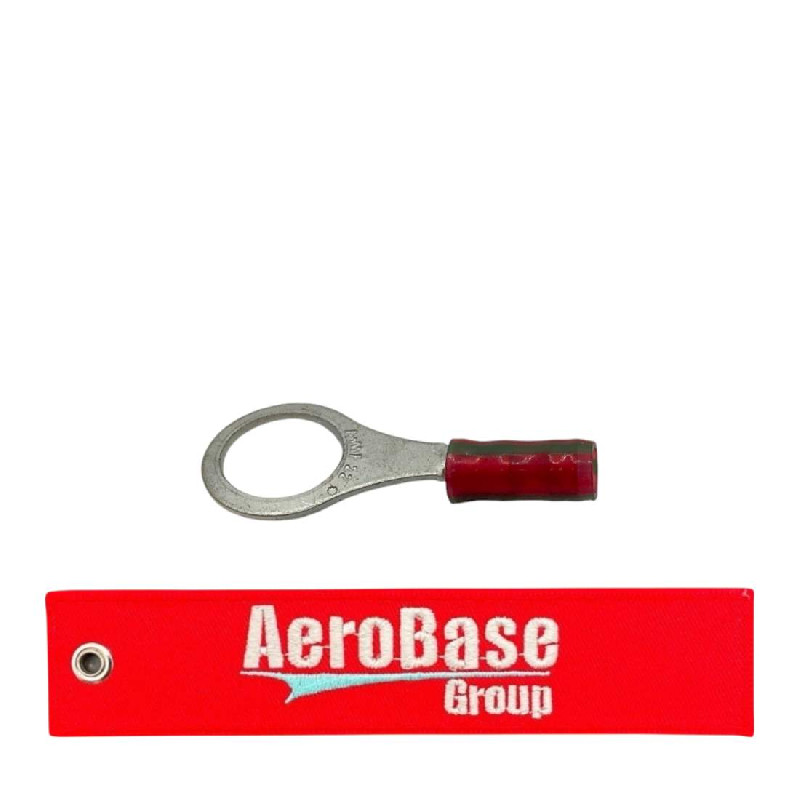

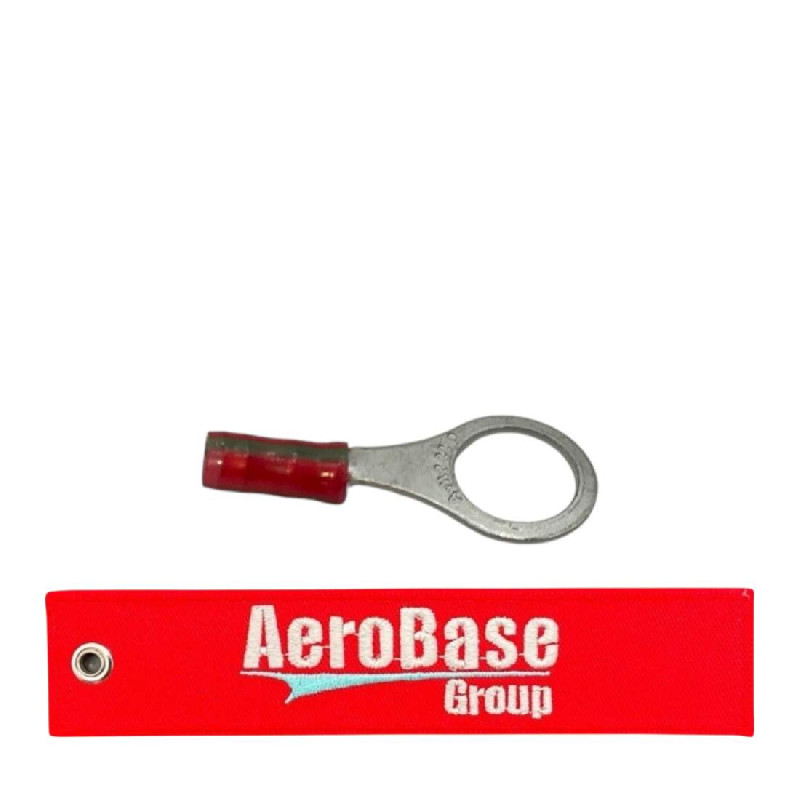

Product Images

Product Details

Part Number or Model	M7928/1-18
Description	Lug Terminal
Schedule B Class	8536904000
ECCN (Export Control Class)	EAR99
Special Features	Includes green ring or stripes on the insulation portion of the terminal
Overall Width	0.530 inches
Overall Length	1.366 inches
Mounting Tongue Width	0.53 inches
Mounting Method Style	Ring
Mounting Hole Diameter	0.385 inches
Mounting Facility Thickness	0.020 inches
Maximum Conductor Size Accommodated	22 awg size wire
Material Thickness	0.02 inches
Material	Plastic insulation
Material	Copper alloy overall except insulation
Identification Code Color	Red
Electrical Insulation Feature	Insulating sleeve
Conductor Accommodation Type	Recessed barrel single end
Basic Shape Style	Crimp
Surface Treatment	Tin overall except insulation single layer

Up to quantity 925 ships same day.

buy now $1.35

each, minimum order quantity of 25 Sold in increments of 25

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
