M85049/89-9M03 Backshell

Part#: M85049/89-9M03 NSN: 5935-01-718-2119

About this product M85049/89-9M03 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

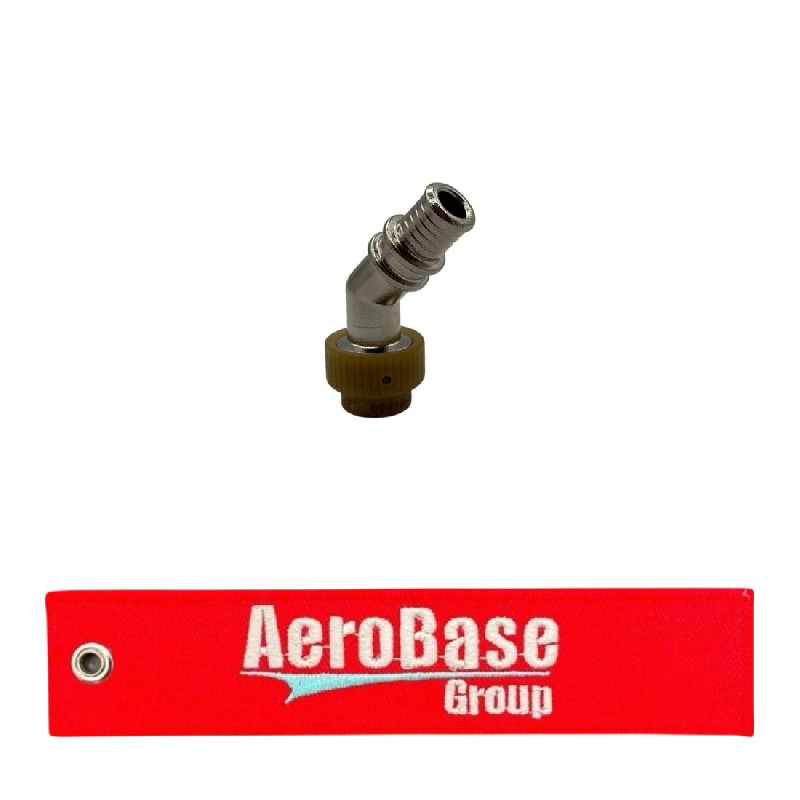

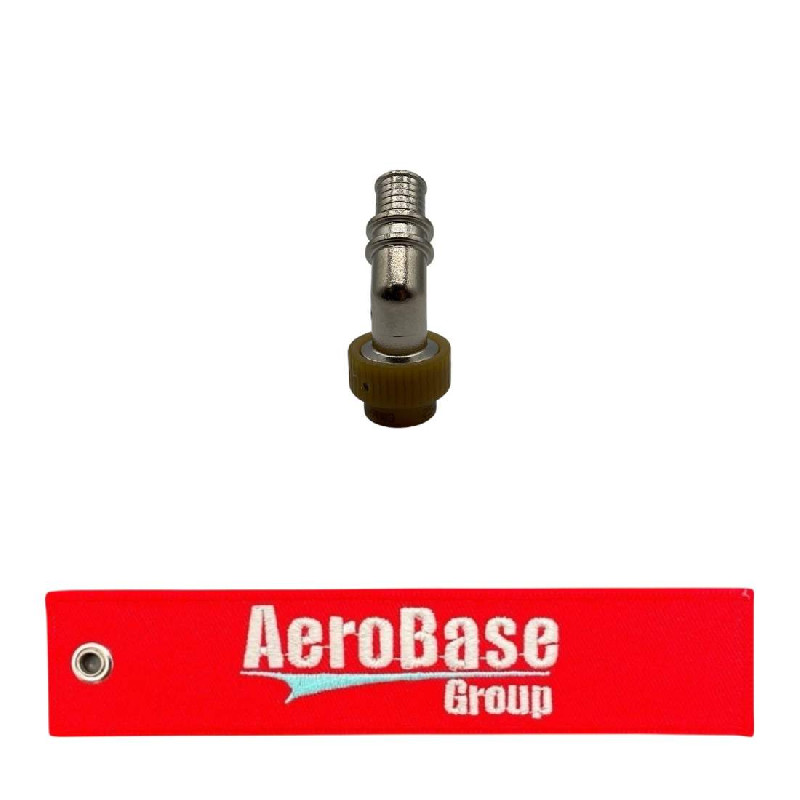

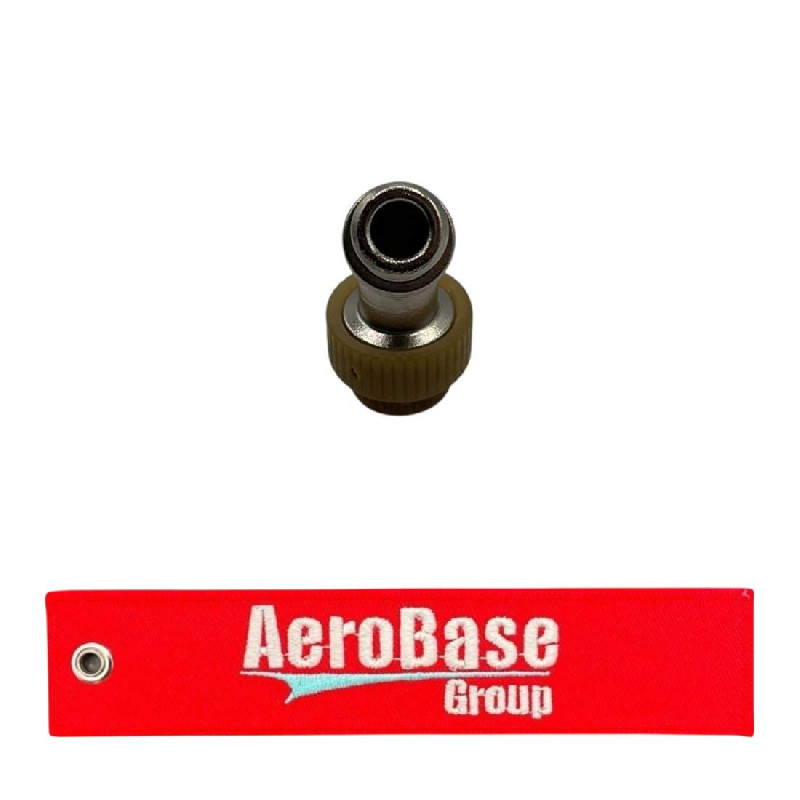

Product Images
M85049/89-9M03 M85049/89-9M03 M85049/89-9M03 M85049/89-9M03 M85049/89-9M03

Product Details

Part Number or Model M85049/89-9M03
Description Backshell
Schedule B Class 8538908180
ECCN (Export Control Class) EAR99
Body Angle In Degrees 45.0
Cable Opening Diameter 0.240 inches minimum and 0.260 inches maximum
Cable Opening Length 0.395 inches nominal
Cable Opening Quantity 1
Distance From Centerline To Cable End 1.16 inches nominal
Environmental Protection Submersible
Features Provided Electromagnetic interference shielding
Furnished Items Nut and shield and o ring
Mounting Facility Type And Quantity 1 nut(s) and 1 threaded coupling
Overall Diameter 0.858 inches maximum
Overall Height 2.218 inches nominal
Overall Length 2.218 inches nominal
Part Name Assigned By Controlling Agency Connector electrical, backshell
Seal Type O-ring
Special Features Self-locking; shield band termination; shrink sleeve accommodation
Style Designator Angle type
Surface Treatment Nickel

Add to Cart

Up to quantity 5 ships same day.
buy now $124.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-718-2119
  • Package Weight (oz)
    0.544
  • Manufactured By
    SUNBANK
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M85049899M03
  • 5935017182119
  • 5935-01-718-2119
