NAS1130-04L15D Screw Thread Insert

Part#: NAS1130-04L15D NSN: 5325-01-429-2032

About this product NAS1130-04L15D aerospace-grade, tangless screw-locking wire thread insert. * Manufacturer certifications are shipped with your order FREE of charge

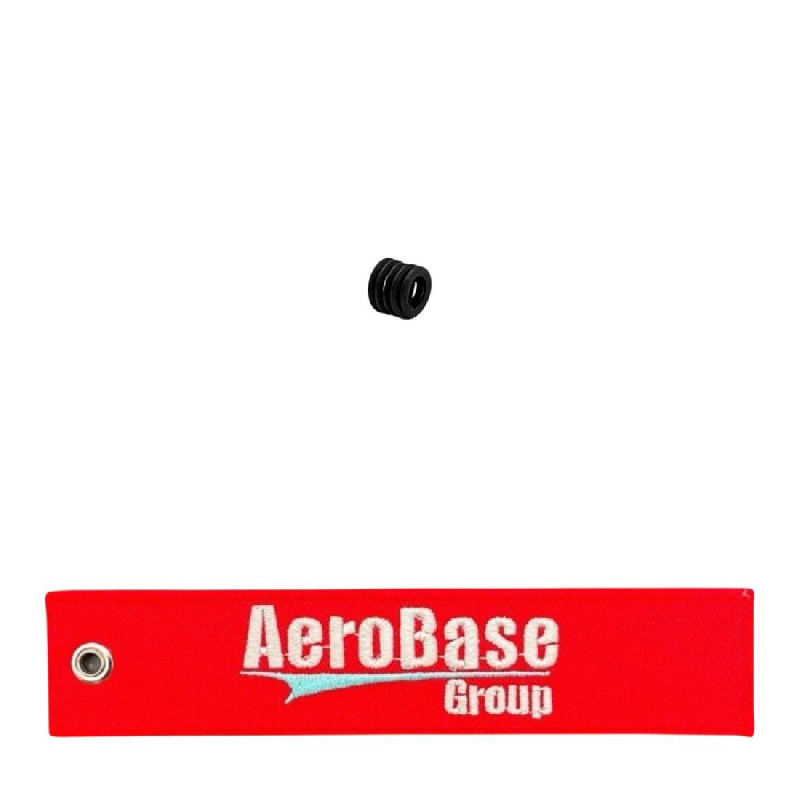

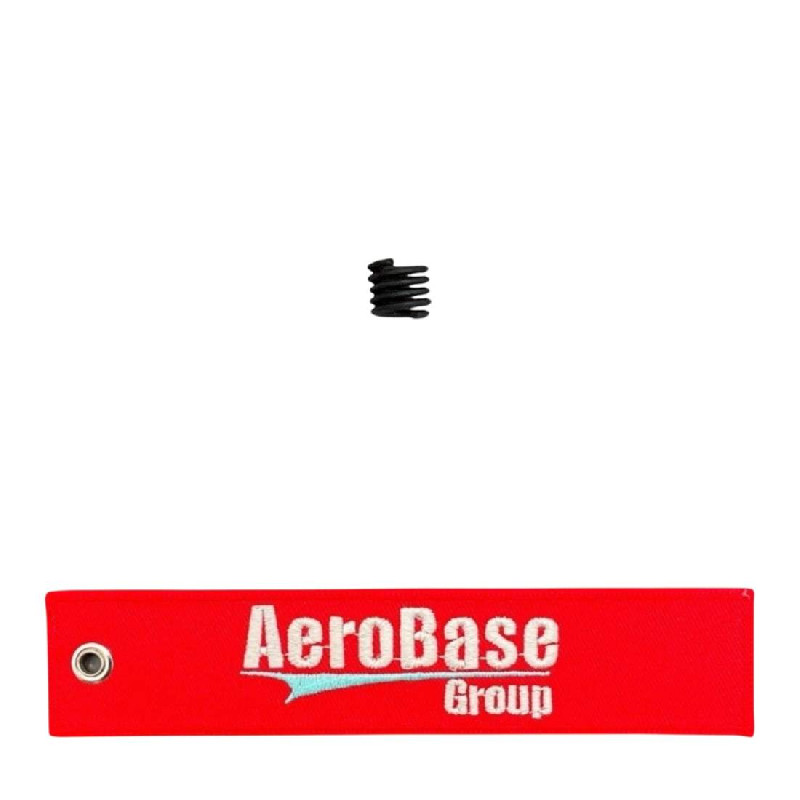

Product Images
NAS1130-04L15D NAS1130-04L15D NAS1130-04L15D

Product Details

Part Number or Model NAS1130-04L15D
Description Screw Thread Insert
Schedule B Class 7318.19.0000
ECCN (Export Control Class) EAR99
Surface Treatment Specification Mil-l-46010 type 1 mil spec single treatment response overall
Style Designator Coil
Surface Treatment Lubricant overall
Material Specification Ams 7245 assn std single material response overall
Material Steel comp 304 overall
Length 0.168 inches nominal
Insert Size 0.144 in. min and 0.159 in. max diameter
Features Provided Self-locking
Thread Class 2b
Thread Direction Right-hand
Thread Length 0.168 inches nominal
Thread Qty Per Inch (tpi) 40
Thread Series Designator Unc
Thread Size 0.112 inches
Thread Size #4-40 UNC
Design Tangless
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5325-01-429-2032
  • Manufactured By
    STANLEY
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5325-01-429-2032
  • 5325014292032
  • NAS113004L15D
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
