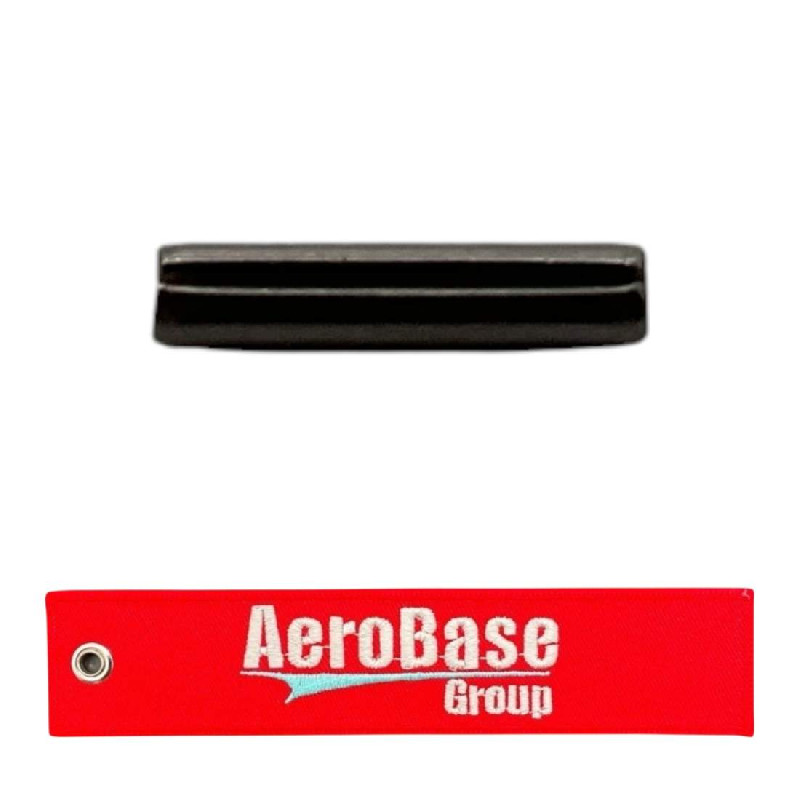

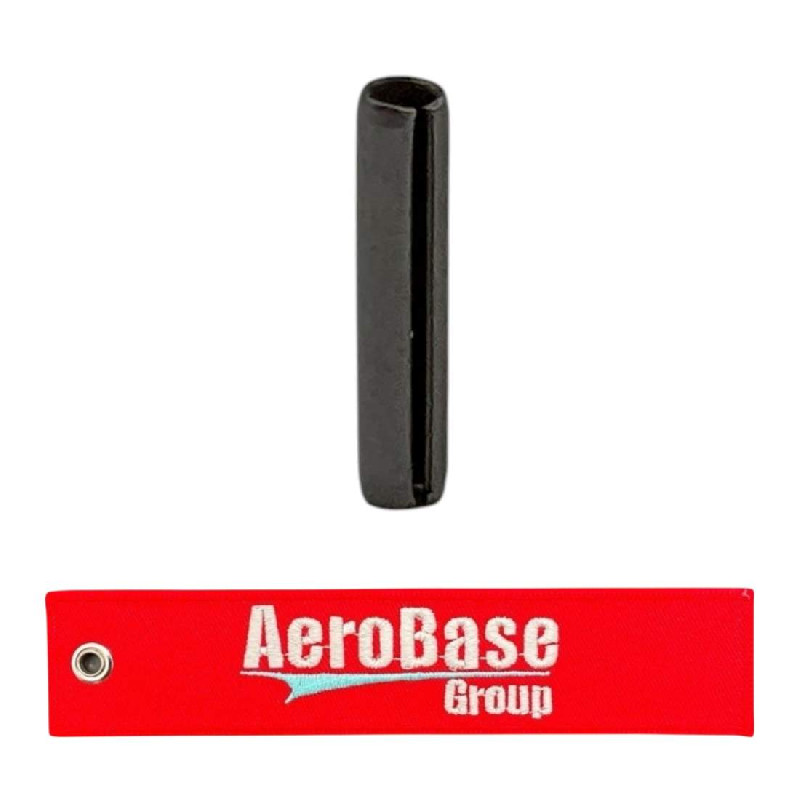

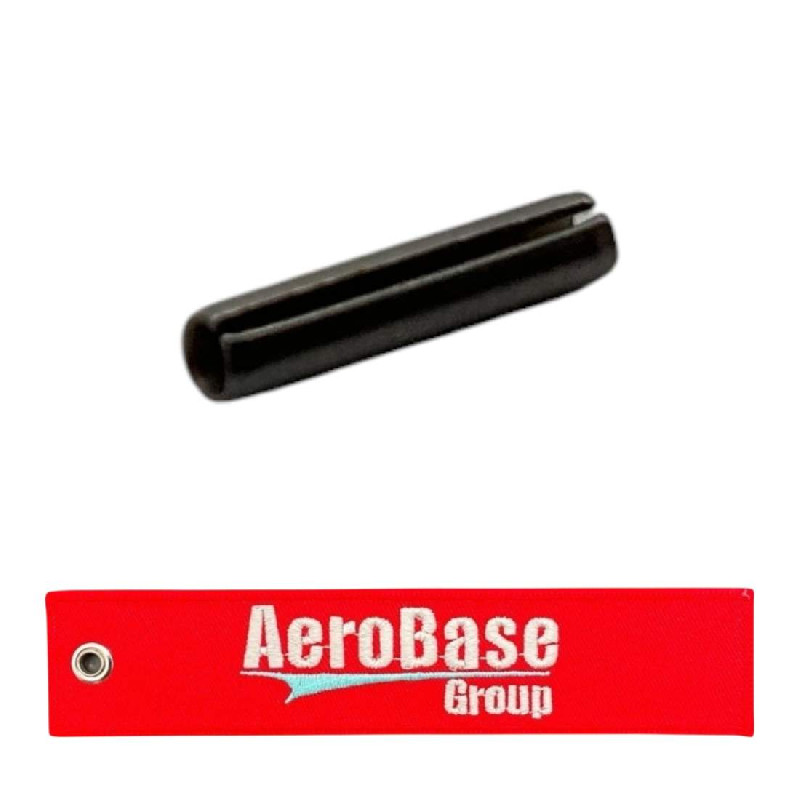

MS16562-191 Tubular Pin

Name: Slotted Pin
Brand: Spirol
Price: 0.35 USD
Availability: InStock

Part#: MS16562-191

About this product Tubular, slotted, spring. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS16562-191
Description	Slotted Pin
Schedule B Class	7318240000
ECCN (Export Control Class)	9A991.d
Surface Finish	80.0 microinches outside diameter
Surface Treatment	Passivate overall
Style Designator	Slotted
Shear Strength	425 double pound
Overall Length	0.297 inches minimum and 0.327 inches maximum
Material Thickness	0.012 inches nominal
Material Specification	66 federal standard all material responses overall
Material	Steel comp
Hardness Rating	43 rockwell c minimum overall and 52 rockwell c maximum overall
Diameter	0.066 inches minimum and 0.069 inches maximum
Surface Treatment Specification	Astm a380 assn std single treatment response overall

Up to quantity 800 ships same day.

buy now $0.35

each, minimum order quantity of 100 Sold in increments of 100
