SPI Connects MS3116F14-5S Connector

Part#: MS3116F14-5S

About this product MS3116F14-5S highly durable, military-standard (MIL-DTL-26482 Series I) circular connector plug. * Manufacturer certifications are shipped with your order FREE of charge

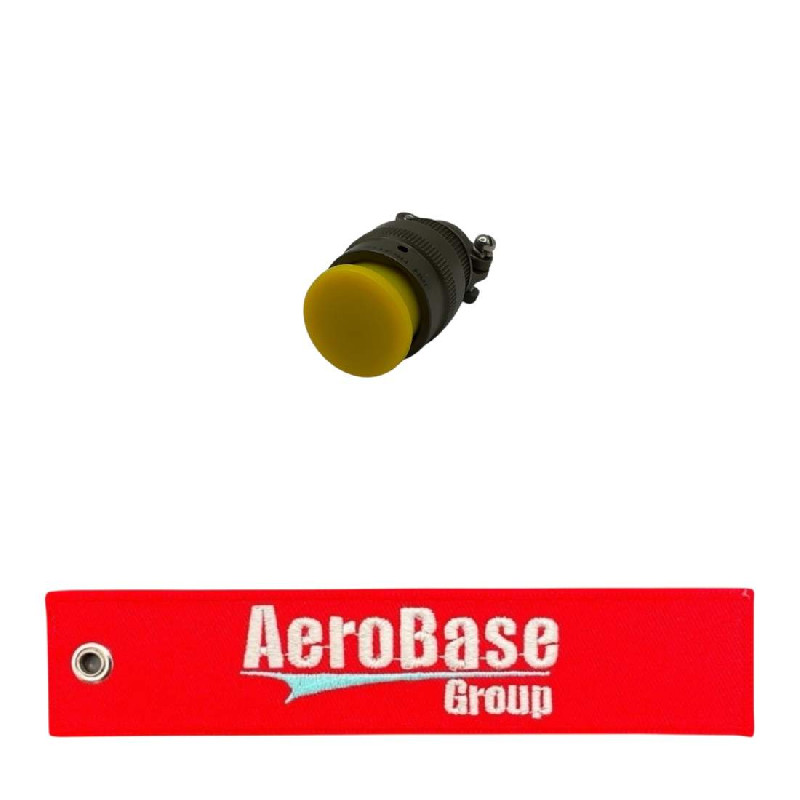

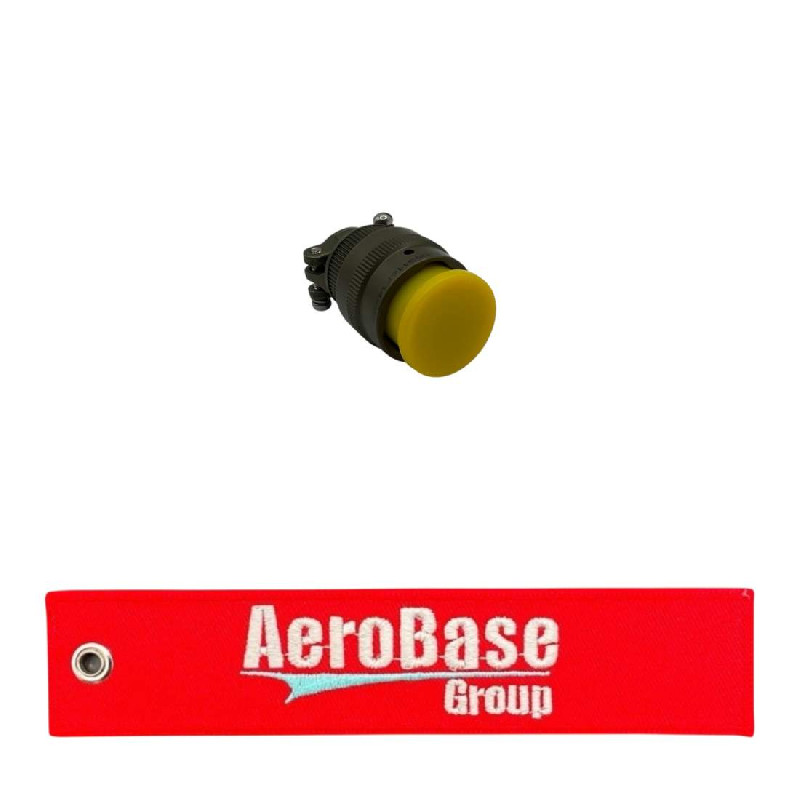

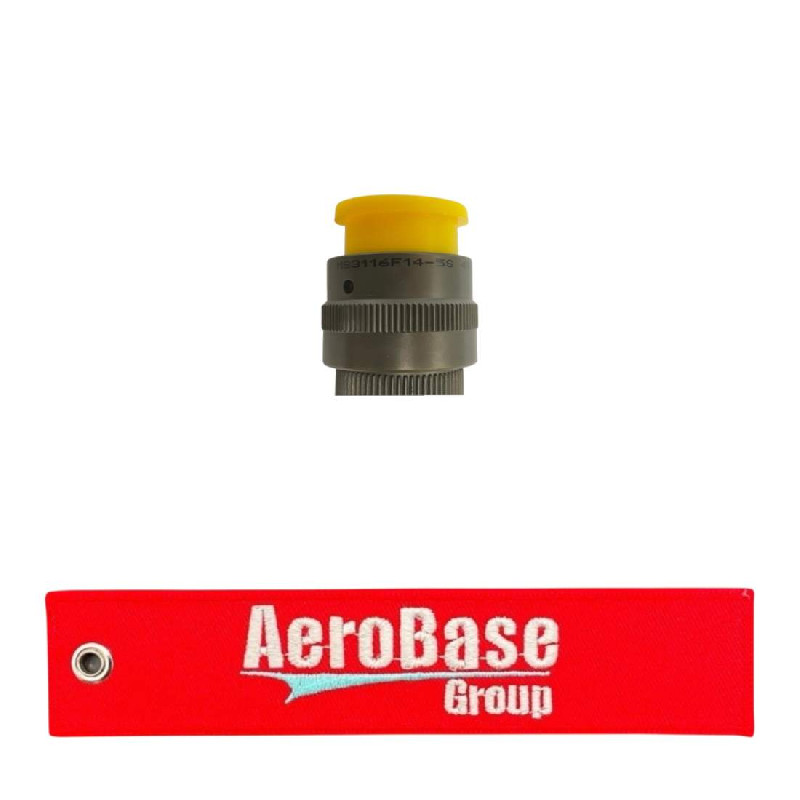

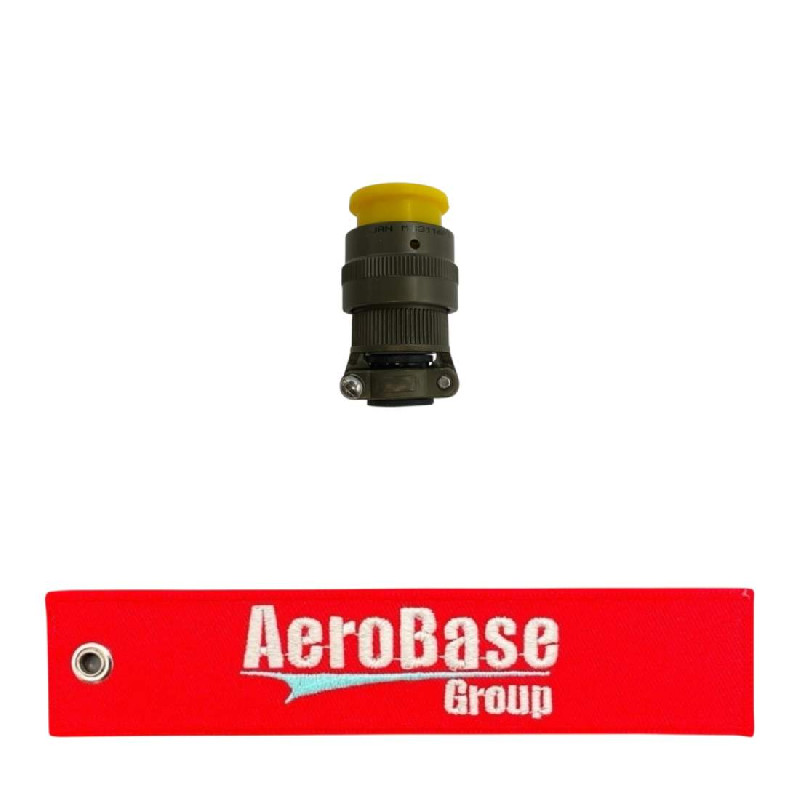

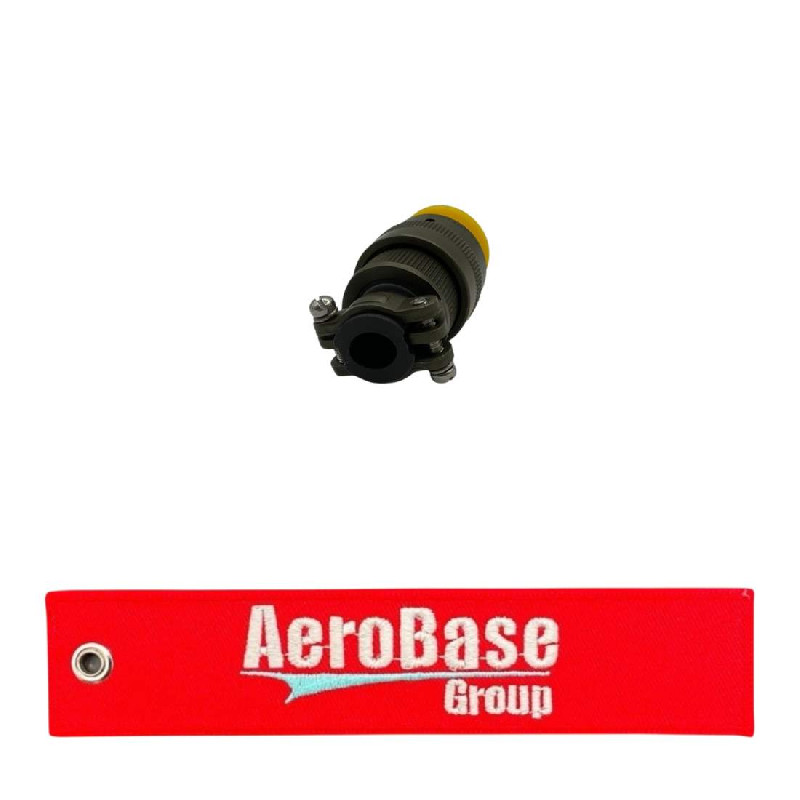

Product Images
MS3116F14-5S MS3116F14-5S MS3116F14-5S MS3116F14-5S MS3116F14-5S

Product Details

Part Number or Model MS3116F14-5S
Description Connector
Schedule B Class 8536.69.5050
ECCN (Export Control Class) EAR99
Coupling Style Quick-mating bayonet lock system
Termination High-reliability solder cup connections
Electrical Ratings Supports a 13A current rating per contact and an operating voltage up to 1,000 VAC / 1,400 VDC
Material & Finish Constructed from an aluminum alloy body with an olive drab chromate over cadmium finish for high corrosion resistance
Temperature Limits Engineered to withstand extreme operating windows from -55 C up to 125 C

Add to Cart

Up to quantity 25 ships same day.
buy now $47.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • Manufactured By
    SPI Connects
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS3116F145S
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
