Several MS25226-2-12 Conductor Bus

Name: Conductor Bus
Brand: Several
SKU: 6150008054907
Price: 22.50 USD
Availability: InStock

Part#: MS25226-2-12 NSN: 6150-00-805-4907

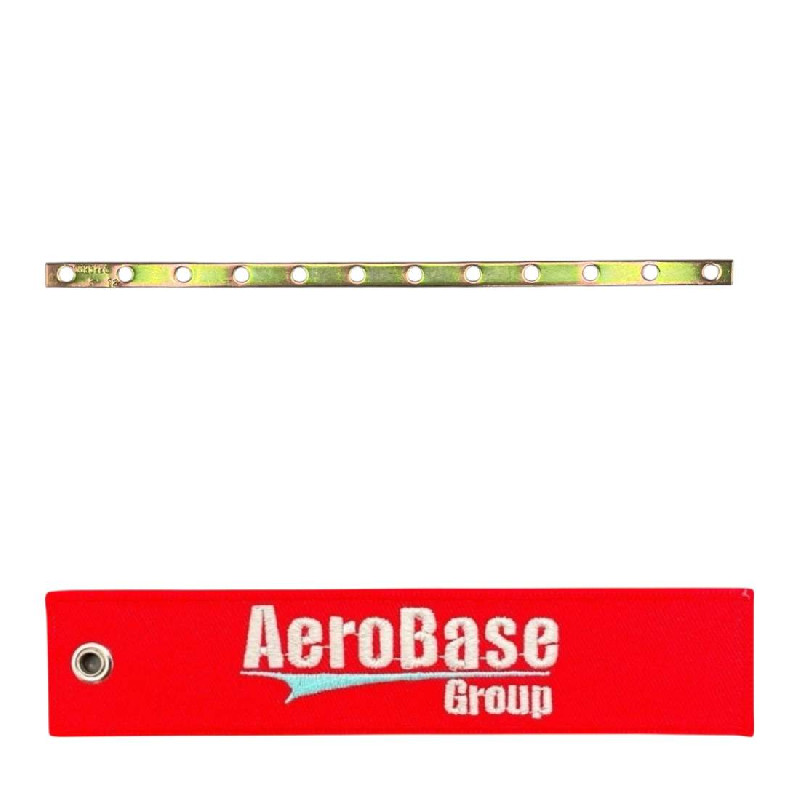

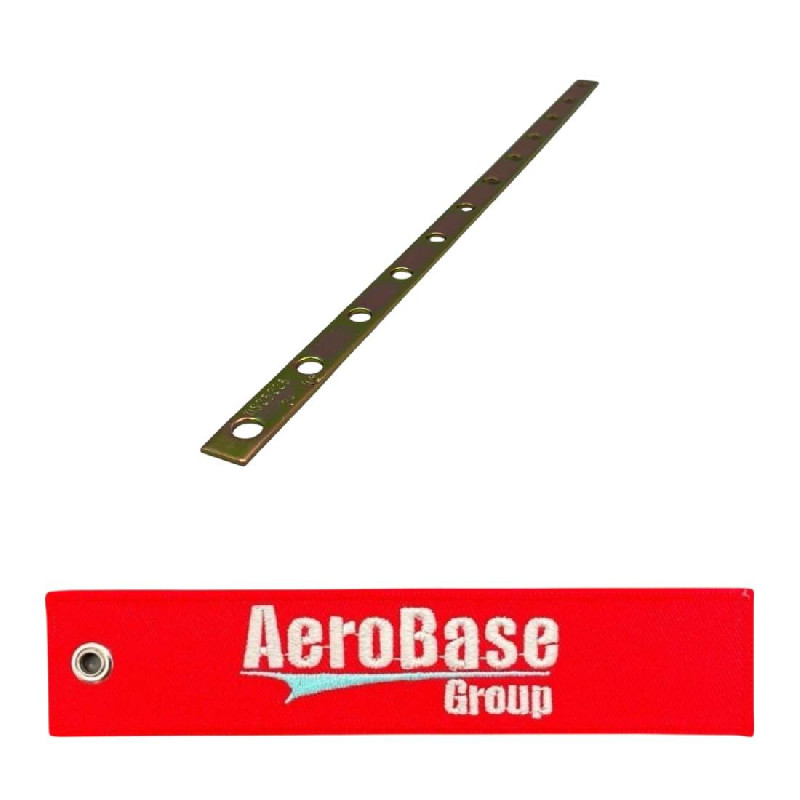

About this product MS25226-2 conductor bus with 12 holes. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	MS25226-2-12
Description	Conductor Bus
Schedule B Class	8536.90.4000
ECCN (Export Control Class)	EAR99
Surface Treatment Specification	Qq-p-416, type 2, class 3 federal spec single treatment response
Surface Treatment	Cadmium
Overall Length	6.972 inches nominal
Mounting Configuration	12 0.147 inch diameter holes 0.594 in. center to center
Material Specification	Qq-c-502 federal spec single material response or qq-c-576 fed spec single material response
Material	Copper
Cross-sectional Width	0.25 inches nominal
Cross-sectional Height	0.032 inches nominal
Construction	Solid
Body Cross-sectional Shape	Rectangular with edge radius

Add to Cart

Up to quantity 46 ships same day.

buy now $22.50

each, minimum order quantity of 2 Sold in increments of 2

Request a quote Call for questions and assistance
+1 (321) 802-5889

NSN (National stock number)
6150-00-805-4907
Package Weight (oz)
0.672
Manufactured By
Several
ECCN (Export Control Class)
EAR99

Alternate(s)

6150-00-805-4907
6150008054907
MS252262-12
MS25226212

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
