MS25226-10A-8 Conductor Bus

Name: Conductor Bus
Brand: SEASTROM
SKU: 6150011146815
Price: 9.50 USD
Availability: InStock

Part#: MS25226-10A-8 NSN: 6150-01-114-6815

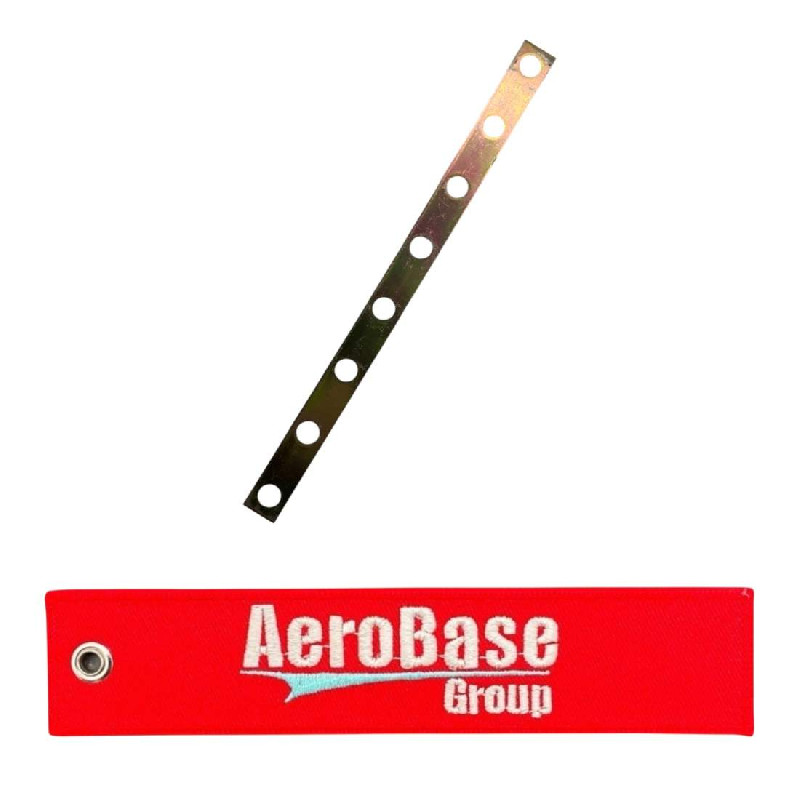

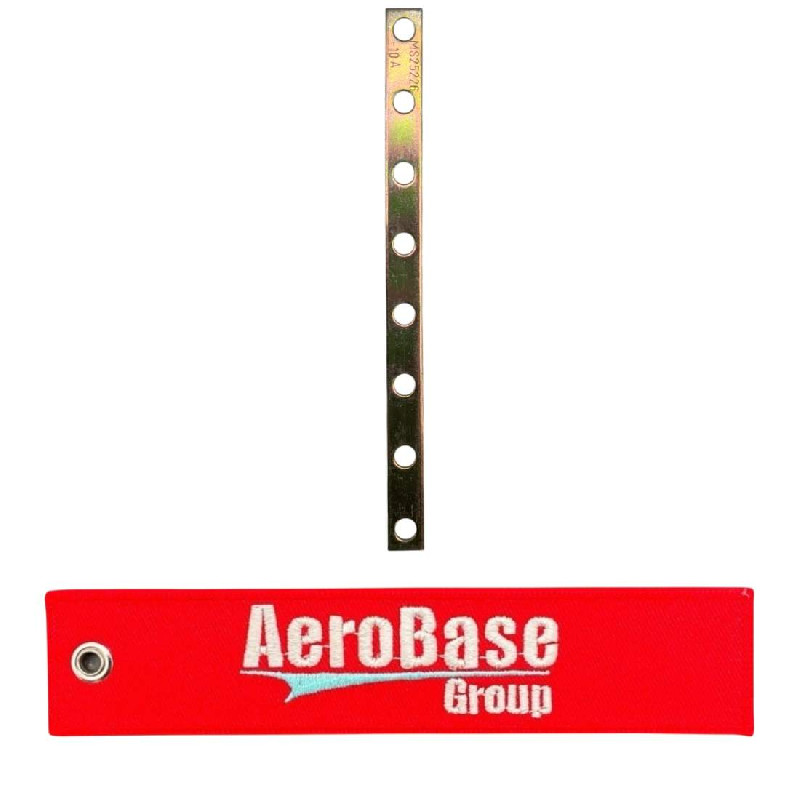

About this product MS25226-10 conductor bus with 8 holes. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model	MS25226-10A-8
Description	Conductor Bus
Schedule B Class	8543909000
ECCN (Export Control Class)	EAR99
Overall Length	5.688 inches nominal
Surface Treatment	Cadmium
Mounting Configuration	Eight 0.174 in. dia holes 0.750 in. center to center
Surface Treatment Specification	Qq-p-416, type 2, class 3 fed spec single treatment response
Material Specification	Qq-c-502 fed spec single material response or qq-c-576 fed spec single material response
Material	Copper
Cross-sectional Width	0.350 inches nominal
Cross-sectional Height	0.051 inches nominal
Construction	Solid
Body Cross-sectional Shape	Rectangular with edge radius

Up to quantity 80 ships same day.

buy now $9.50

each, minimum order quantity of 5 Sold in increments of 5

Request a quote Call for questions and assistance
