PURITAS PMP10111 Cargo Tie Down Ring

Name: Cargo Tie Down Ring
Brand: PURITAS
SKU: 1670002942954
Price: 62.50 USD
Availability: InStock

Part#: PMP10111 NSN: 1670-00-294-2954

About this product PMP10111 is a Puritas Metal Products heavy-duty cargo tie-down ring assembly rated for a 10,000-lb working capacity. Manufactured from 4130 steel, the ring-and-stud assembly features a 1.125-12 UNF right-hand threaded stud and is designed for military, aerospace and cargo-restraint applications. PMP10111 is directly associated with NSN 5306-01-199-3400 as a ring bolt and is also referenced in cargo tie-down applications under NSN 1670-00-294-2954. * Manufacturer certifications are shipped with your order FREE of charge

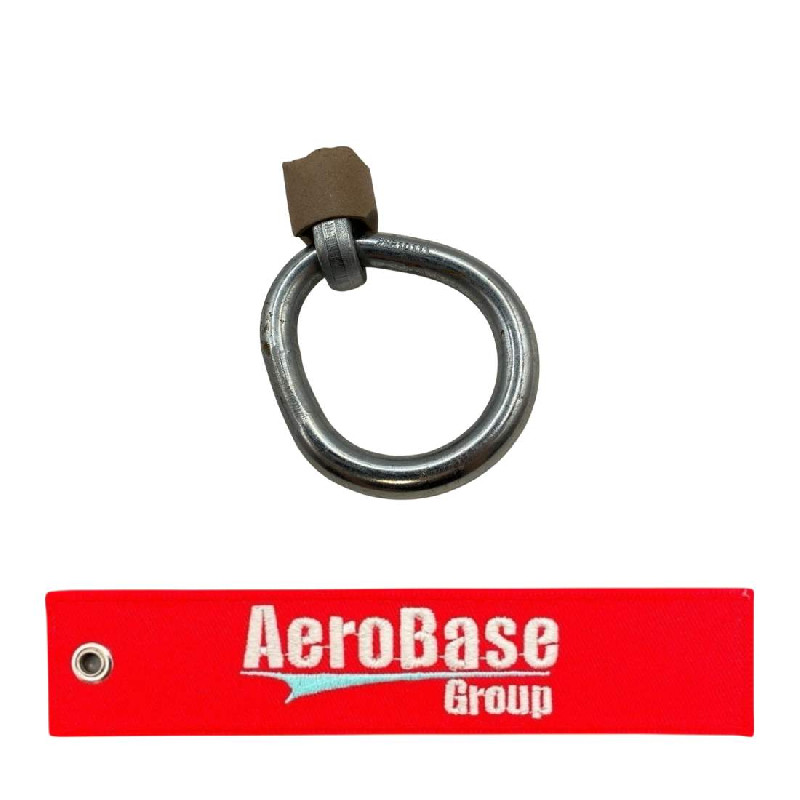

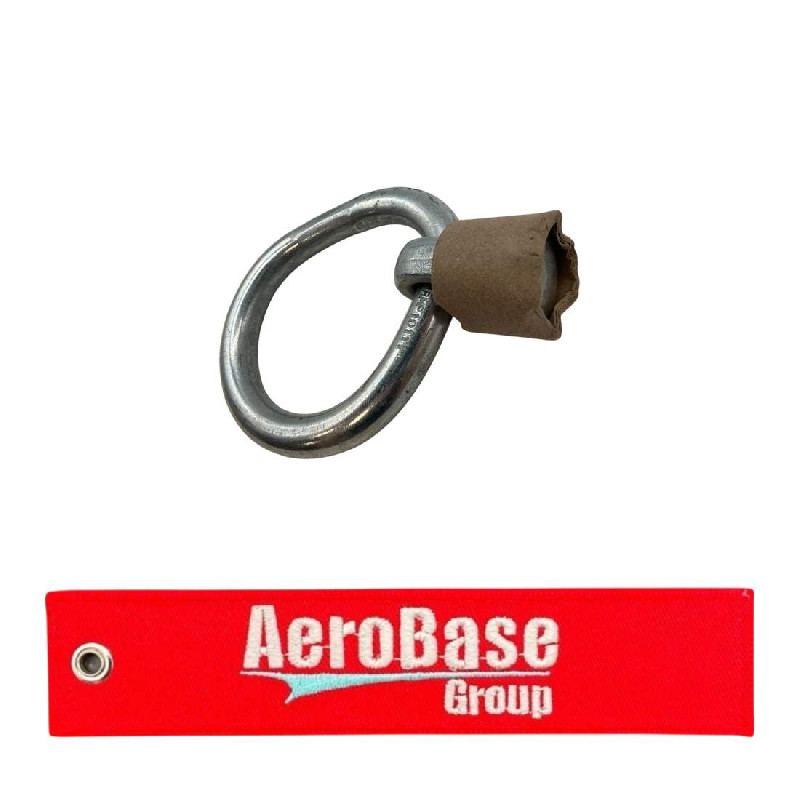

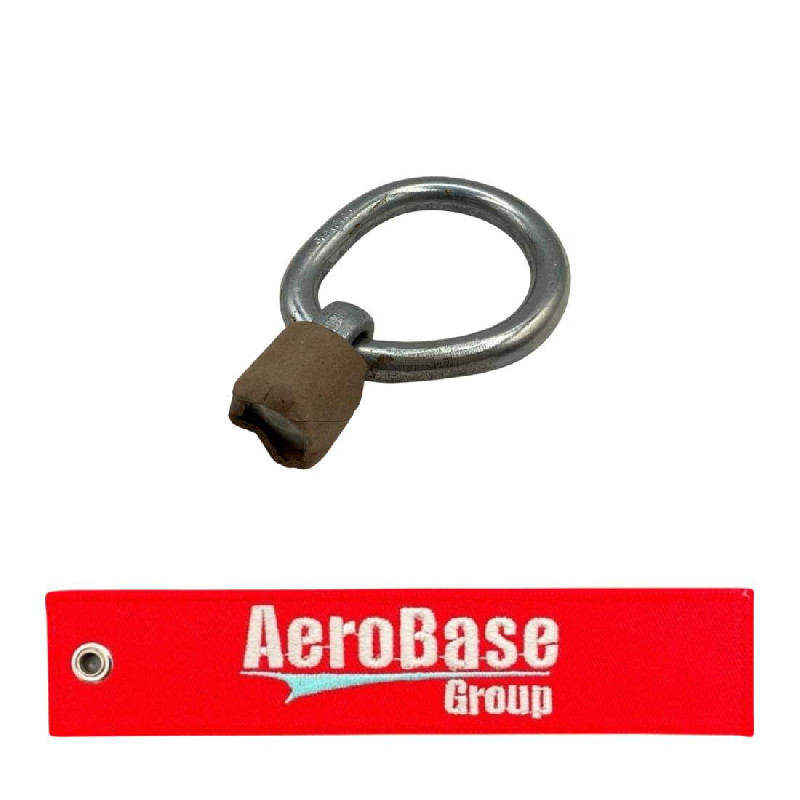

Product Images

Product Details

Part Number or Model	PMP10111
Description	Cargo Tie Down Ring
Schedule B Class
ECCN (Export Control Class)	EAR99
Product Type	Heavy-Duty Cargo Tie-Down Ring Bolt Assembly
Working Capacity	10,000 lb
Material	4130 Steel
Thread Series	UNF
Thread Direction	Right Hand
Ring Inside Diameter	3.000 in
Overall Width	3.000 in
Overall Length	4.906 in
Overall Thickness	1.125 in
Thread	1.125-12 UNF
Construction	Ring and Stud Assembly
Application	Military cargo restraint / tie-down systems
