T4-0045 Switch

Part#: T4-0045 NSN: 5930-01-198-7874

About this product T4-0045 Switch. * Manufacturer certifications are shipped with your order FREE of charge

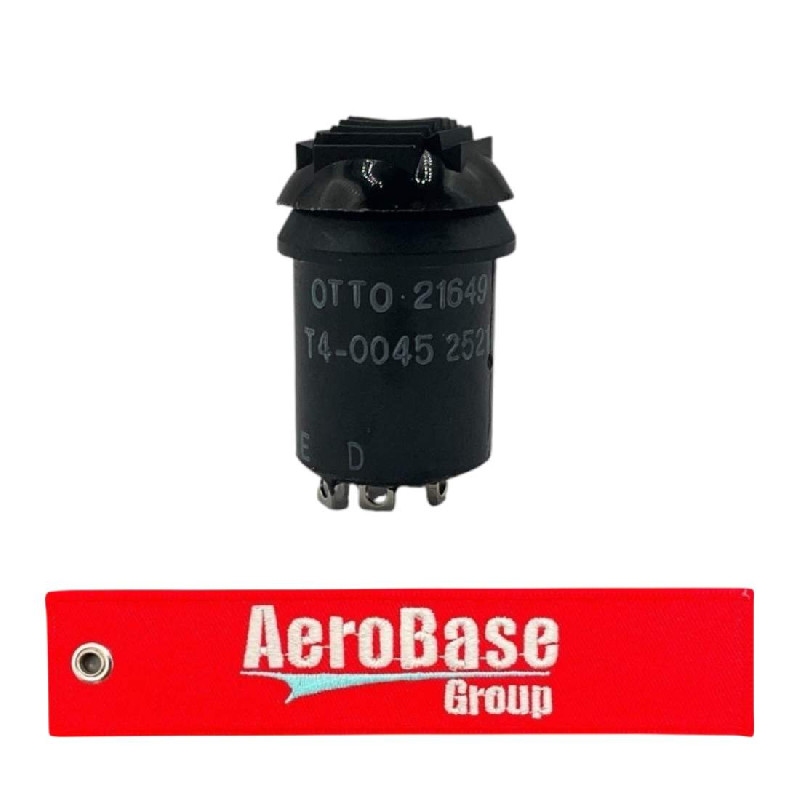

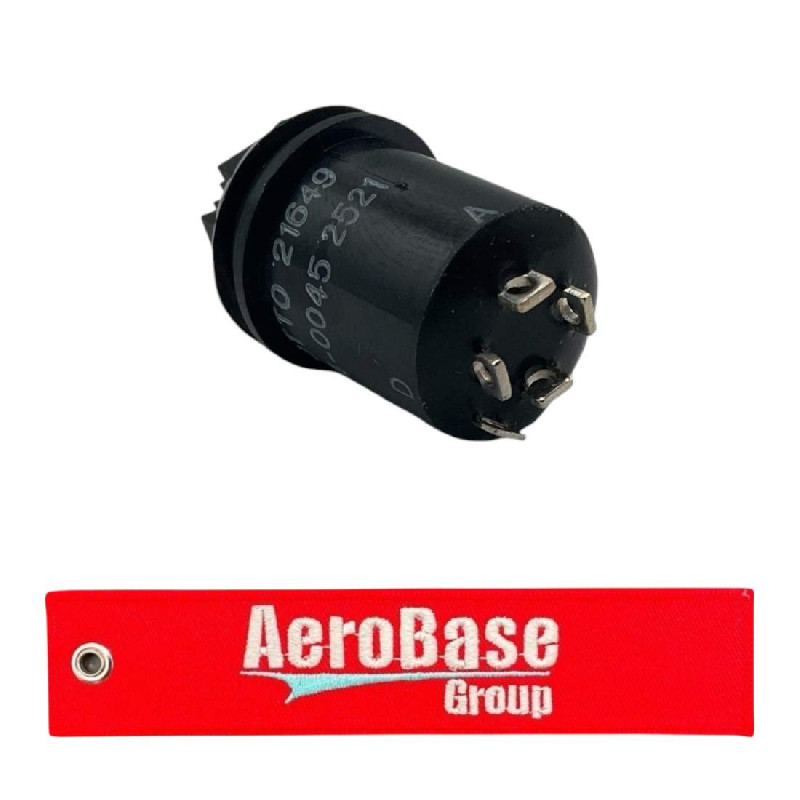

Product Images
T4-0045 T4-0045 T4-0045

Product Details

Part Number or Model T4-0045
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Color Black single actuator
Actuator Diameter 0.670 inches minimum and 0.730 inches maximum
Actuator Height 0.310 inches minimum and 0.350 inches maximum
Actuator Position-action Relationship Up position momentary and down position momentary and center position maintained and left position momentary and right position momentary
Actuator Style Round, stepped
Body Diameter 0.570 inches minimum and 0.630 inches maximum
Body Style Hole mount
Case Material Plastic
Contact Load Current Rating At Maximum Rated Voltage 1 amperes inductive dc
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 28.0 dc
Mounting Method Threaded bushing
Mounting Surface To Terminal End Distance 0.720 inches minimum and 0.780 inches maximum
Nonpile-up Contact Arrangement 1 four throw, normally open, momentary action single switch unit
Overall Height 0.670 inches minimum and 0.730 inches maximum
Overall Length 1.080 inches nominal
Overall Width 0.670 inches minimum and 0.730 inches maximum
Precious Material And Location Terminal surfaces silver
Terminal Type And Quantity 5 printed circuit

Add to Cart

Up to quantity 3 ships same day.
buy now $379.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-01-198-7874
  • Manufactured By
    Otto
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • T40045
  • 5930011987874
  • 5930-01-198-7874
