P3-90011 Switch

Name: Switch
Brand: Otto
SKU: 5930013207829
Price: 54.95 USD
Availability: InStock

Part#: P3-90011 NSN: 5930-01-320-7829

About this product P3-90011 Switch. * Manufacturer certifications are shipped with your order FREE of charge

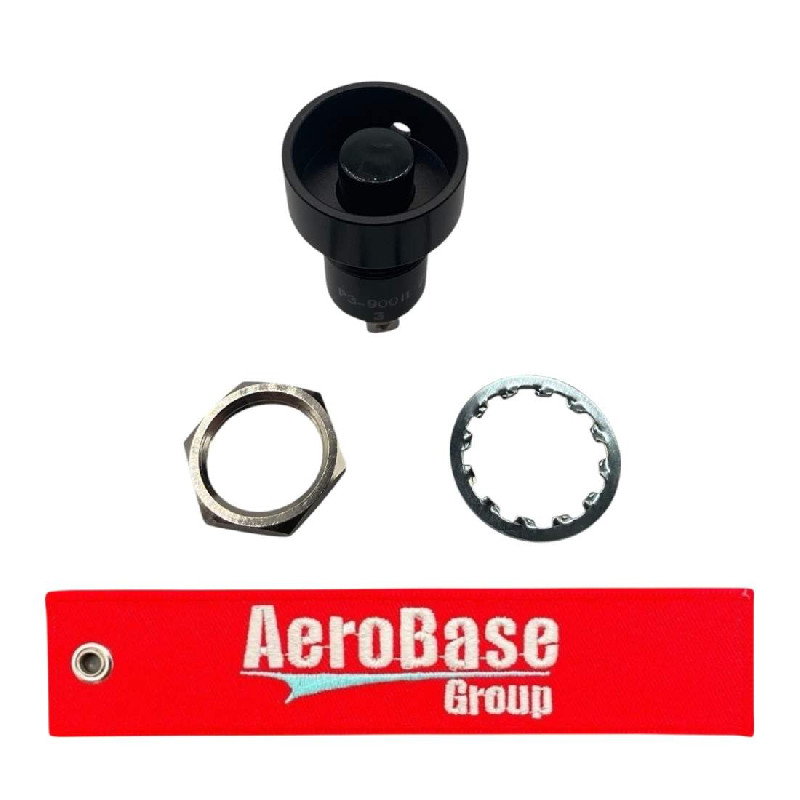

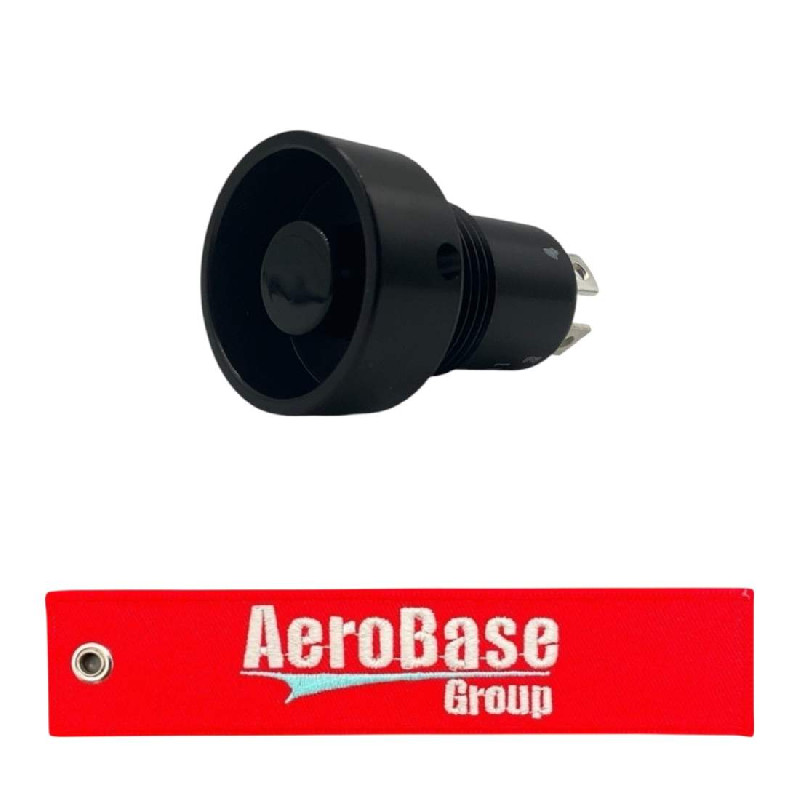

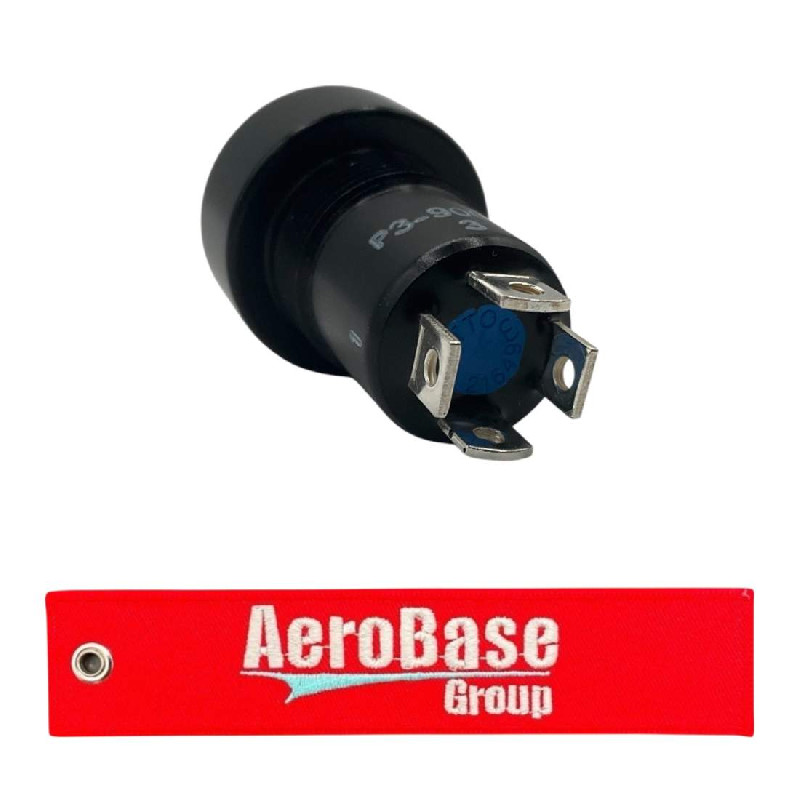

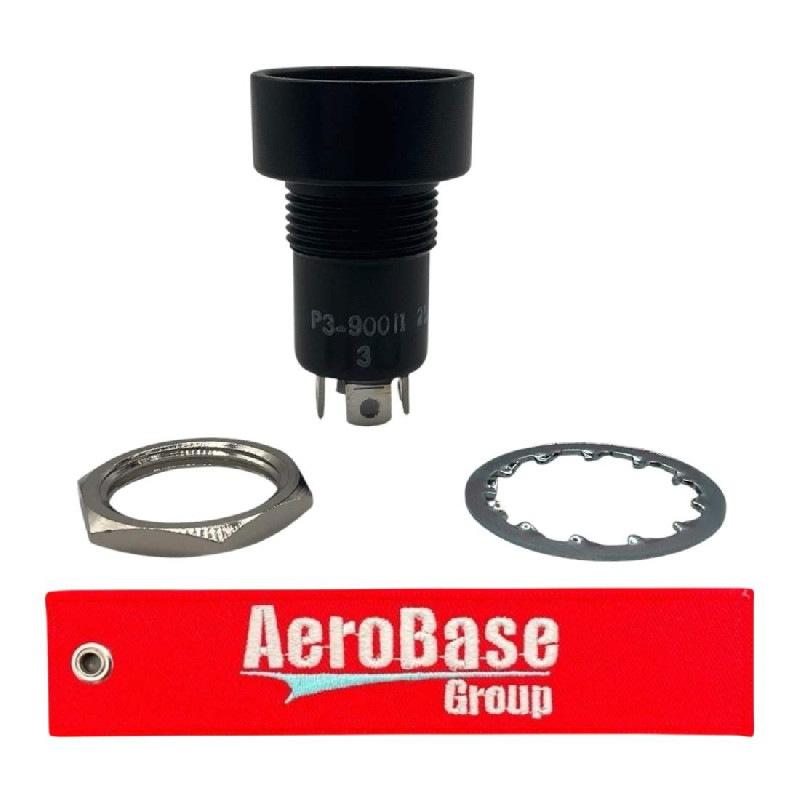

Product Images

Product Details

Part Number or Model	P3-90011
Description	Switch
Schedule B Class	8536.50.9035
ECCN (Export Control Class)	EAR99
Actuator Color	Red single actuator
Actuator Diameter	0.880 inches maximum
Actuator Height	0.391 inches maximum
Body Diameter	0.567 inches maximum
Body Length	0.626 inches nominal
Body Style	Bushing mounted
Bushing Length	0.297 inches minimum and 0.327 inches maximum
Contact Load Current Rating At Maximum Rated Voltage	10 amperes resistive dc and 5 amperes inductive dc and 3 amperes lamp dc and 10 amperes resistive ac and 5 amperes inductive ac and 3 amperes lamp ac
Inclosure Type	Fully inclosed
Maximum Voltage Rating In Volts	115 ac and 28 dc
Mounting Method	Threaded bushing
Thread Size	0.625 inches
Nonpile-up Contact Arrangement	1 two circuit, double break/double make, both positions maintained single switch unit
Overall Height	0.880 inches maximum
Overall Length	1.500 inches maximum
Overall Width	0.880 inches maximum
Terminal Type And Quantity	4 tab, solder lug
Thread Class	2a
Thread Qty Per Inch (tpi)	24
Thread Series Designator	Unef
Type	Single-Pole, Double-Throw (SPDT), 2-circuit momentary switch
Design	Black round button with a shrouded black anodized case and a built-in drain hole
Resistive Load	10 Amps (rated for 100,000 electrical cycles)
Limits	28 VDC or 115 VAC (60/400 Hz)

Up to quantity 11 ships same day.

buy now $54.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
