MS51844-62 Wire Rope Swaging Sleeve

Part#: MS51844-62 NSN: 4030-01-088-2952

About this product MS51844-62 Wire Rope Swaging Sleeve. * Manufacturer certifications are shipped with your order FREE of charge

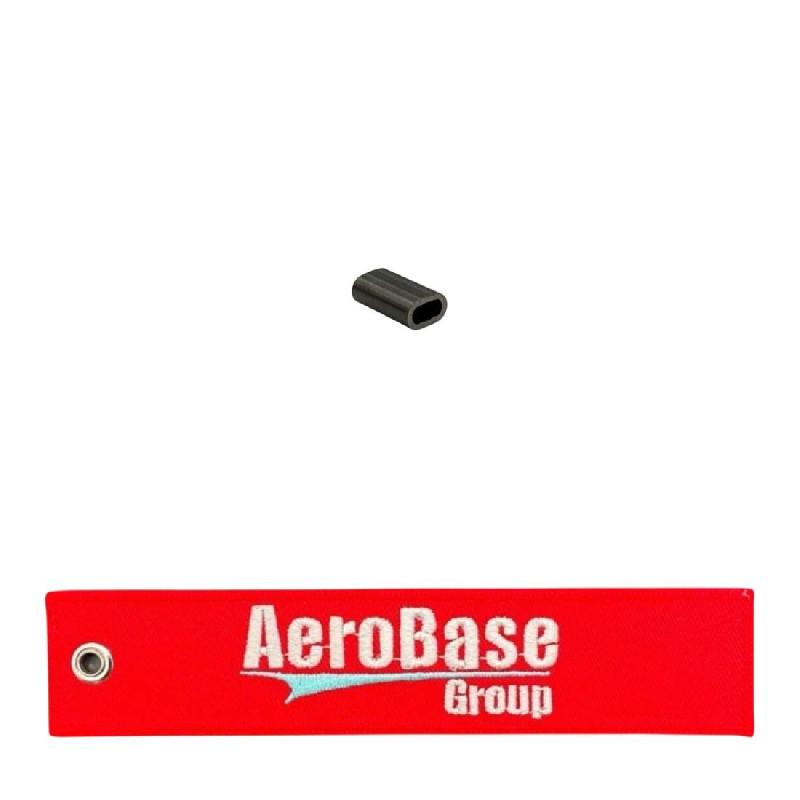

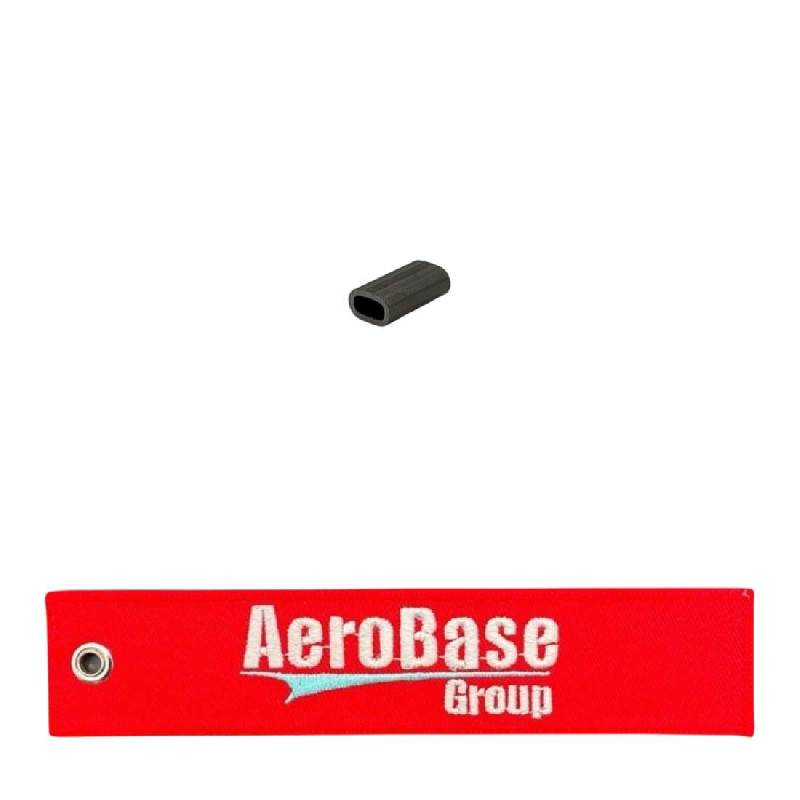

Product Images
MS51844-62 MS51844-62 MS51844-62

Product Details

Part Number or Model MS51844-62
Description Wire Rope Swaging Sleeve
Schedule B Class 7415.29.0000
ECCN (Export Control Class) EAR99
Accommodated Material Diameter 0.062 inches nominal
Material Steel comp 304 or steel comp 305
Material Specification Astm a249 assn std all material responses or astm a269 assn std 1st material response or astm a511 assn std 2nd material response
Overall Height 0.236 inches maximum
Overall Length 0.440 inches maximum
Overall Width 0.143 inches maximum
Safe Operating Load Rating 480 pounds nominal
Style Designator Figure 8
Surface Treatment Passivate
Surface Treatment Specification Astm a380 assn std single treatment response

Add to Cart

Up to quantity 560 ships same day.
buy now $3.80
each, minimum order quantity of 10 Sold in increments of 10
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    4030-01-088-2952
  • Manufactured By
    NICOPRESS PRODUCTS
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 4030010882952
  • 4030-01-088-2952
  • MS5184462
