6XE27-1 Switch

Part#: 6XE27-1 NSN: 5930-00-145-9703

About this product 6XE27-1 Switch. * Manufacturer certifications are shipped with your order FREE of charge

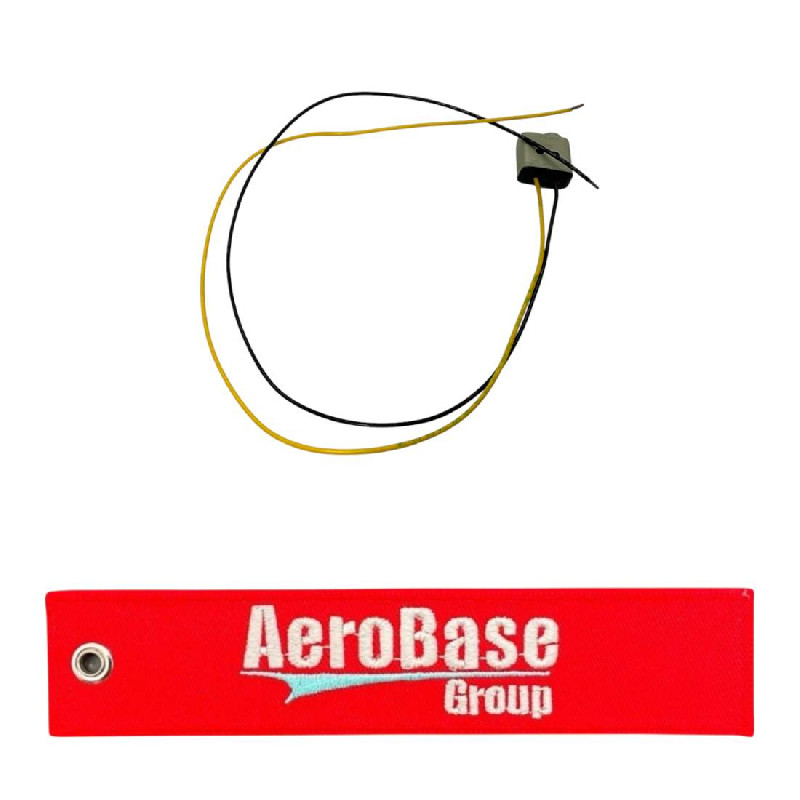

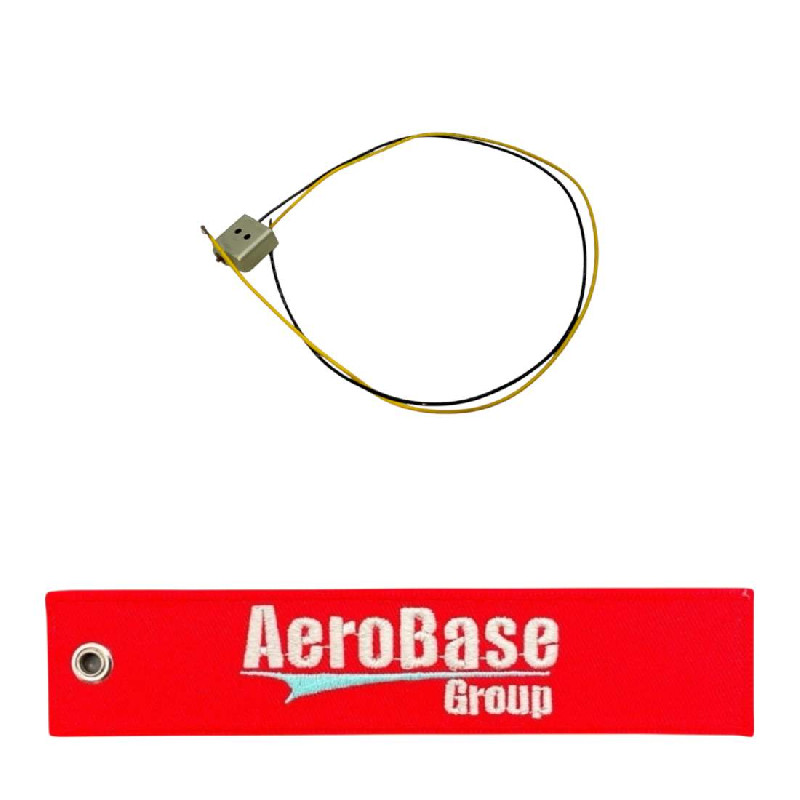

Product Images
6XE27-1 6XE27-1 6XE27-1 6XE27-1

Product Details

Part Number or Model 6XE27-1
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Diameter 0.065 inches maximum
Actuator Free Position Height 0.495 inches maximum
Actuator Height 0.080 inches maximum
Actuator Movement 0.050 pretravel inches maximum and 0.004 overtravel inches minimum and 0.005 differential inches maximum
Actuator Style Round
Body Height 0.645 inches maximum
Body Length 0.626 inches maximum
Body Style Hole mounted
Body Width 0.326 inches maximum
Center To Center Distance Between Mounting Facilities Parallel T 0.188 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 7 amperes resistive dc and 4 amperes inductive dc and 7 amperes resistive ac and 7 amperes inductive ac
Hazardous Locations/environmental Protection Watertight
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 250.0 ac and 28.0 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 pole, double throw, one position momentary single switch unit
Switch Actuating Force 17.0 ounces maximum
Switch Release Force 4.0 ounces minimum
Terminal Type And Quantity 3 wire lead
Unthreaded Mounting Hole Diameter 0.091 inches maximum

Add to Cart

Up to quantity 2 ships same day.
buy now $489.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-145-9703
  • Package Weight (oz)
    0.368
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5930-00-145-9703
  • 5930001459703
  • 6XE271
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
