5XE1-6 Switch

Part#: 5XE1-6 NSN: 5930-00-119-6565

About this product 5XE1-6 Switch. * Manufacturer certifications are shipped with your order FREE of charge

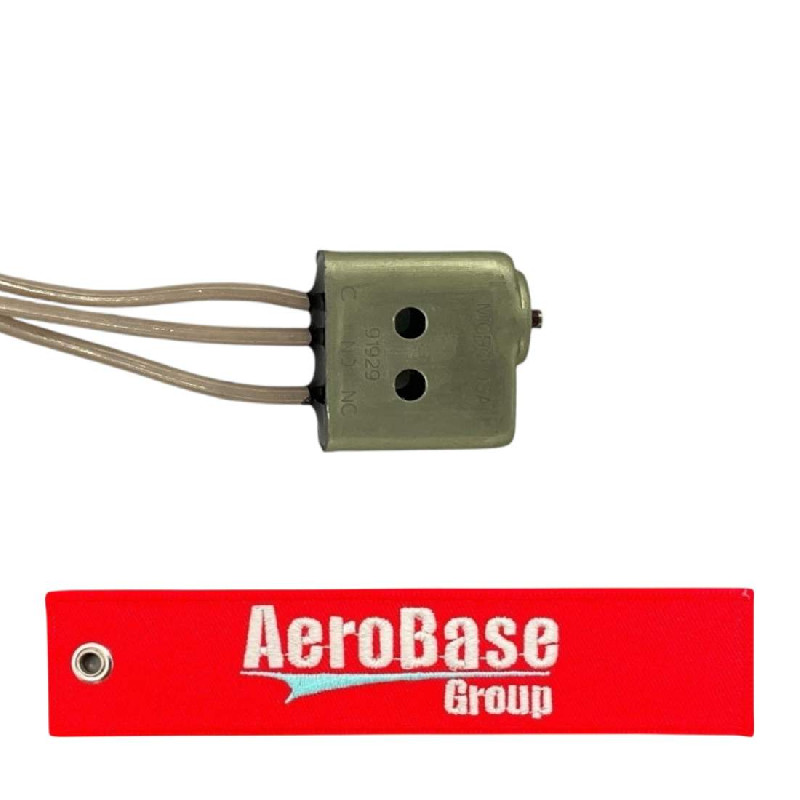

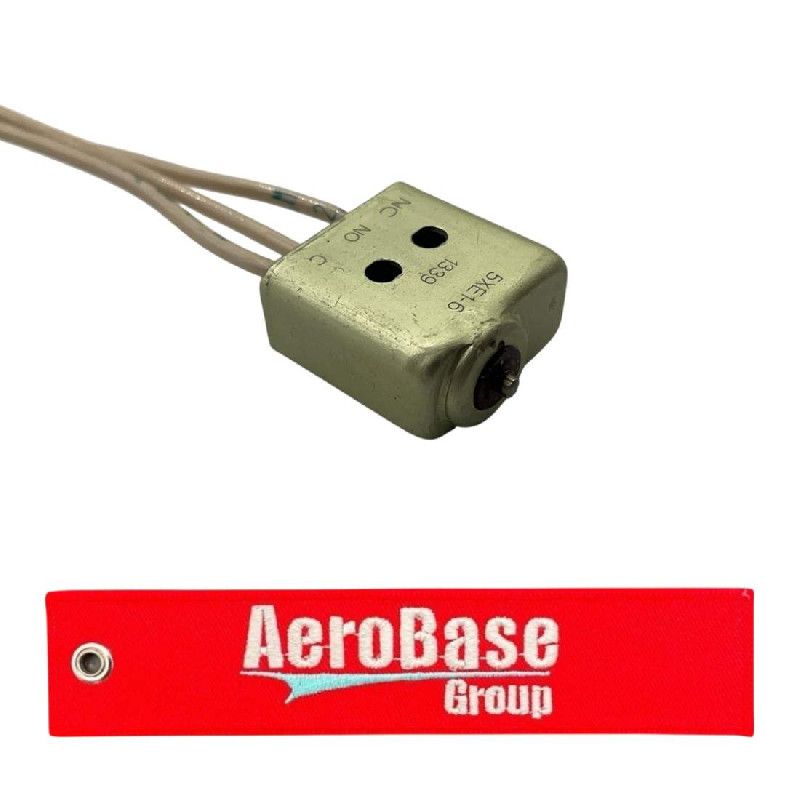

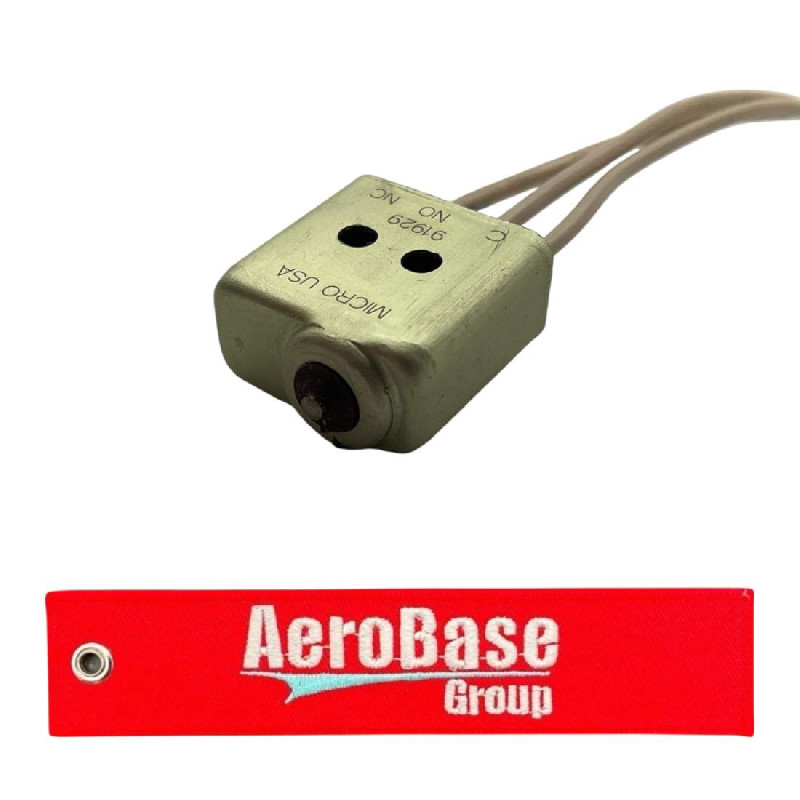

Product Images
5XE1-6 5XE1-6 5XE1-6 5XE1-6

Product Details

Part Number or Model 5XE1-6
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Diameter 0.055 inches minimum and 0.065 inches maximum
Actuator Free Position Height 0.075 inches minimum and 0.115 inches maximum
Actuator Height 0.050 inches maximum
Actuator Movement 0.050 pretravel inches maximum and 0.004 overtravel inches minimum and 0.005 differential inches maximum
Actuator Style Round
Body Height 0.590 inches minimum and 0.610 inches maximum
Body Length 0.506 inches minimum and 0.526 inches maximum
Body Style Hole mounted
Body Width 0.306 inches minimum and 0.326 inches maximum
Center To Center Distance Between Mounting Facilities Parallel T 0.183 inches minimum and 0.193 inches maximum
Contact Load Current Rating At Maximum Rated Voltage 7.000 amperes resistive dc and 2.500 amperes inductive dc and 2.500 amperes lamp dc and 4.000 amperes motor dc
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 28 dc
Mounting Method Unthreaded hole
Nonpile-up Contact Arrangement 1 pole, double throw, both positions maintained single switch unit
Overall Height 0.685 inches minimum and 0.725 inches maximum
Overall Length 0.506 inches minimum and 0.526 inches maximum
Overall Width 0.306 inches minimum and 0.326 inches maximum
Switch Actuating Force 5.0 ounces minimum and 17.0 ounces maximum
Switch Release Force 4.0 ounces minimum
Terminal Type And Quantity 3 wire lead
Unthreaded Mounting Hole Diameter 0.091 inches maximum

Add to Cart

Up to quantity 2 ships same day.
buy now $474.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-119-6565
  • Package Weight (oz)
    1.776
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5XE16
  • 5930001196565
  • 5930-00-119-6565
