2TL1-51 Toggle Switch

Part#: 2TL1-51 NSN: 5930-00-655-4242

About this product 2TL1-51 Toggle Switch. * Manufacturer certifications are shipped with your order FREE of charge

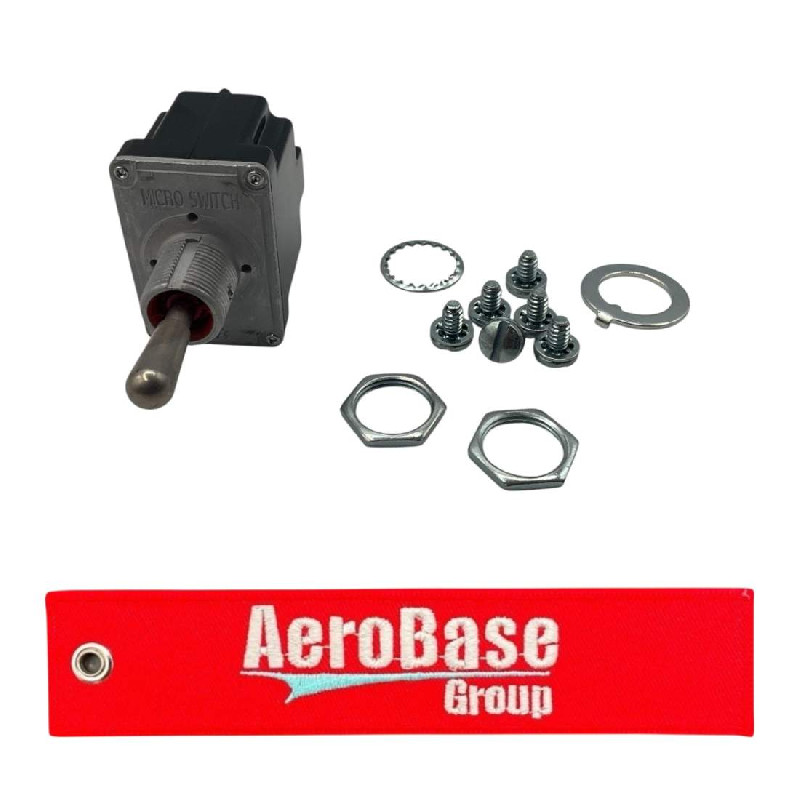

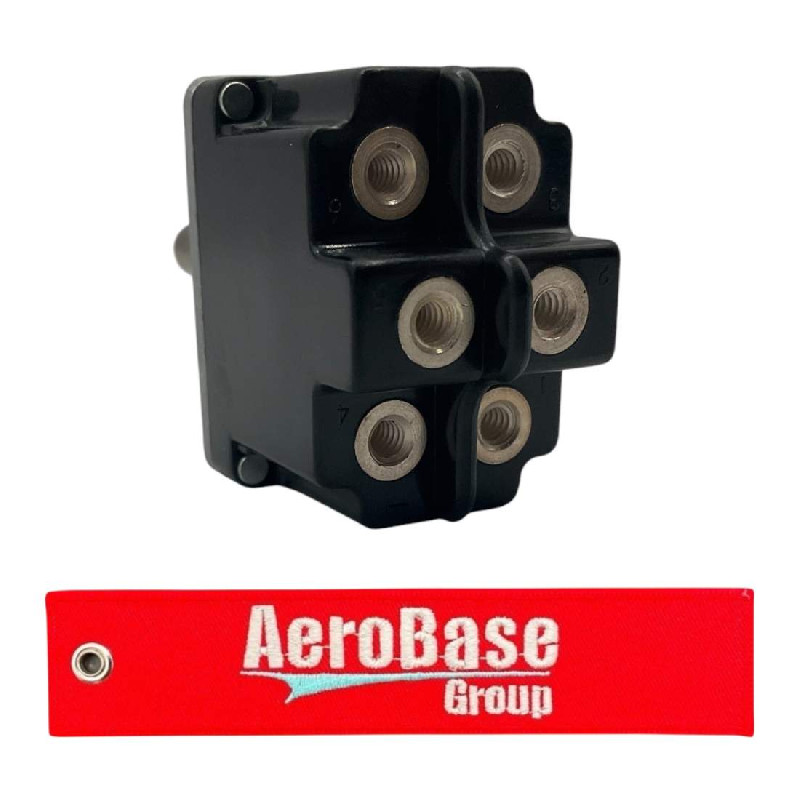

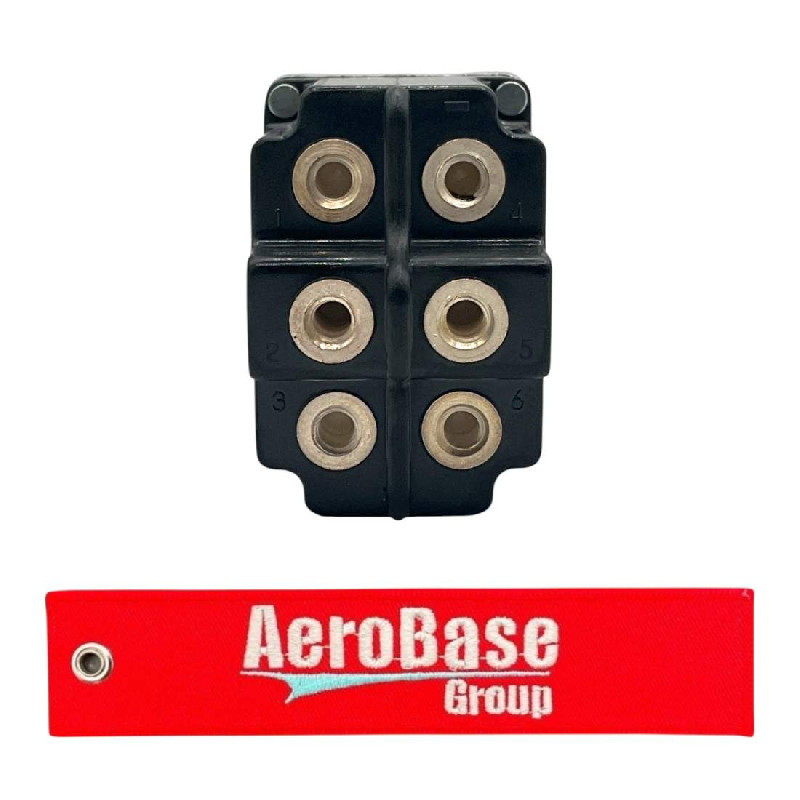

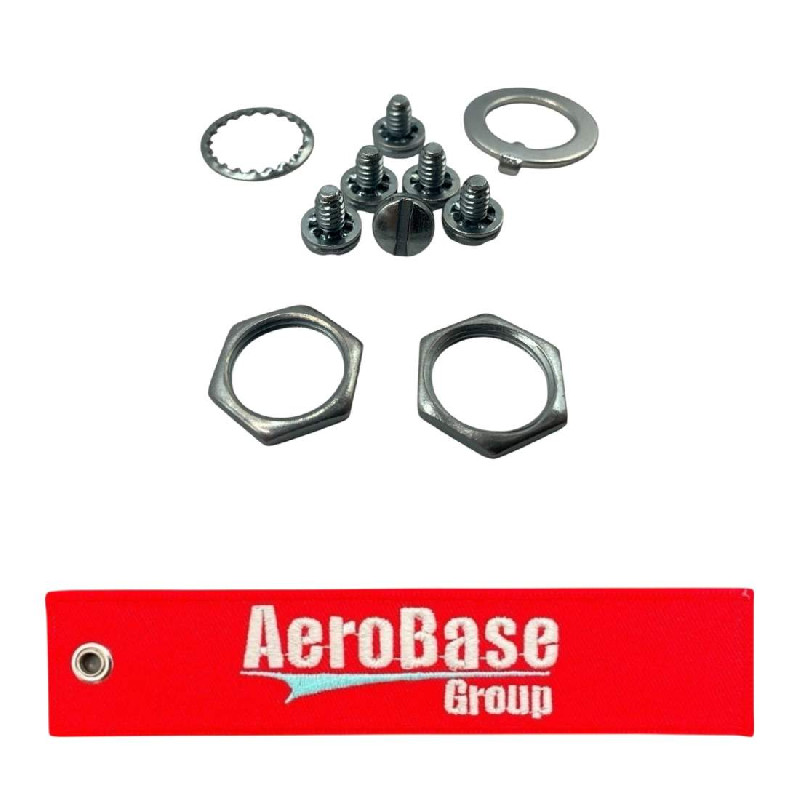

Product Images
2TL1-51 2TL1-51 2TL1-51 2TL1-51 2TL1-51 2TL1-51

Product Details

Part Number or Model 2TL1-51
Description Toggle Switch
Schedule B Class 8536509065
ECCN (Export Control Class) EAR99
Actuator Diameter 0.240 inches nominal
Actuator Height 0.660 inches minimum and 0.720 inches maximum
Actuator Position-action Relationship Up position momentary and center position maintained
Actuator Style Round
Body Height 0.970 inches nominal
Body Length 1.340 inches maximum
Body Style Bushing mount
Body Width 0.910 inches maximum
Bushing Length 0.470 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 18 amperes resistive dc and 10 amperes inductive dc and 5.000 amperes lamp dc and 11.000 amperes resistive ac and 8.000 amperes inductive ac and 2.000 amperes lamp ac
Features Provided Actuator seal
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 115.0 ac and 28.0 dc
Mounting Method Threaded bushing
Thread Size 0.469 inches
Nonpile-up Contact Arrangement 1 two circuit, one position momentary single switch unit
Overall Height 1.560 inches nominal
Overall Length 1.340 inches maximum
Overall Width 0.910 inches maximum
Terminal Type And Quantity 4 screw
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns

Add to Cart

Up to quantity 24 ships same day.
buy now $48.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-655-4242
  • Package Weight (oz)
    1.744
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
