1SE7 Switch

Part#: 1SE7 NSN: 5930-01-524-5473

About this product 1SE7 Switch. * Manufacturer certifications are shipped with your order FREE of charge

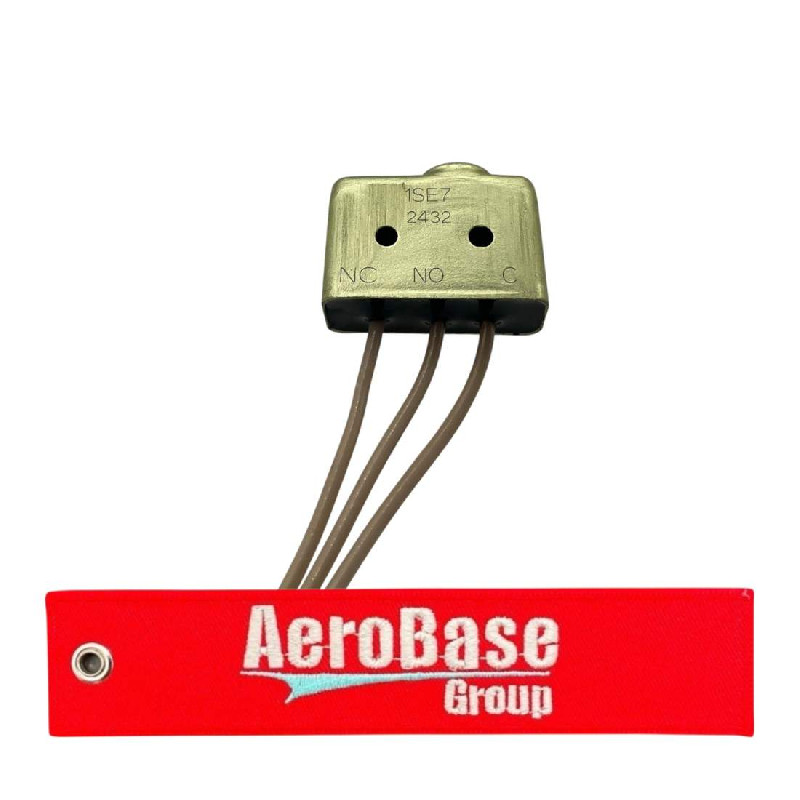

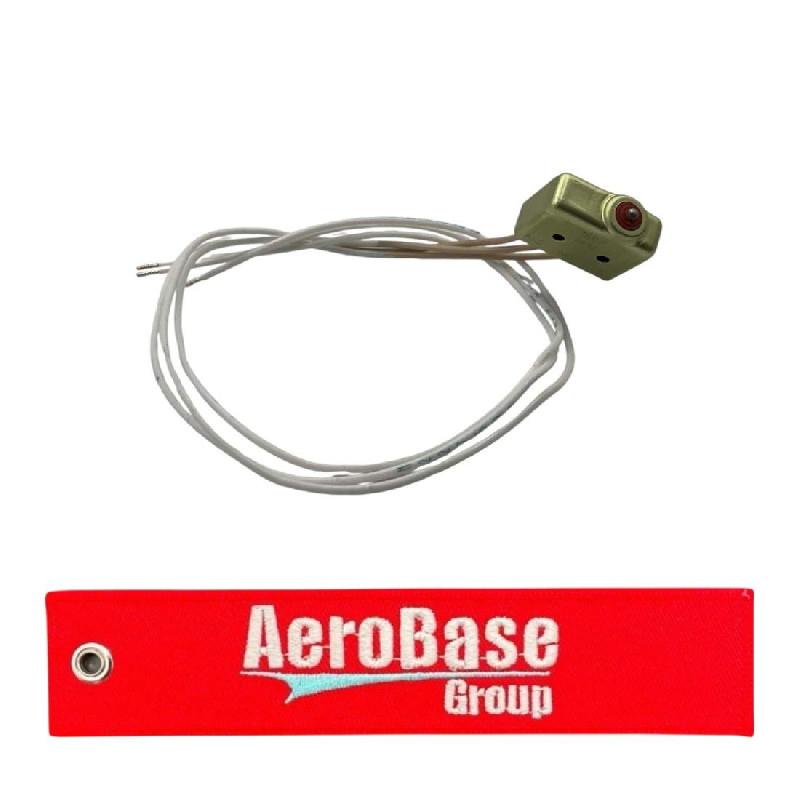

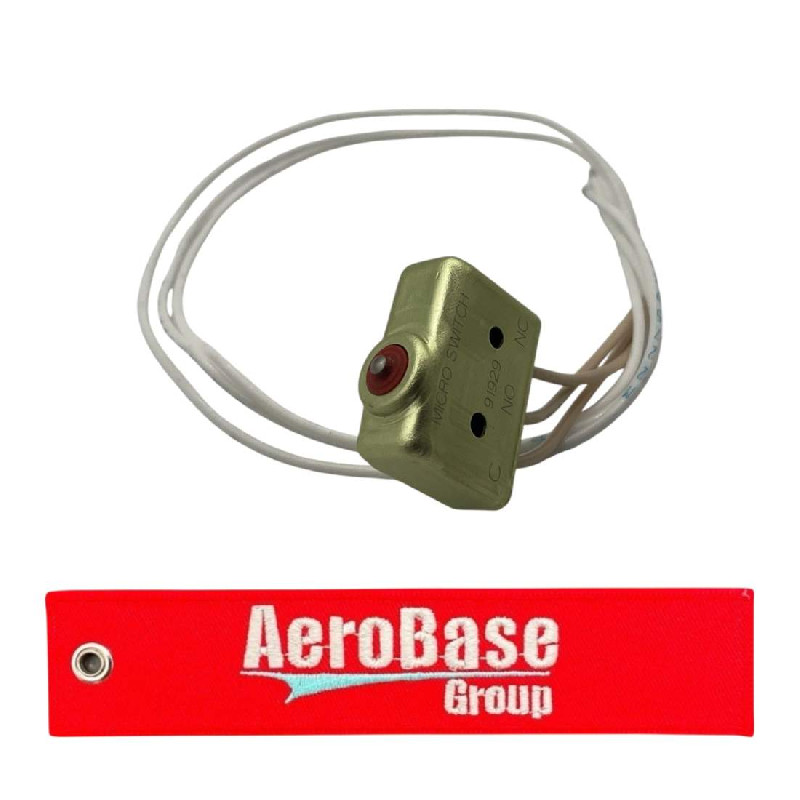

Product Images
1SE7 1SE7 1SE7

Product Details

Part Number or Model 1SE7
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Actuator Diameter 0.078 inches nominal
Actuator Height 0.050 inches nominal
Actuator Movement 0.003 overtravel millimeters nominal
Actuator Style Round, flush
Body Height 0.590 inches minimum and 0.610 inches maximum
Body Length 0.866 inches minimum and 0.886 inches maximum
Body Style Hole mounted
Body Width 0.326 inches minimum and 0.366 inches maximum
Center To Center Distance Between Mounting Facilities Parallel T 0.250 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 2 amperes inductive dc
End Application Reconnaissance vehicle fenner
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 30.0 dc
Mounting Method Screw
Precious Material And Location Contacts gold
Switch Actuating Force 5.0 ounces minimum and 15.0 ounces maximum
Switch Release Force 4.0 ounces nominal
Terminal Type And Quantity 3 pin

Add to Cart

Up to quantity 2 ships same day.
buy now $339.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-01-524-5473
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99
