1SE1-T Switch

Part#: 1SE1-T NSN: 5930-00-729-8291

About this product 1SE1 series switch. * Manufacturer certifications are shipped with your order FREE of charge

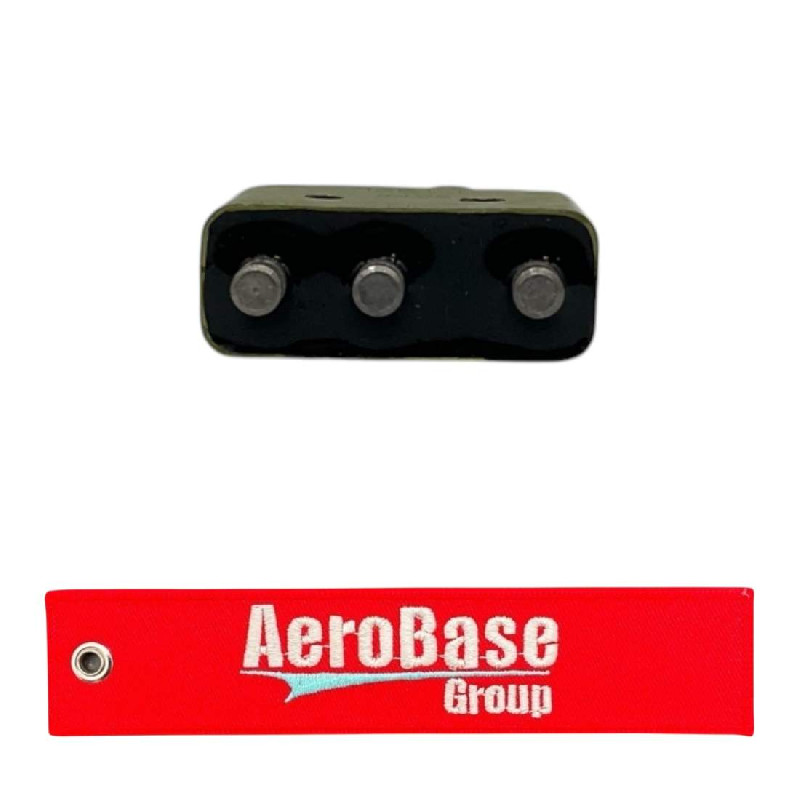

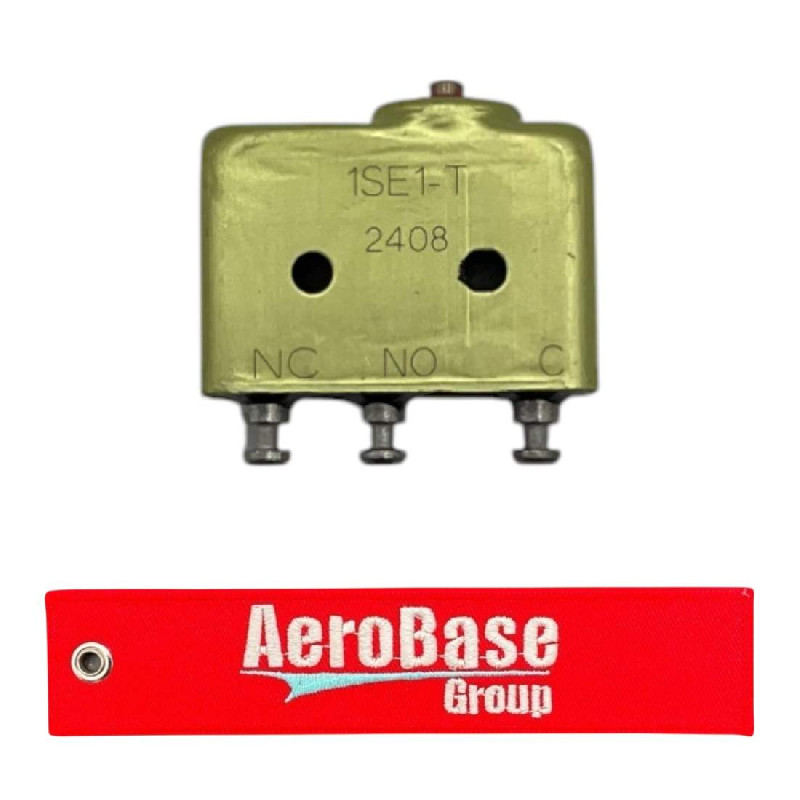

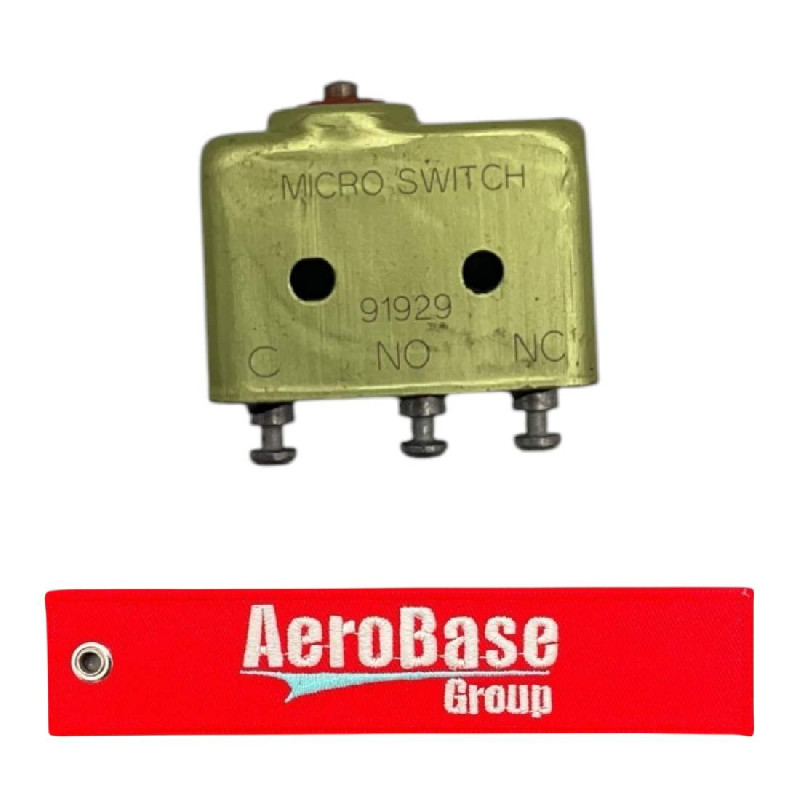

Product Images
1SE1-T 1SE1-T 1SE1-T 1SE1-T

Product Details

Part Number or Model 1SE1-T
Description Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Unthreaded Mounting Hole Diameter 0.086 inches nominal
Terminal Type And Quantity 3 tab, solder lug
Switch Actuating Force 5.0 ounces maximum
Switch Release Force 1.0 ounces minimum
Special Features Weapon system essential
Overall Height 0.520 inches nominal
Overall Width 0.200 inches nominal
Precious Material And Location Contacts silver
Overall Length 0.500 inches nominal
Nonpile-up Contact Arrangement 1 pole, double throw, one position momentary single switch unit
Mounting Method Unthreaded hole
Inclosure Type Fully inclosed
Maximum Voltage Rating In Volts 28 dc
Criticality Code Justification Feat
End Application Aircraft stratofortress b-52
Center To Center Distance Between Mounting Facilities Parallel T 0.188 inches nominal
Contact Load Current Rating At Maximum Rated Voltage 7 amperes resistive dc and 4 amperes inductive dc and 2.500 amperes lamp dc and 4.000 amperes motor dc
Case Material Metal
Body Width 0.200 inches nominal
Body Style Hole mounted
Body Length 0.500 inches nominal
Actuator Style Round
Body Height 0.350 inches nominal
Actuator Movement 0.020 pretravel inches maximum and 0.004 overtravel inches minimum and 0.005 differential inches maximum
Actuator Height 0.020 inches nominal
Actuator Free Position Height 0.320 inches nominal
Actuator Diameter 0.094 inches nominal

Add to Cart

Up to quantity 3 ships same day.
buy now $164.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-729-8291
  • Manufactured By
    Honeywell
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 1SE1T
  • 5930007298291
  • 5930-00-729-8291
