1SE1 Sensitive Switch

Name: Switch
Brand: Honeywell
SKU: 5930005197430
Price: 150.00 USD
Availability: InStock

Part#: 1SE1 NSN: 5930-00-519-7430

About this product 1 two circuit, double make, two positions momentary single switch unit. * Manufacturer certifications are shipped with your order FREE of charge

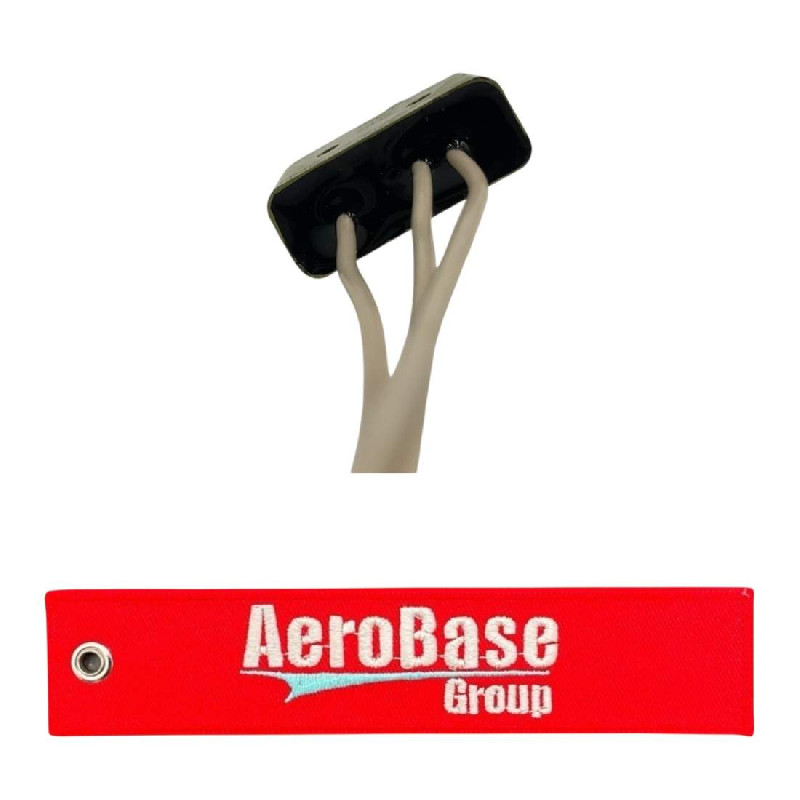

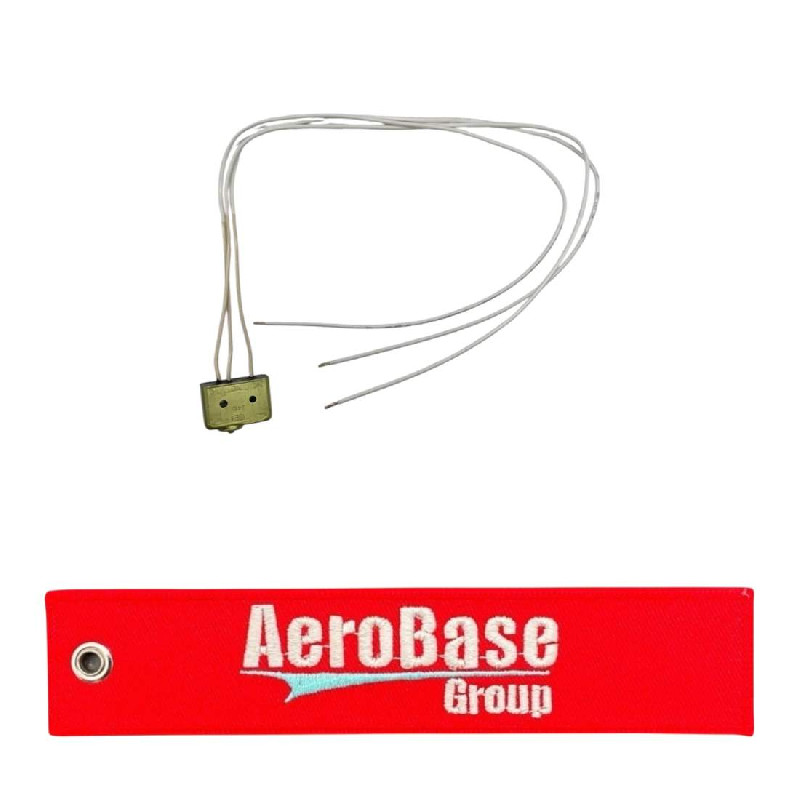

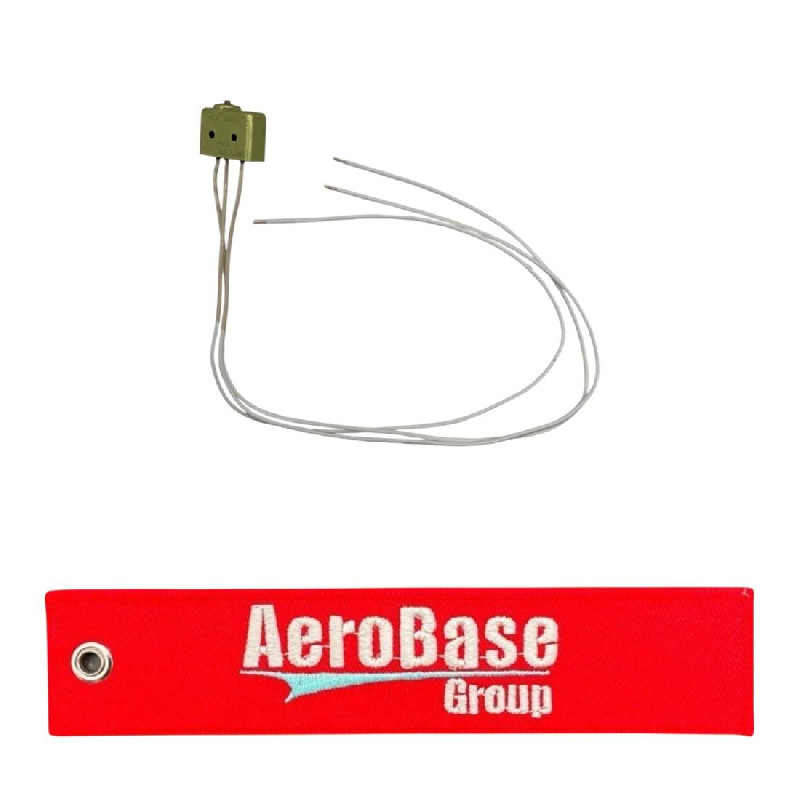

Product Images

Product Details

Part Number or Model	1SE1
Description	Switch
Schedule B Class	8536.50.9050
ECCN (Export Control Class)	9A991.d
Switch Release Force	4.0 ounces nominal
Terminal Type And Quantity	3 wire lead
Unthreaded Mounting Hole Diameter	0.088 inches nominal
Switch Actuating Force	17.0 ounces maximum
Maximum Voltage Rating In Volts	28.0 dc
Nonpile-up Contact Arrangement	1 two circuit, double make, two positions momentary single switch unit
Contact Load Current Rating At Maximum Rated Voltage	3 amperes resistive dc
Center To Center Distance Between Mounting Facilities Parallel T	0.3 inches nominal
Body Width	0.50 inches nominal
Body Length	0.876 inches nominal
Body Style	Hole mounted
Body Height	0.346 inches nominal
Actuator Movement	0.05 pretravel inches maximum and 0.003 overtravel inches nominal and 0.004 differential inches maximum
Actuator Style	Round
Actuator Free Position Height	0.475 inches nominal

Add to Cart

Up to quantity 12 ships same day.

buy now $150.00

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

NSN (National stock number)
5930-00-519-7430
Package Weight (oz)
0.672
Manufactured By
ECCN (Export Control Class)
9A991.d

Alternate(s)

5930005197430
30246
10393571-006
5930-00-519-7430

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
