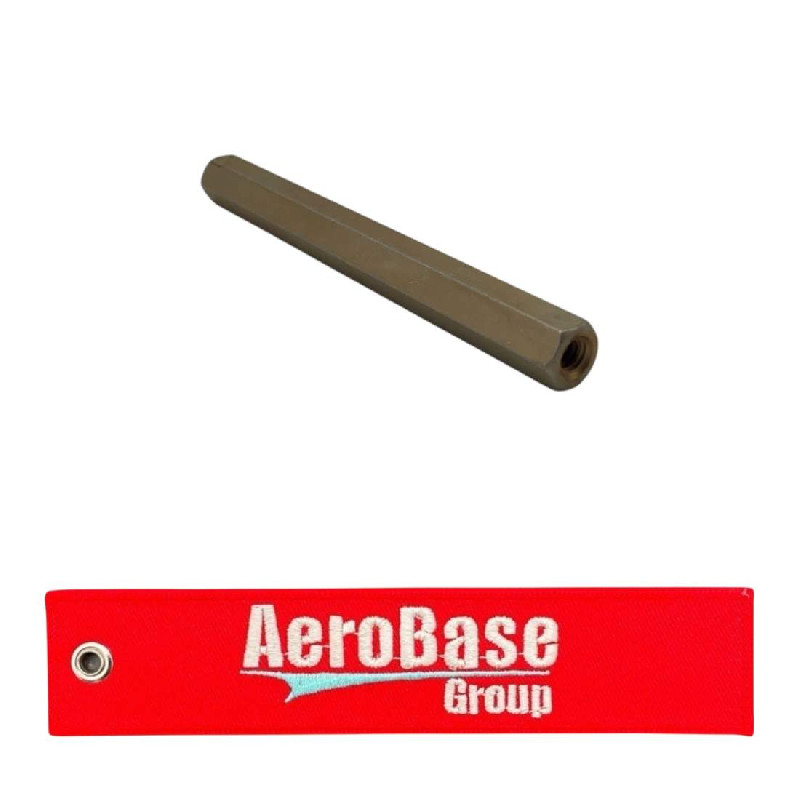

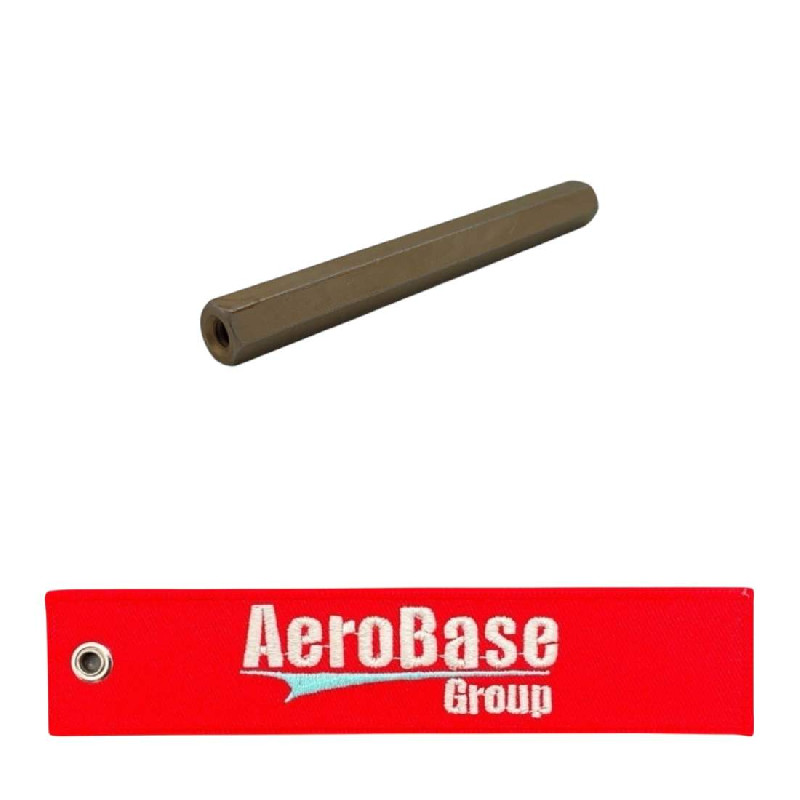

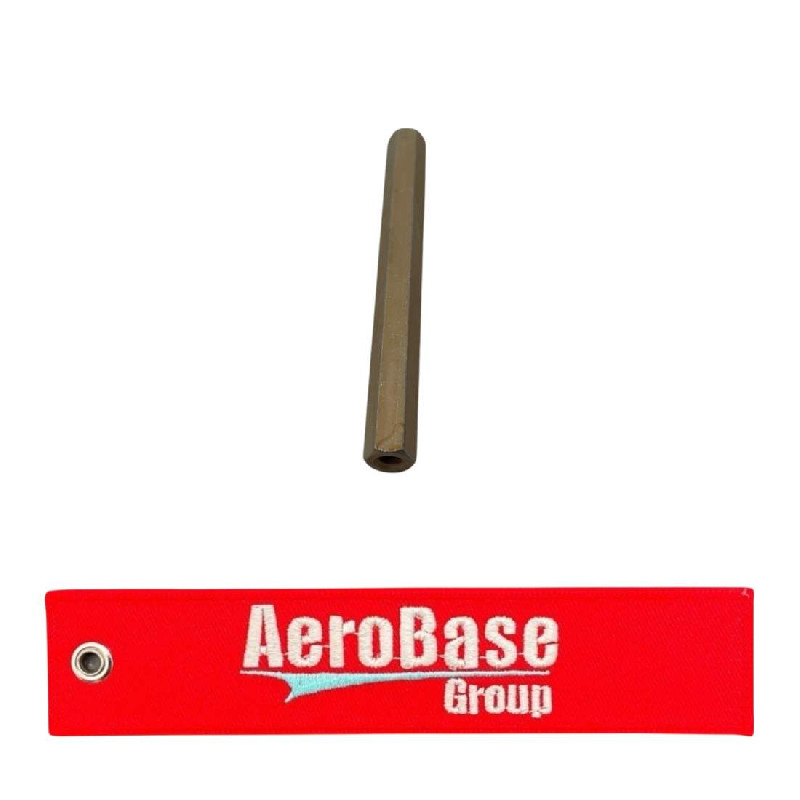

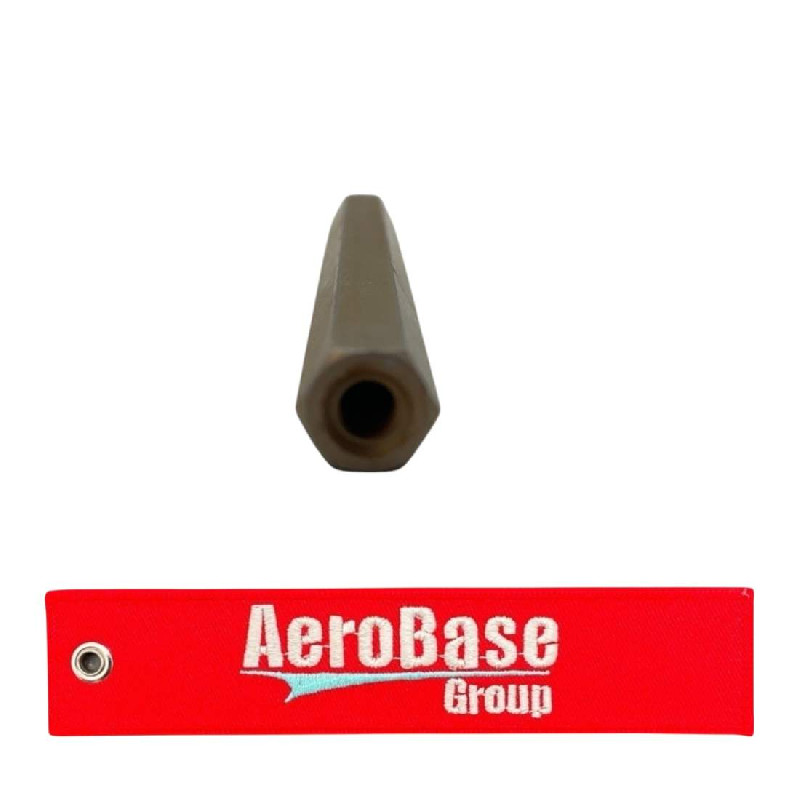

NAS1831AC4C40 Electrical Post

Part#: NAS1831AC4C40 NSN: 5340-01-614-6193

About this product NAS1831AC4C40 Electrical Post. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
NAS1831AC4C40 NAS1831AC4C40 NAS1831AC4C40 NAS1831AC4C40

Product Details

Part Number or Model NAS1831AC4C40
Description Electrical Post
Schedule B Class 7616.99.5190
ECCN (Export Control Class) EAR99
Cross-sectional Shape Hexagon
Length 2.495 inches minimum and 2.505 inches maximum
Material Aluminum alloy 6061 overall
Thread Size 0.1380 inches right internal
Thread Size 0.1380 inches left internal (includes thru thread)
Part Name Assigned By Controlling Agency Post, electrical-mechanical equipment
Style Designator Left internal and right internal threads
Thread Class 2b left internal (includes thru thread)
Thread Class 2b right internal
Thread Direction Right-hand left internal (includes thru thread)
Thread Direction Right-hand right internal
Thread Length 0.25 inches minimum left internal (includes thru thread)
Thread Length 0.250 inches minimum right internal
Thread Qty Per Inch (tpi) 32 left internal (includes thru thread)
Thread Qty Per Inch (tpi) 32 right internal
Thread Series Designator Unc left internal (includes thru thread)
Thread Series Designator Unc right internal
Width Across Flats 0.244 inches minimum and 0.256 inches maximum

Add to Cart

Up to quantity 180 ships same day.
buy now $4.95
each, minimum order quantity of 10 Sold in increments of 10
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5340-01-614-6193
  • Package Weight (oz)
    2.144
  • Manufactured By
    Hobson Manufacturing
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5340016146193
  • 5340-01-614-6193
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
