MS35059-24 Toggle Switch

Part#: MS35059-24 NSN: 5930-00-636-2821

About this product AC Rated (Heavy Duty) MIL-S-83731 with Lever Seal, Two Pole. * Manufacturer certifications are shipped with your order FREE of charge

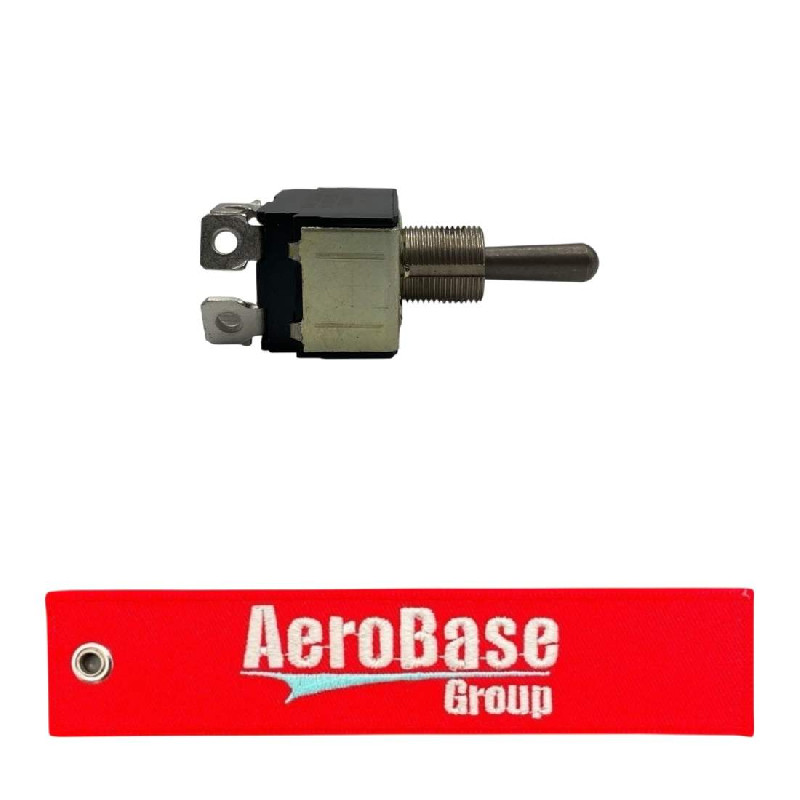

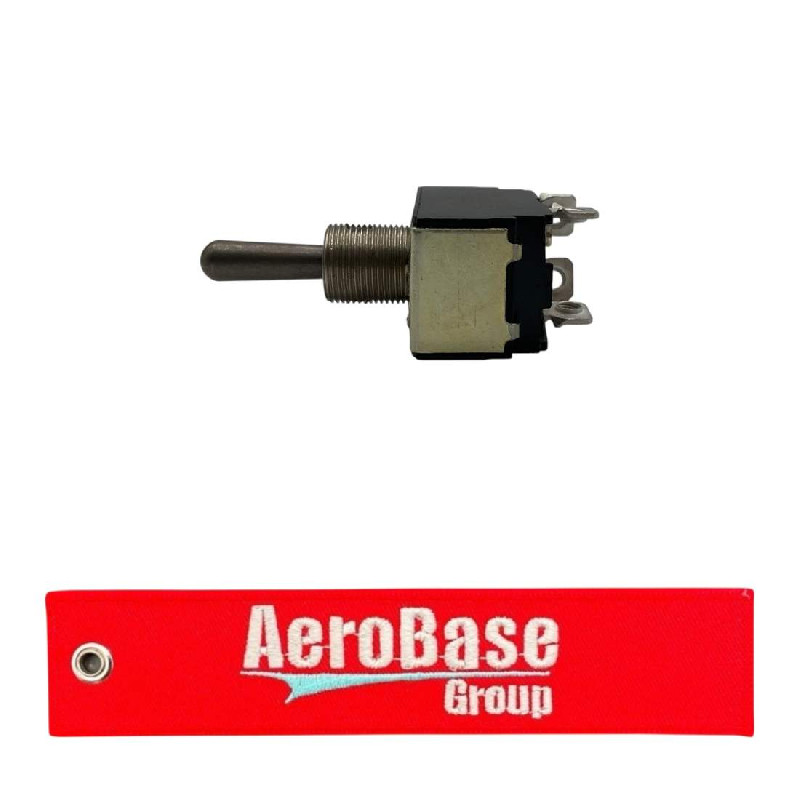

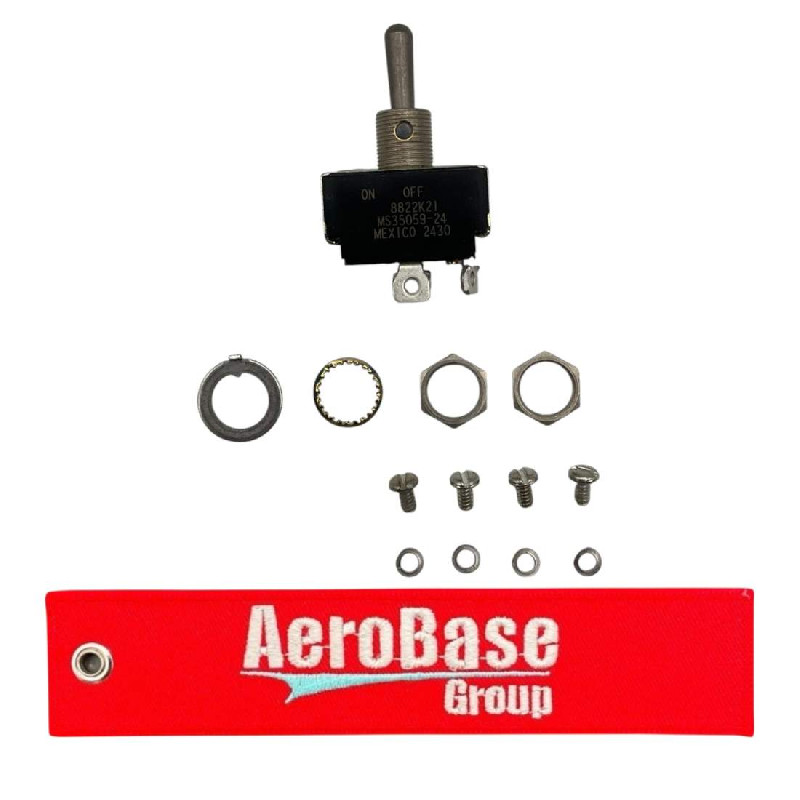

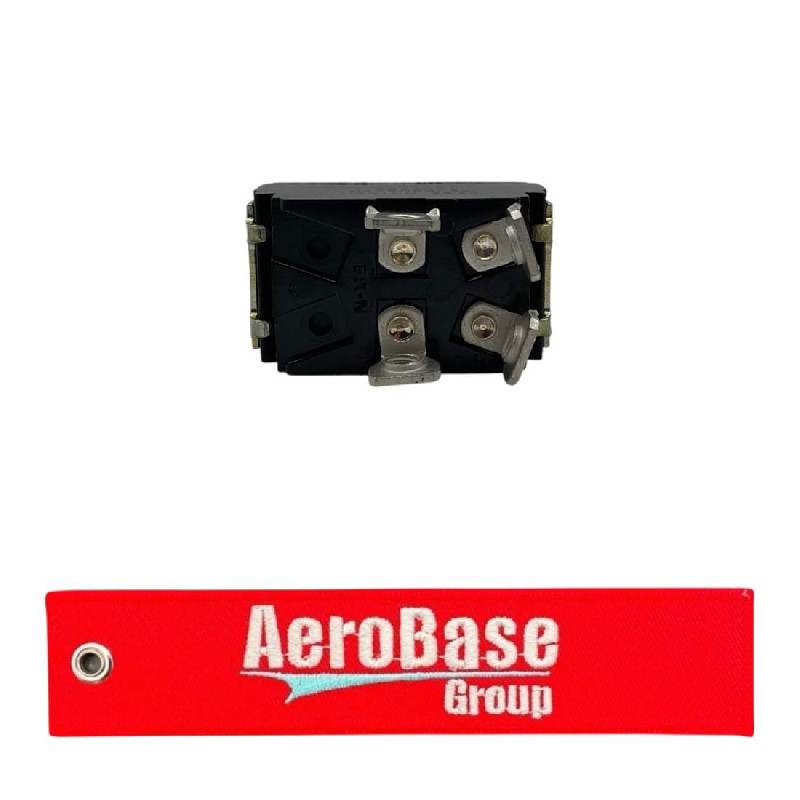

Product Images
MS35059-24 MS35059-24 MS35059-24 MS35059-24 MS35059-24

Product Details

Part Number or Model MS35059-24
Description Toggle Switch
Schedule B Class
ECCN (Export Control Class) EAR99
Terminal Type And Quantity 4 tab with screw
Specification Data 96906-ms35059 government standard
Overall Width 1.025 inches maximum
Overall Length 1.346 inches maximum
Nonpile-up Contact Arrangement 2 pole, single throw, both positions maintained single switch unit
Overall Height 2.410 inches nominal
Mounting Surface To Terminal End Distance 1.250 inches maximum
Mounting Method Threaded bushing
Maximum Voltage Rating In Volts 28 dc and 115 ac
Inclosure Type Fully inclosed
Hazardous Locations/environmental Protection Submersible
Features Provided Actuator seal
Contact Load Current Rating At Maximum Rated Voltage 20 amperes resistive dc and 15 amperes inductive dc and 20 amperes resistive ac and 15 amperes inductive ac
Bushing Length 0.470 inches nominal
Actuator Position-action Relationship Up position maintained and center position maintained
Actuator Style Round
Body Length 1.346 inches maximum
Body Style Bushing mount
Body Width 0.641 inches maximum
Actuator Height 0.690 inches nominal
Actuator Diameter 0.240 inches nominal
Thread Class 2a
Thread Qty Per Inch (tpi) 32
Thread Series Designator Uns
Thread Size 0.468 inches

Add to Cart

Up to quantity 34 ships same day.
buy now $69.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5930-00-636-2821
  • Manufactured By
    Eaton
  • ECCN (Export Control Class)
    EAR99
