MS14154-10 Circuit Breaker

Part#: MS14154-10 NSN: 5925-01-085-1216

About this product Three phase, 10 amps, trip free. * Manufacturer certifications are shipped with your order FREE of charge

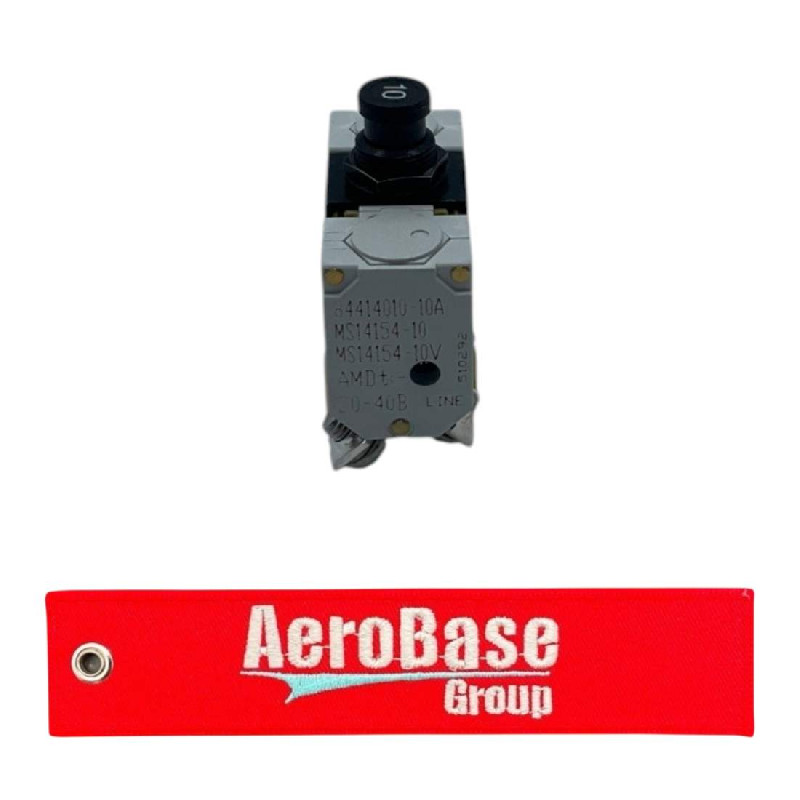

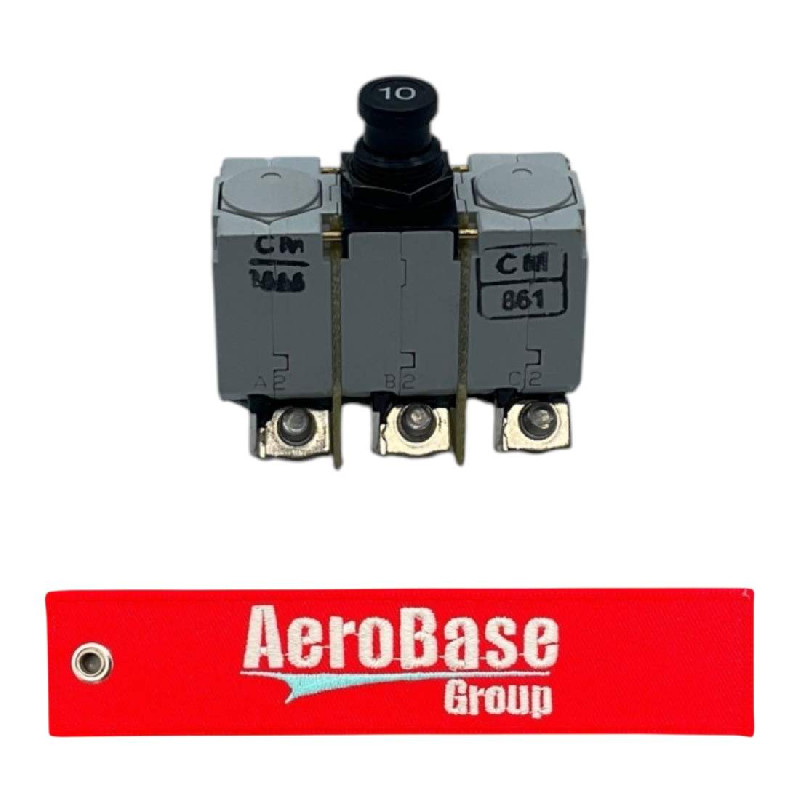

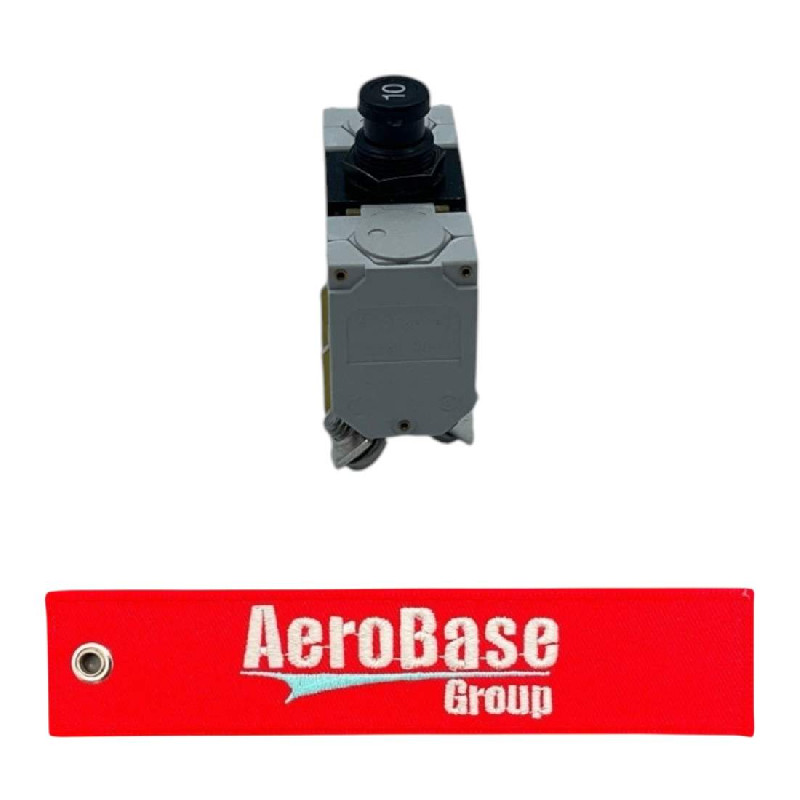

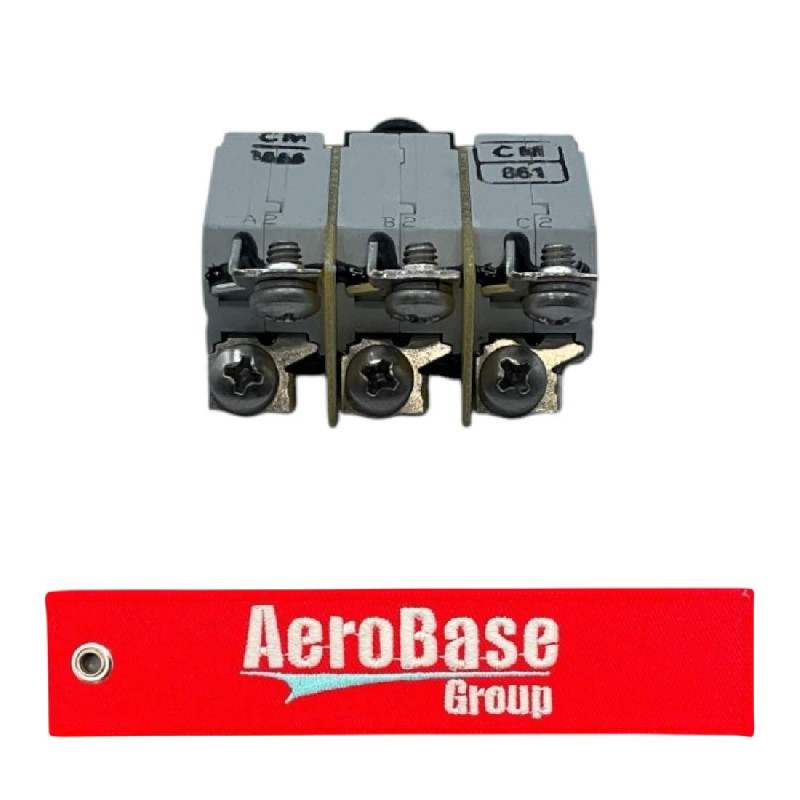

Product Images
MS14154-10 MS14154-10 MS14154-10 MS14154-10 MS14154-10

Product Details

Part Number or Model MS14154-10
Description Circuit Breaker
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Series Designator Uns
Thread Qty Per Inch (tpi) 32
Terminal Type And Quantity 6 screw
Storage Type General purpose warehouse
Reset Method Manual
Pole Quantity 3
Operating Voltage Type And Rating Per Pole In Volts 200 ac all locations
Mounting Facility Type And Quantity 1 threaded bushing
Maximum Interrupting Capacity Current Type And Rating Per Pole I 5000 ac all locations
Maximum Continuous Load Current Rating Per Pole 10 amperes ac all locations
Manual Actuator Type And Quantity 1 push-pull
Main Contact Tripping Mechanism Type Trip free
Internal Trip Release Configuration Series trip all locations
Inclosure Protection Type For Which Designed Fungus proof and shockproof and vibrationproof
Frequency In Hertz 400 all locations
Fragility Factor Moderately rugged
Circuit Protection Type Overcurrent all locations
Center To Center Distance Between Terminals Parallel To Width 0.593 inches minimum and 0.655 inches maximum
Center To Center Distance Between Terminals Parallel To Length 0.469 inches minimum and 0.531 inches maximum
Case Material Plastic
Bushing Length 0.219 inches minimum and 0.281 inches maximum
Body Style Multipole single actuator type
Body Width 1.840 inches maximum
Body Height 1.381 inches maximum
Body Length 0.781 inches maximum
Arc Quenching Method Magnetic blowout
Actuator Function Trip-reset
Actuator Position Designation At pole two
Thread Size 0.469 inches
Trip Delay Time In Seconds Per Rated Continuous Current 4.00 minimum at 200 pct all locations and 20.000 maximum at 200 pct all locations
Trip Release Ambient Tempurature Rating 25 degree celsius nominal all locations
Trip Release Characteristic Time delay all locations
Trip Release Method Thermal all locations
Ultimate Trip Rating Of Continuous Current Rating Per Pole In Pe 135.0 all locations

Add to Cart

Up to quantity 4 ships same day.
buy now $214.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5925-01-085-1216
  • Manufactured By
    Crouzet
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 6TC2-10
