MS51957-3 Machine Screw

Part#: MS51957-3 NSN: 5305-00-054-5637

About this product Pan head MS51957-3 machine screw. * Manufacturer certifications are shipped with your order FREE of charge

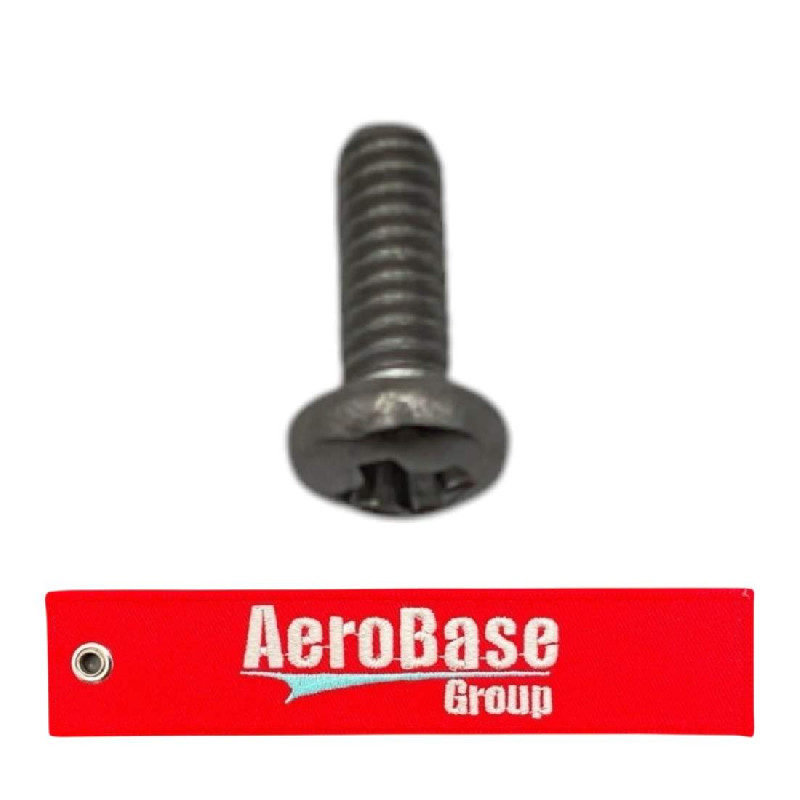

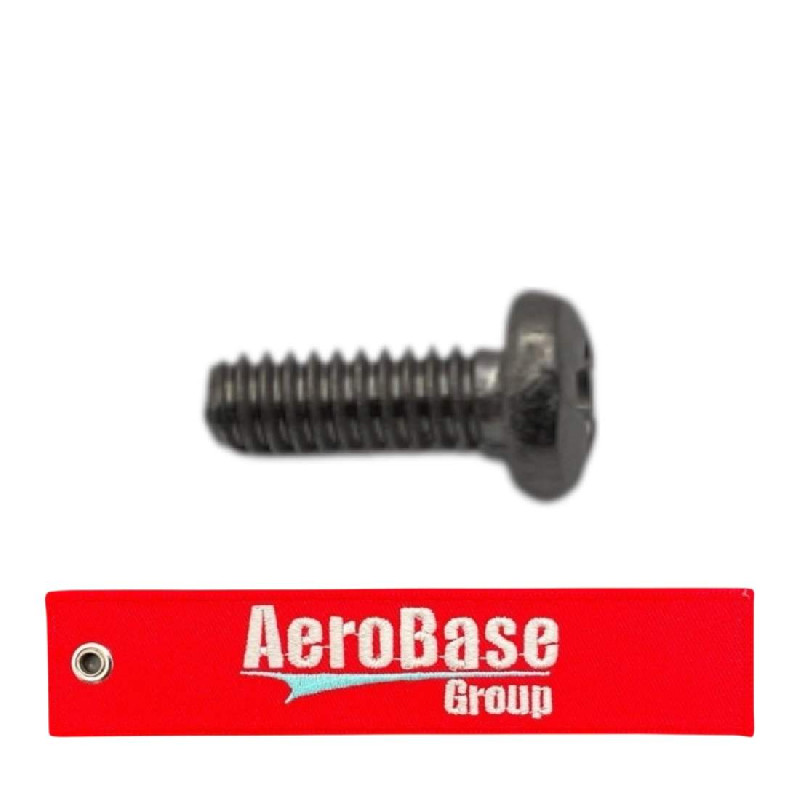

Product Images
MS51957-3 MS51957-3 MS51957-3

Product Details

Part Number or Model MS51957-3
Description Machine Screw
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Qty Per Inch (tpi) 56
Thread Length 0.214 inches minimum and 0.250 inches maximum
Thread Direction Right-hand
Thread Series Designator Unc
Thread Class 2a
Thread Diameter 0.086 inches
Screw Surface Treatment Specification Qq-p-35 fed spec single treatment response
Screw Surface Treatment Passivate
Screw Material Specification 66 federal standard all material responses
Screw Material Steel comp
Min. Tensile Strength (psi) 80000 pounds per square inch
Internal Drive Style Cross recess type 1
Head Style Pan
Head Height 0.053 inches minimum and 0.062 inches maximum
Head Diameter 0.155 inches minimum and 0.167 inches maximum
Fastener Length 0.219 inches minimum and 0.250 inches maximum
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5305-00-054-5637
  • Manufactured By
    Crescent Mfg.
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5305-00-054-5637
  • 5305000545637
  • MS519573
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
