Crescent Mfg. MS27039-1-08 Machine Screw

Part#: MS27039-1-08 NSN: 5305-00-781-9057

About this product pan head machine screw primarily utilized as a structural fastener in aerospace, automotive, and industrial manufacturing applications. * Manufacturer certifications are shipped with your order FREE of charge

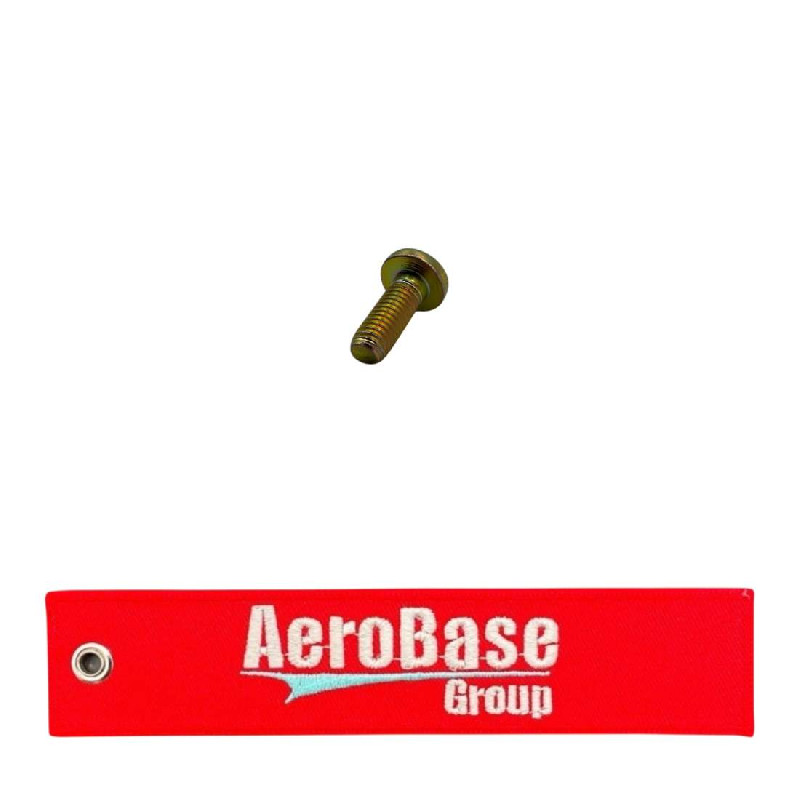

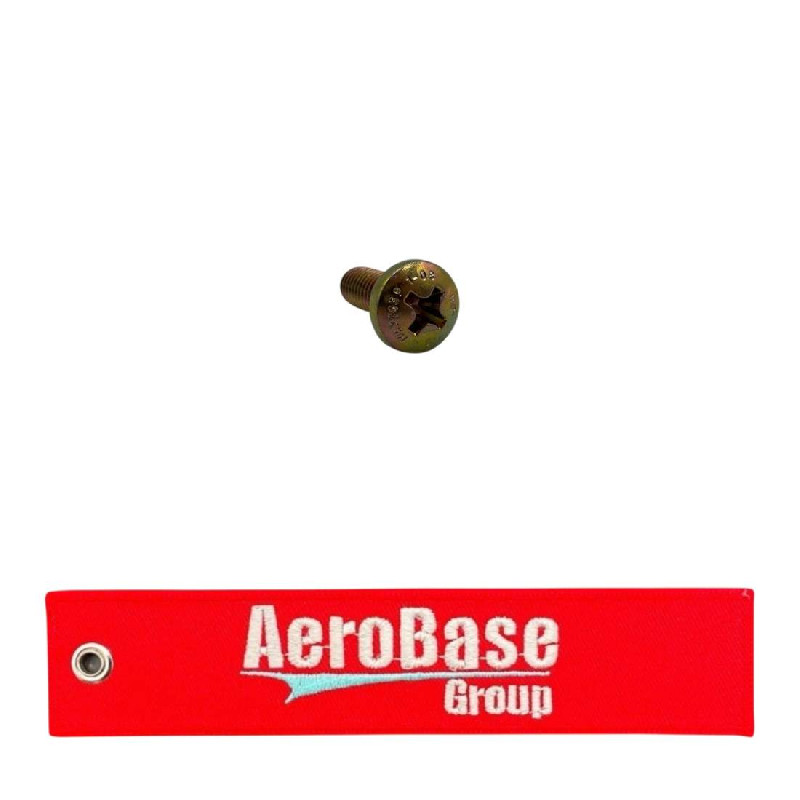

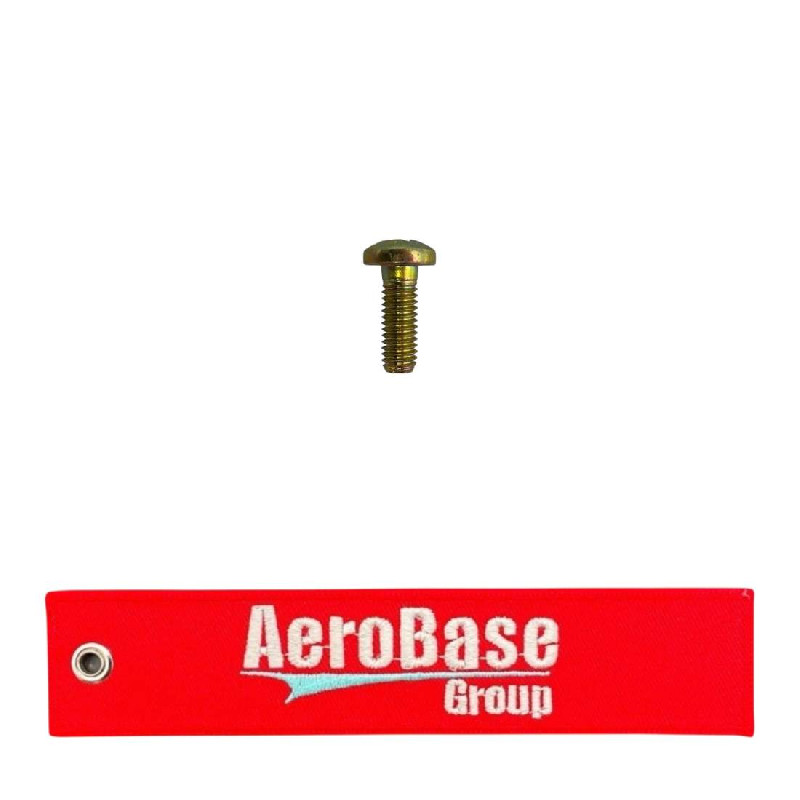

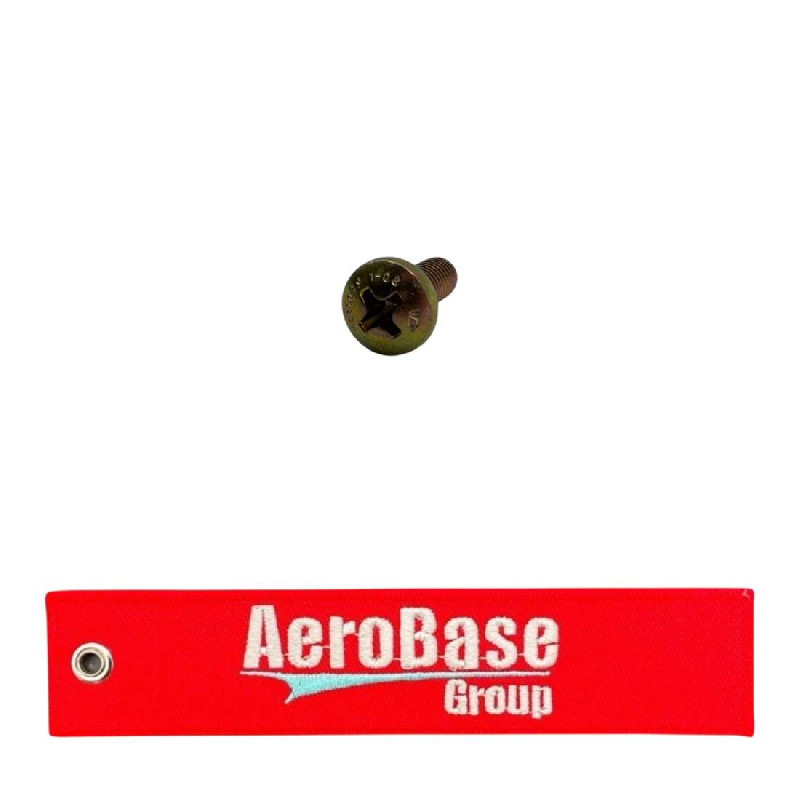

Product Images

Product Details

Part Number or Model	MS27039-1-08
Description	Machine Screw
Schedule B Class	7318.15.9000
ECCN (Export Control Class)	EAR99
Thread Class	3a
Thread Diameter	0.190 inches
Screw Surface Treatment Specification	Qq-p-416 type 2 class 3 fed spec all treatment responses
Screw Surface Treatment	Cadmium and chromate
Screw Material	Steel comp
Min. Tensile Strength (psi)	125000 pounds per square inch
Head Style	Pan
Internal Drive Style	Cross recess type 1
Head Height	0.122 inches minimum and 0.133 inches maximum
Head Diameter	0.357 inches minimum and 0.373 inches maximum
Fastener Length	0.516 inches minimum and 0.563 inches maximum
Thread Direction	Right-hand
Thread Length	0.377 inches minimum and 0.516 inches maximum
Thread Qty Per Inch (tpi)	32
Thread Series Designator	Unf
Drive Type	Cross-recessed (Phillips style)
