Conesys MS24266R12B12SN Electrical Plug Connector

Part#: MS24266R12B12SN NSN: 5935-00-782-7266

About this product MS24266R12B12SN Electrical Plug Connector. * Manufacturer certifications are shipped with your order FREE of charge

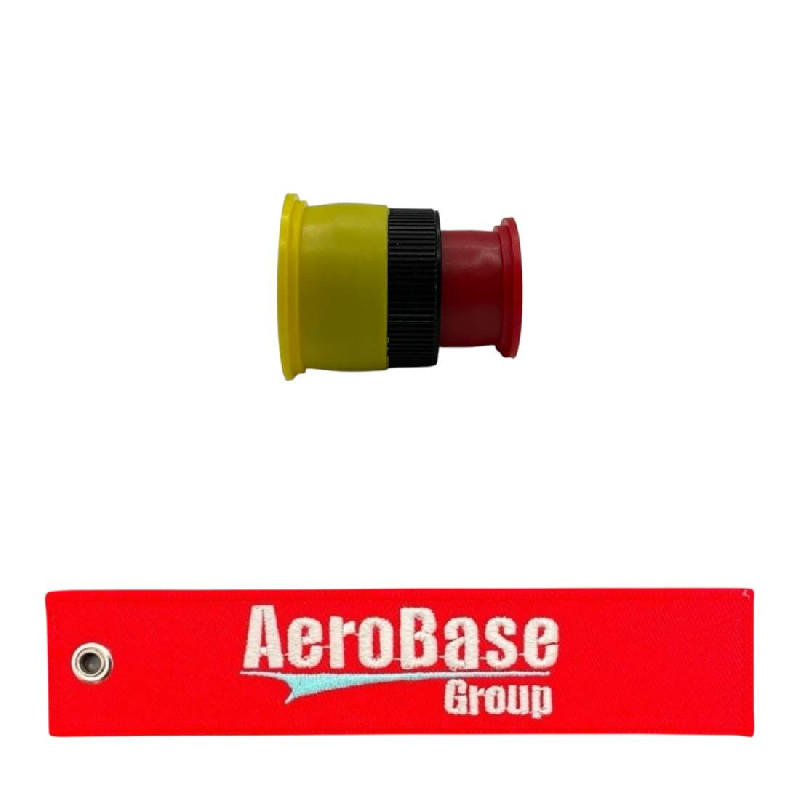

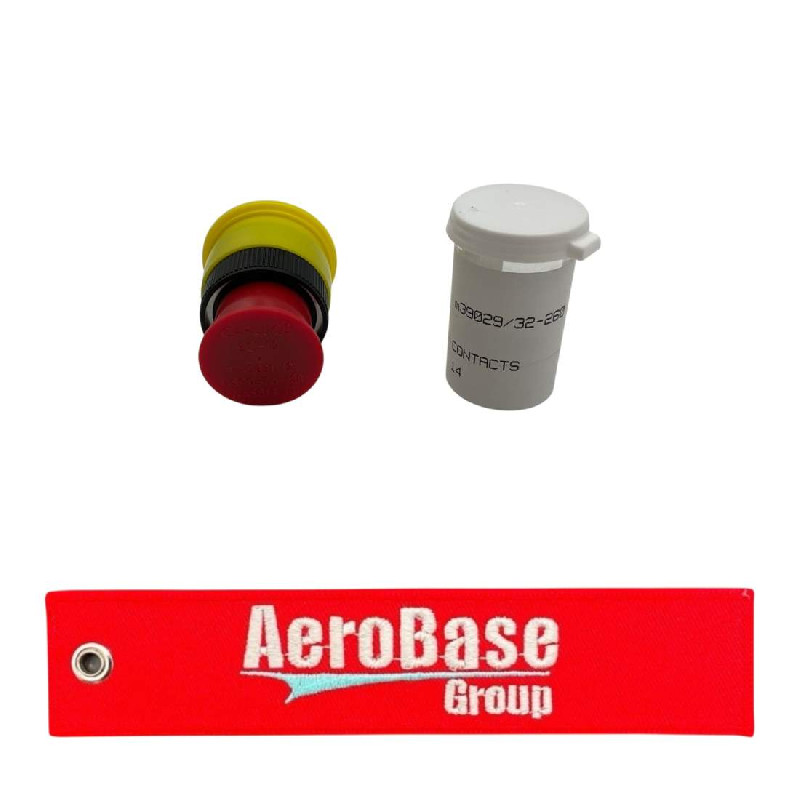

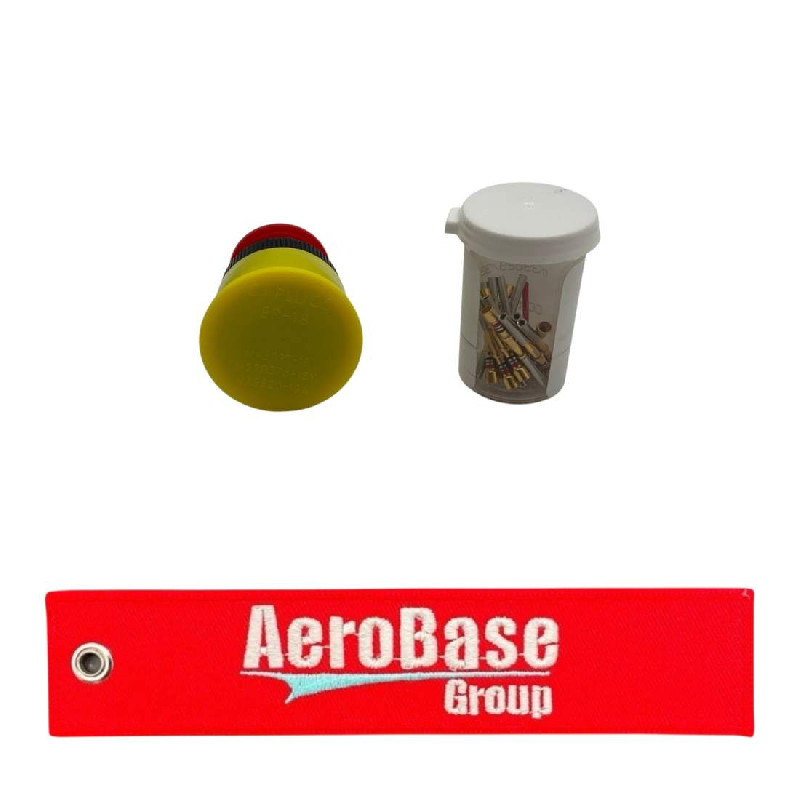

Product Images
MS24266R12B12SN MS24266R12B12SN MS24266R12B12SN MS24266R12B12SN

Product Details

Part Number or Model MS24266R12B12SN
Description Electrical Plug Connector
Schedule B Class 8536.69.5050
ECCN (Export Control Class) EAR99
Body Length 1.625 inches minimum and 2.140 inches maximum
Body Style Straight shape, internal coupling w/strain relief
Cable Entrance Diameter 0.312 inches minimum
Connector Cable Strain Relief Method Cable clamp
Connector Locking Method Bayonet latch
Contact Material Copper alloy single mating end single contact grouping
Contact Maximum Current Rating In Amps 7.5 single mating end single contact grouping
Contact Position Arrangement Style 12-dec single mating end
Contact Position Arrangement Style 12-12 single mating end
Contact Removability Removable single mating end single contact grouping
Contact Surface Treatment Gold single mating end single contact grouping
Contact Surface Treatment Specification Mil-g-45204 type 2, class 2 mil spec single treatment response single mating end single contact grouping
Environmental Protection Pressure proof and moisture resistant and vibration resistant
Included Contact Quantity 12 single mating end single contact grouping
Included Contact Type Round socket single mating end single contact grouping
Insert Position In Deg 0.0
Mating End Quantity 1
Thread Size 0.875 inches
Overall Diameter 1.078 inches maximum
Polarization Method Keyway or multiple keyway
Precious Material Gold
Precious Material And Location Contact surfaces gold
Precious Material And Weight 0.012 gold grains, troy
Shell Material Aluminum alloy 6061
Shell Material Specification Qq-a-325, grade t6 federal spec single material response
Shell Surface Treatment Anodize
Shell Type Solid
Special Features Reliability level x
Terminal Location Back single mating end single contact grouping
Terminal Type Crimp single mating end single contact grouping
Thread Class 2b
Thread Direction Right-hand
Thread Series Designator Unef
Threaded Device Type Coupling facility

Add to Cart

Up to quantity 24 ships same day.
buy now $75.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-782-7266
  • Package Weight (oz)
    1.504
  • Manufactured By
    Conesys
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5935007827266
  • 5935-00-782-7266
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
