NAS1352N6-14 Screw

Part#: NAS1352N6-14 NSN: 5305-01-389-6392

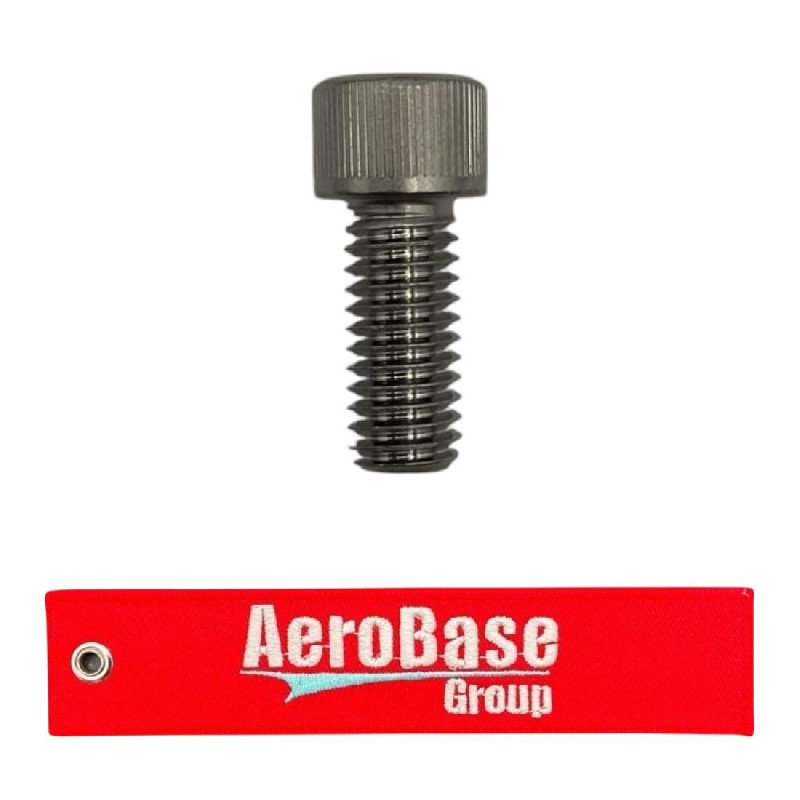

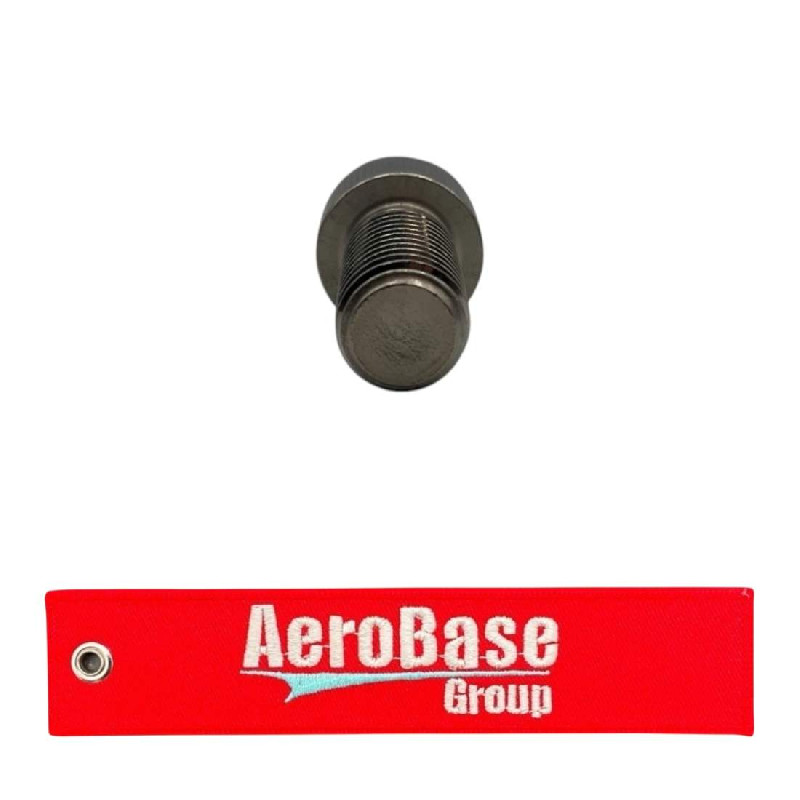

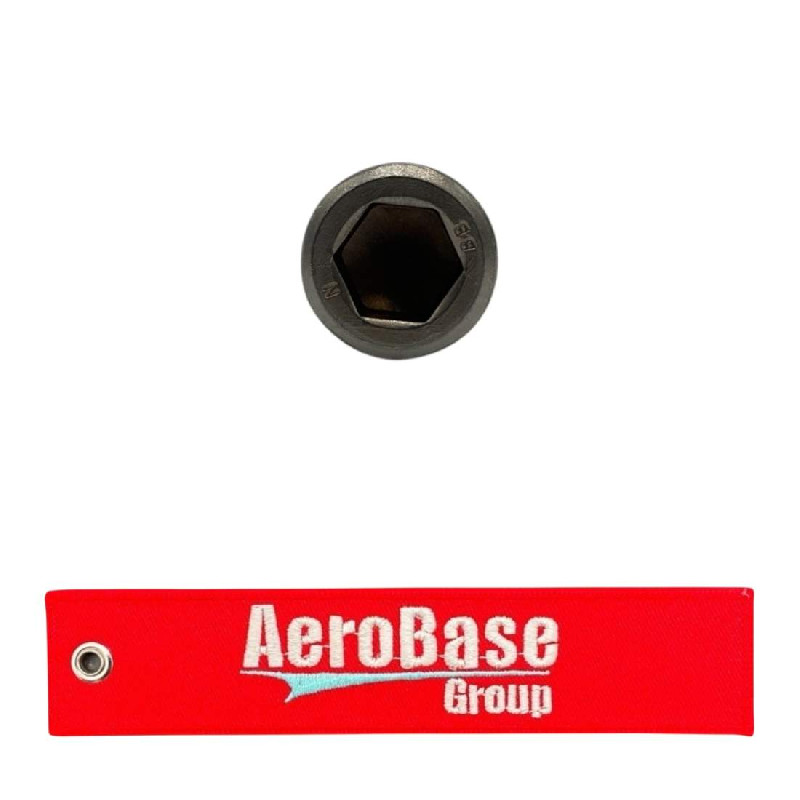

About this product 3/8-16 X 7/8", socket head. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	NAS1352N6-14
Description	Screw
Schedule B Class
ECCN (Export Control Class)	EAR99
Fastener Length	0.845 inches minimum and 0.875 inches maximum
Hardness Rating	33.0 rockwell c minimum overall and 42.0 rockwell c maximum overall
Head Diameter	0.550 inches minimum and 0.562 inches maximum
Head Height	0.368 inches minimum and 0.375 inches maximum
Head Style	Flat chamfer
Internal Drive Style	Hexagon
Material	Iron alloy 660 overall
Material Specification	Ams 5731 assn std single material response overall or ams 5737 assn std single material response overall
Min. Tensile Strength (psi)	160000 pounds per square inch
Thread Diameter	0.375 inches
Surface Treatment	Passivate overall
Surface Treatment Specification	Qq-p-35 fed spec single treatment response overall
Thread Class	3a
Thread Direction	Right-hand
Thread Length	0.875 inches maximum
Thread Qty Per Inch (tpi)	16
Thread Series Designator	Unrc
Width Across Flats	0.3125 inches minimum and 0.3160 inches maximum

Pricing and Availability

We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
