MS3106F18-13S Connector

Part#: MS3106F18-13S NSN: 5935-00-506-4191

About this product 4 position MS3106F18 series connector. * Manufacturer certifications are shipped with your order FREE of charge

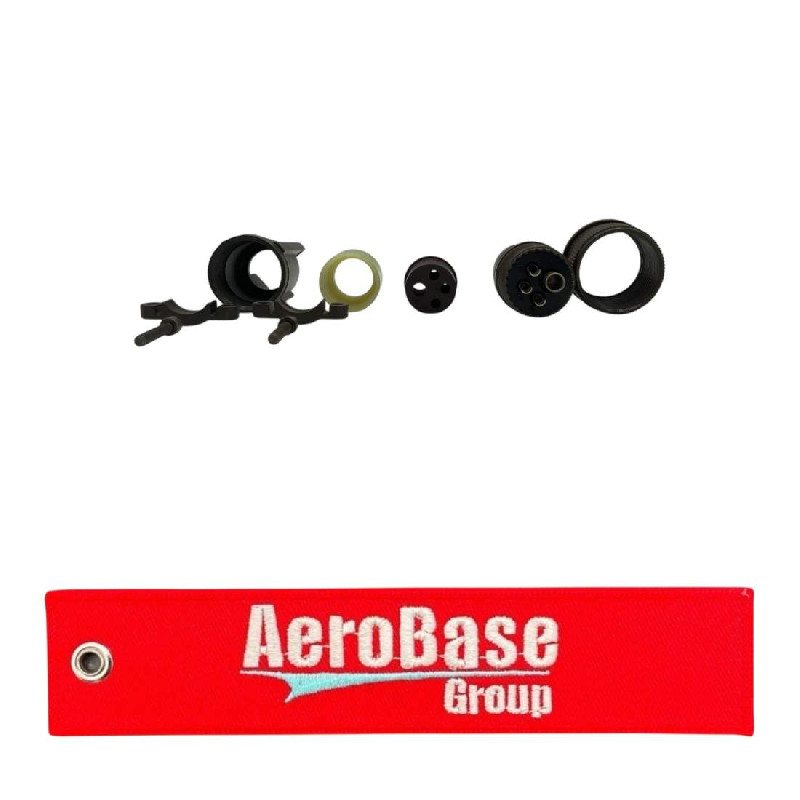

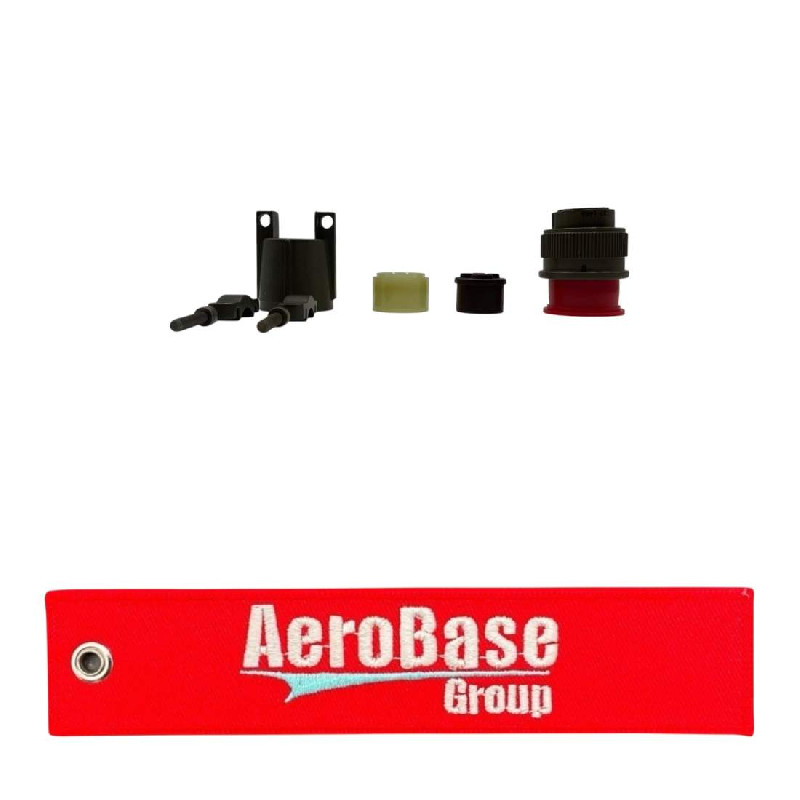

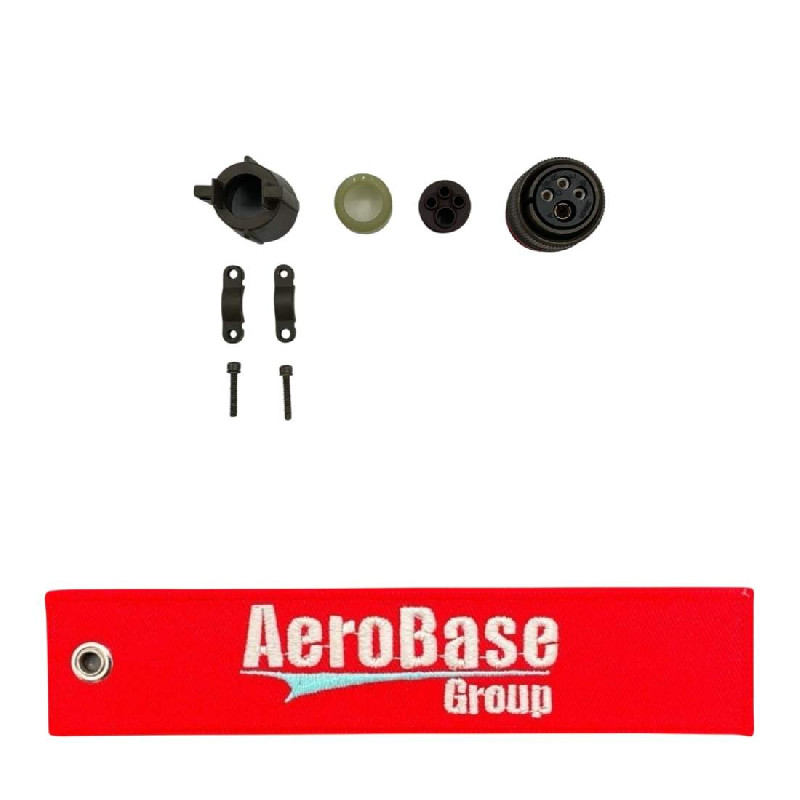

Product Images
MS3106F18-13S MS3106F18-13S MS3106F18-13S MS3106F18-13S

Product Details

Part Number or Model MS3106F18-13S
Description Connector
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Size 1.125 inches
Threaded Device Type Coupling facility
Thread Series Designator Unef
Thread Class 2b
Thread Direction Right-hand
Thread Length 0.563 inches and 0.625 inches
Terminal Type Solder well single mating end all contact groupings
Terminal Location Back single mating end all contact groupings
Shell Type Solid
Specification Data 81349-mil-c-5015 government specification
Shell Surface Treatment Cadmium
Shell Surface Treatment Specification Qq-p-416 type 2 class 3 fed spec single treatment response
Shell Material Aluminum alloy
Overall Diameter 1.609 inches maximum
Polarization Method Keyway or multiple keyway
Insert Position In Degree 0.0
Mating End Quantity 1
Included Contact Type Round socket single mating end all contact groupings
Included Contact Quantity 3 single mating end 2nd contact grouping
Included Contact Quantity 1 single mating end 1st contact grouping
Contact Position Arrangement Style 18-33 single mating end
Environmental Protection Moisture resistant and vibration resistant and salt water resistant
Contact Removability Nonremovable single mating end all contact groupings
Contact Maximum Current Rating In Amps 73.0 single mating end 1st contact grouping
Contact Maximum Current Rating In Amps 41.0 single mating end 2nd contact grouping
Contact Maximum Dc Voltage Rating In Volts 700.0 single mating end all contact groupings
Connector Locking Method Internally threaded coupling ring
Contact Maximum Ac Voltage Rating In Volts 500 single mating end all contact groupings
Connector Cable Strain Relief Method Cable clamp
Cable Entrance Diameter 0.531 inches minimum
Body Style Straight shape, internal coupling with strain relief
Body Length 2.781 inches maximum

Add to Cart

Up to quantity 4 ships same day.
buy now $59.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-00-506-4191
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS3106F1813S
  • 5935005064191
  • 5935-00-506-4191
