M85049/9-9W Backshell

Name: Backshell
Brand: Amphenol
SKU: 5935011705812
Price: 52.95 USD
Availability: InStock

Part#: M85049/9-9W NSN: 5935-01-170-5812

About this product M85049/9-9W Backshell. * Manufacturer certifications are shipped with your order FREE of charge

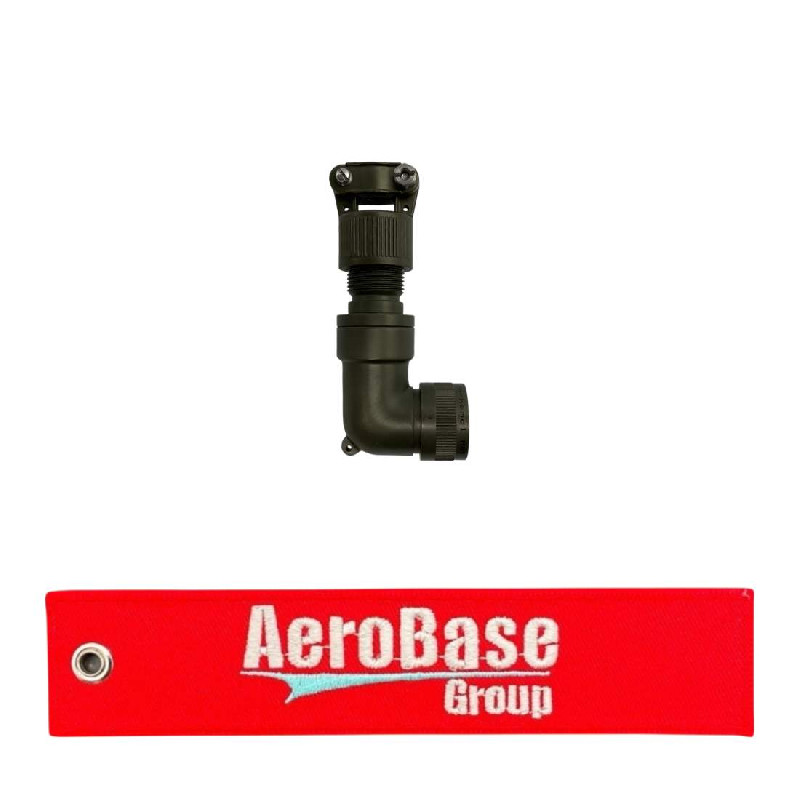

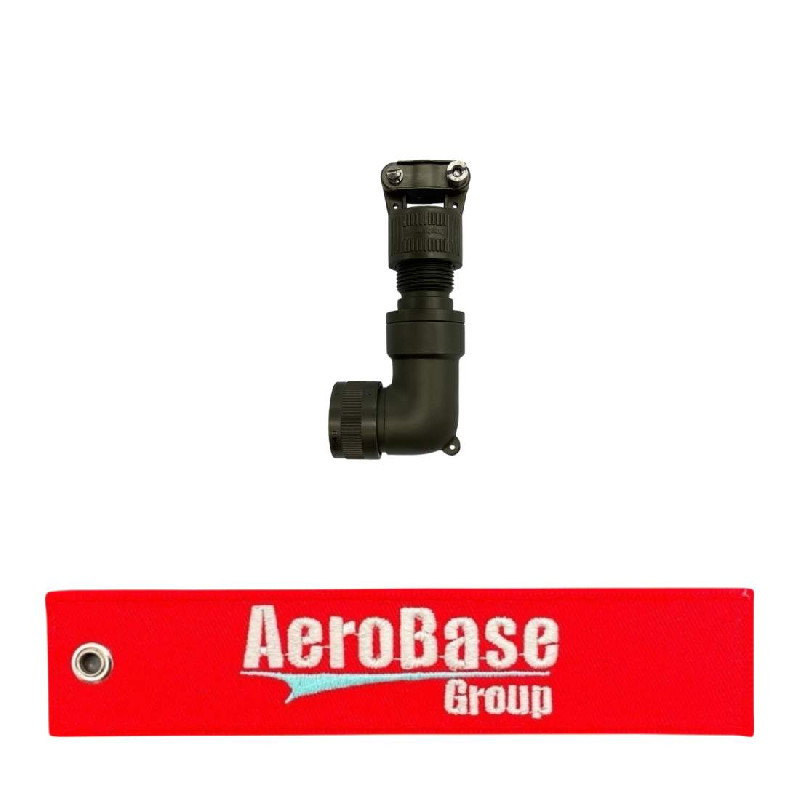

Product Images

Product Details

Part Number or Model	M85049/9-9W
Description	Backshell
Schedule B Class
ECCN (Export Control Class)	EAR99
Unable To Decode	Unable to decode
Thread Size	0.875 inches
Thread Series Designator	Unef
Thread Qty Per Inch (tpi)	20
Thread Length	0.290 inches
Thread Direction	Right-hand
Thread Class	2b
Surface Treatment	Cadmium and chromate
Style Designator	Angle type with clamp
Specification Data	81349-mil-c-85049/9 government specification
Size Designation	12 and 14 and 14s
Overall Width	Any acceptable
Distance From Centerline To Cable End	3.037 inches nominal
Distance From Centerline To Connector End	Any acceptable
Material	Aluminum alloy
Mounting Facility Type And Quantity	1 threaded coupling
Cable Opening Quantity	1
Cable Opening Diameter	0.250 inches minimum and 0.437 inches maximum
Body Angle In Deg	90.0

Up to quantity 15 ships same day.

buy now $52.95

each

Request a quote Call for questions and assistance
+1 (321) 802-5889

AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
