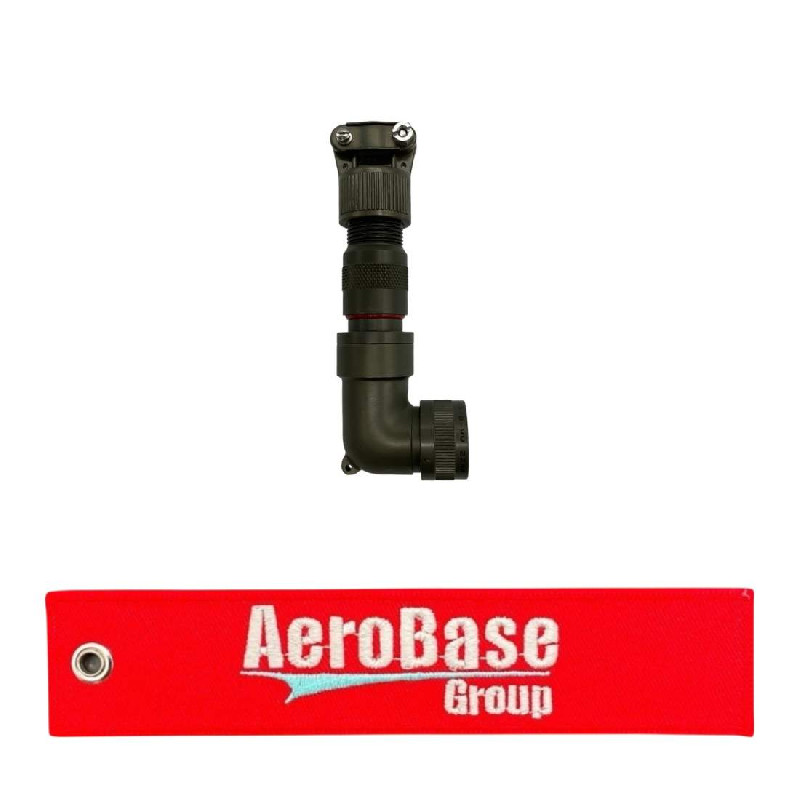

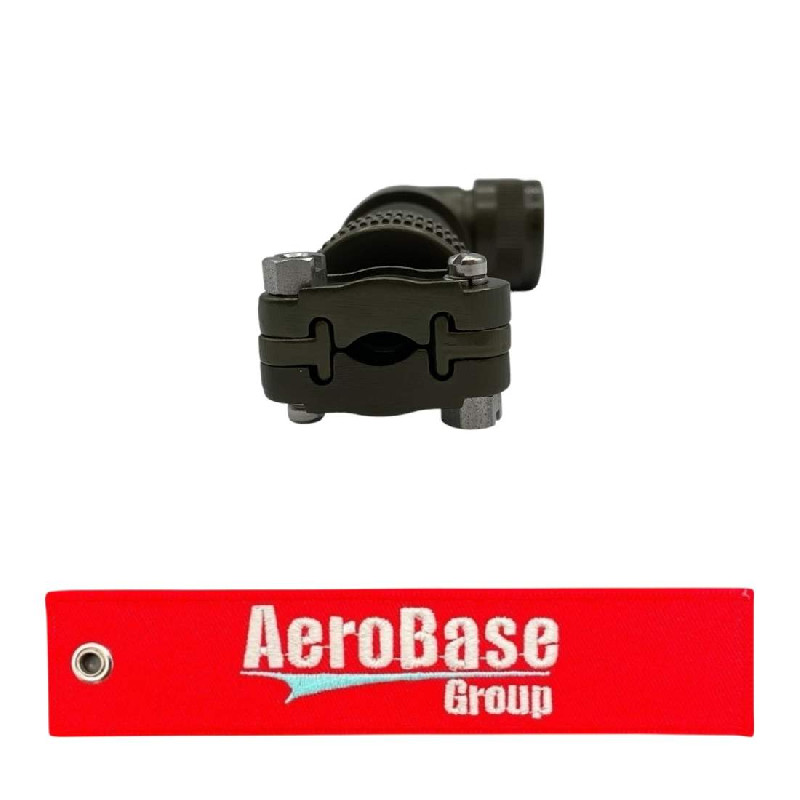

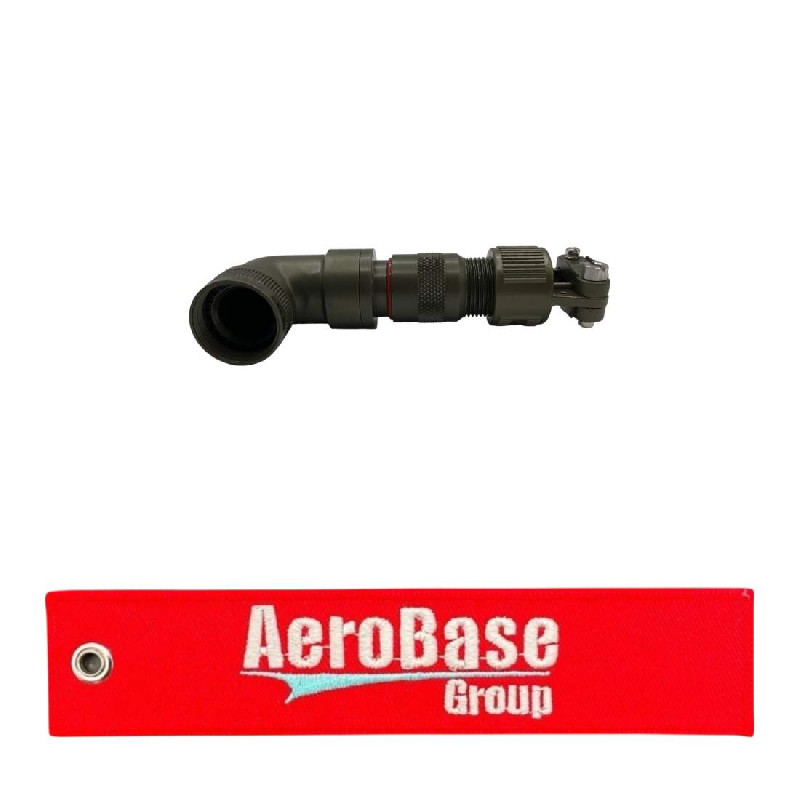

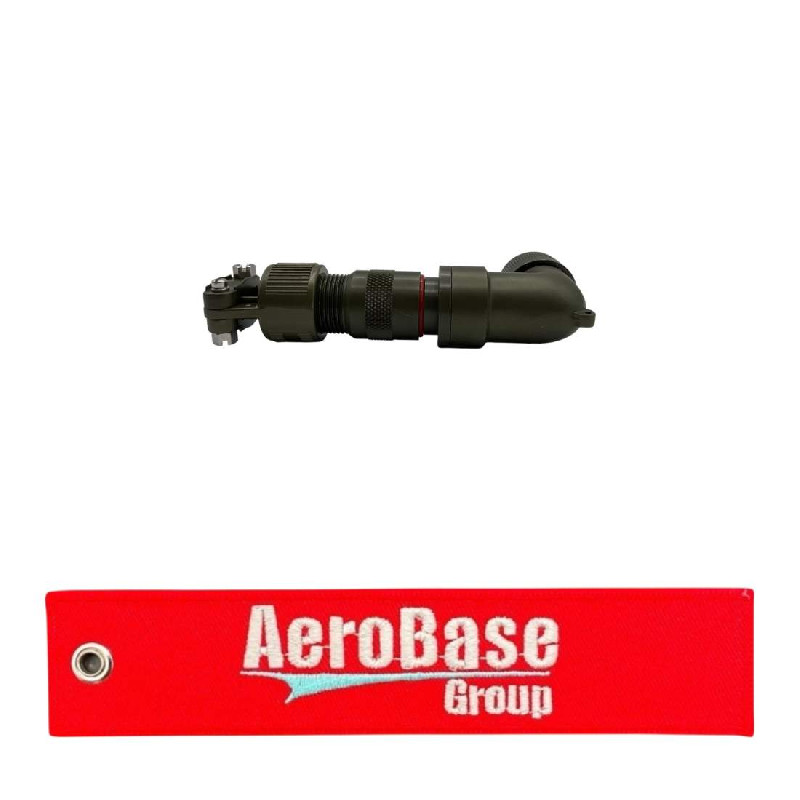

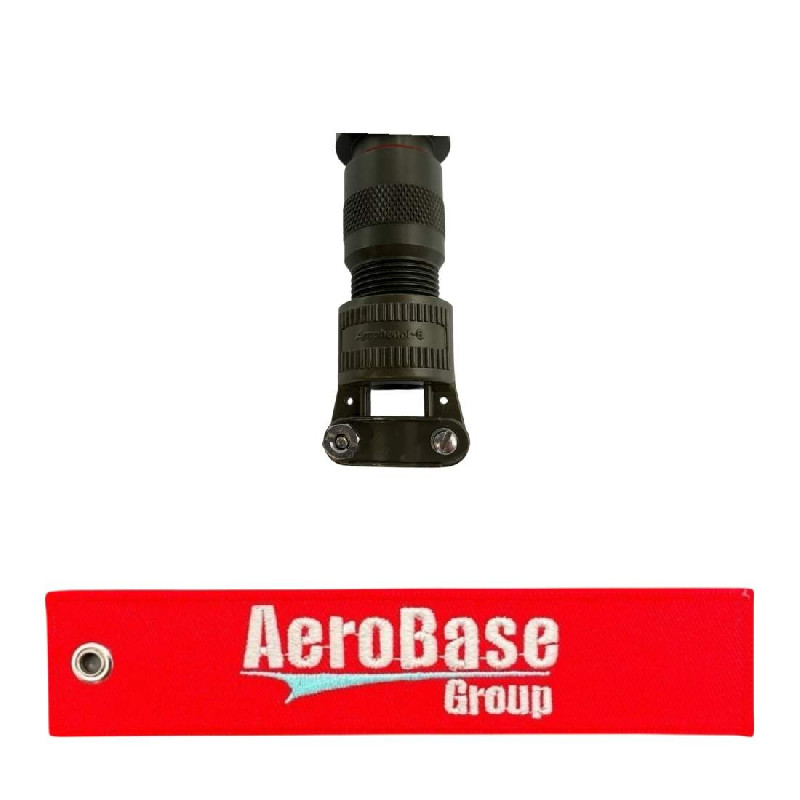

Amphenol M85049/8-9W Backshell

Name: Backshell
Brand: Amphenol
SKU: 5935011891927
Price: 57.95 USD
Availability: InStock

Part#: M85049/8-9W NSN: 5935-01-189-1927

About this product M85049/8-9W Backshell. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

Product Details

Part Number or Model	M85049/8-9W
Description	Backshell
Schedule B Class	8538.90.7080
ECCN (Export Control Class)	EAR99
Body Angle In Degree	90.0
Cable Opening Diameter	0.250 inches minimum and 0.437 inches maximum
Cable Opening Quantity	1
Distance From Centerline To Cable End	3.554 inches nominal
Distance From Centerline To Connector End	1.616 inches nominal
Material	Aluminum alloy
Mounting Facility Type And Quantity	1 threaded coupling
Thread Length	0.290 inches
Thread Size	0.875 inches
Overall Width	1.312 inches nominal
Seal Material	Plastic
Seal Type	Grommet
Size Designation	12 and 14 and 14s
Style Designator	Angle type w/clamp
Surface Treatment	Cadmium and chromate
Surface Treatment	Cadmium and chromate
Thread Class	2b
Thread Direction	Right-hand
Thread Qty Per Inch (tpi)	20
Thread Series Designator	Unef

Up to quantity 15 ships same day.

buy now $57.95

each
