M85049/2918W07 Backshell

Part#: M85049/2918W07 NSN: 5935-01-325-9466

About this product M85049/2918W07 Backshell. * Manufacturer certifications are shipped with your order FREE of charge

Product Images

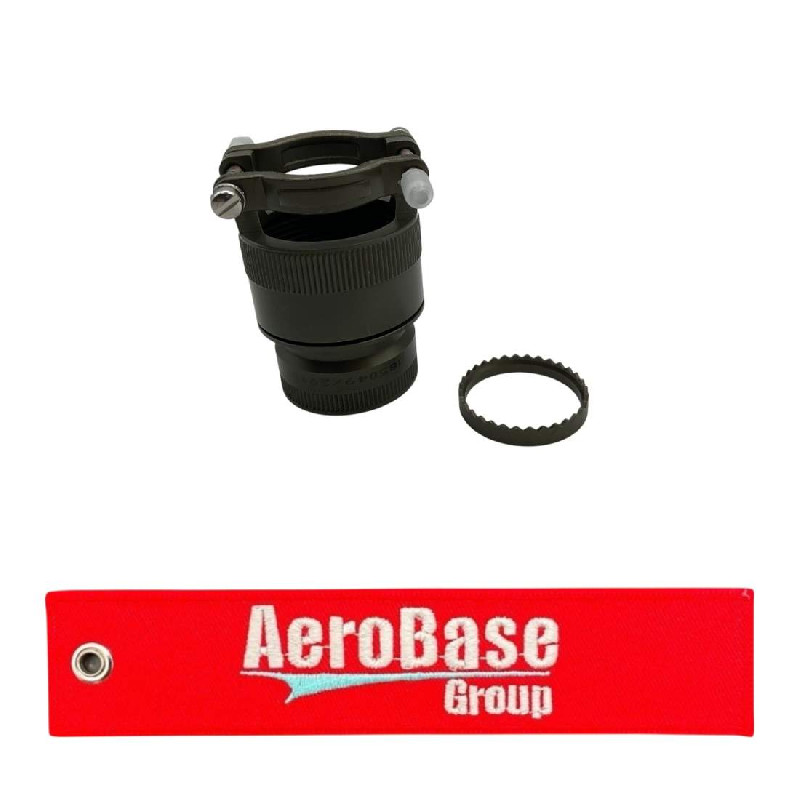

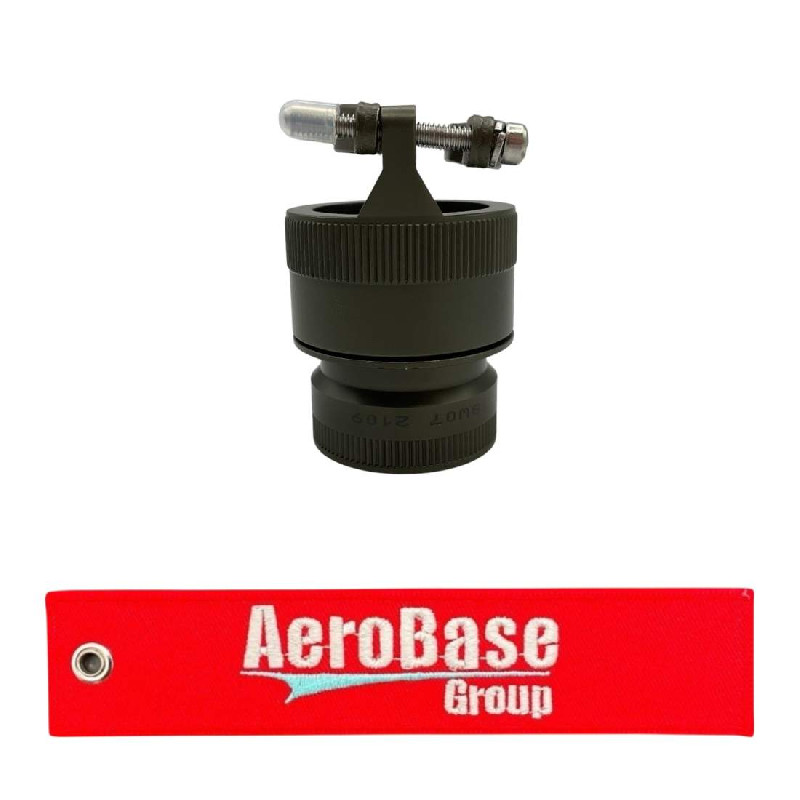

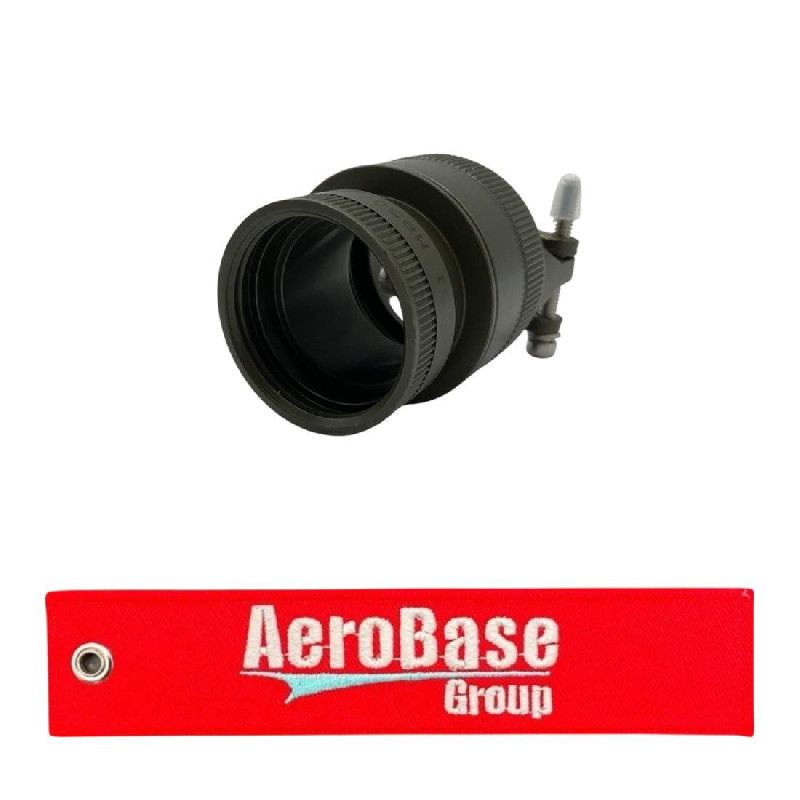

M85049/2918W07 M85049/2918W07 M85049/2918W07 M85049/2918W07

Product Details

Part Number or Model M85049/2918W07
Description Backshell
Schedule B Class
ECCN (Export Control Class) EAR99
Cable Opening Diameter 0.687 inches minimum and 0.875 inches maximum
Cable Opening Quantity 1
Material Aluminum alloy
Mounting Facility Type And Quantity 1 threaded coupling
Thread Length 0.219 inches
Thread Size 1.062 inches
Overall Height 1.400 inches nominal
Overall Length 2.344 inches maximum
Overall Width 1.500 inches maximum
Size Designation 18 and 19
Specification Data 81349-mil-c-85049/29 government specification
Style Designator Straight type with cable clamp
Surface Treatment Cadmium
Surface Treatment Cadmium
Thread Class 2b
Thread Direction Right-hand
Thread Qty Per Inch (tpi) 18
Thread Series Designator Unef

Add to Cart

Up to quantity 17 ships same day.
buy now $52.95
each
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5935-01-325-9466
  • Manufactured By
    Amphenol
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • M850492918W07
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
