D38999/26FA98SA Connector

Name: Connector
Brand: Amphenol
SKU: 5935012607232
Price: 114.95 USD
Availability: InStock

Part#: D38999/26FA98SA NSN: 5935-01-260-7232

About this product D38999/26FA98SA Connector. * Manufacturer certifications are shipped with your order FREE of charge

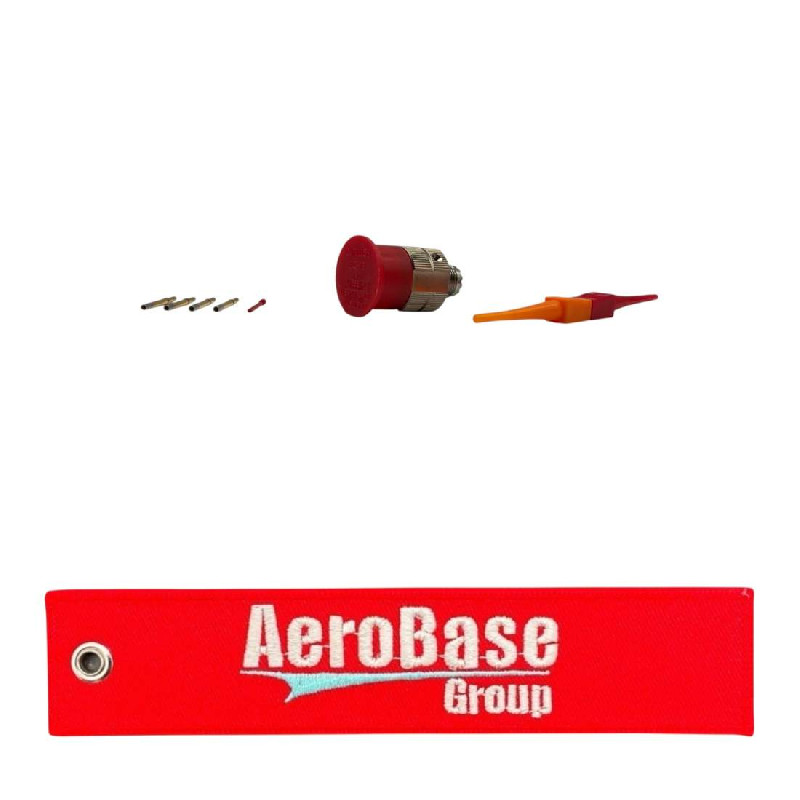

Product Images

Product Details

Part Number or Model	D38999/26FA98SA
Description	Connector
Schedule B Class
ECCN (Export Control Class)	EAR99
Body Style	Straight shape, internal coupling
Connector Locking Method	Internally threaded coupling ring
Contact Material	Copper alloy single mating end single contact grouping
Contact Position Arrangement Style	Sep-98 single mating end
Contact Removability	Removable single mating end single contact grouping
Contact Surface Treatment	Gold single mating end single contact grouping
Contact Surface Treatment Specification	Mil-g-45204 mil spec single treatment response single mating end single contact grouping
Environmental Protection	Moisture proof and salt water resistant and vibration proof and corrosion resistant and dust resistant and fuel resistant and fungus resistant and humidity resistant and oil resistant and shock resistant and thermal shock resistant and vibration resistant
Included Contact Quantity	3 single mating end single contact grouping
Included Contact Type	Round socket single mating end single contact grouping
Insert Material	Plastic epoxy single mating end
Insert Position In Deg	0.0 and 102.0 and 132.0 and 248.0 and 320.0
Mating End Quantity	1
Thread Size	12.0 millimeters and 0.625 inches
Operating Tempurature Rating	-65.0 deg celsius minimum and 200.0 deg celsius maximum
Overall Diameter	21.8 millimeters maximum
Overall Length	33.16 millimeters maximum
Polarization Method	Key, multiple key groove
Precious Material	Gold
Precious Material And Location	Contact surfaces gold
Precious Material And Weight	0.015 gold grains, troy
Shell Material	Aluminum alloy
Shell Surface Treatment	Nickel
Shell Surface Treatment Specification	Mil-c-26074 class 3 or 4, grade b mil spec single treatment response
Shell Type	Solid
Specification Data	81349-mil-c-38999/26 government specification
Terminal Location	Back single mating end single contact grouping
Terminal Type	Crimp single mating end single contact grouping
Thread Class	2b
Thread Direction	Right-hand
Thread Pitch In Millimeters	1.00
Thread Qty Per Inch (tpi)	10
Thread Series Designator	Iso m and special acme
Thread Tolerance Class	6g external
Threaded Device Type	Back shell and coupling facility
