AN3-5A Machine Bolt

Part#: AN3-5A NSN: 5306-00-274-2119

About this product AN3-5A Machine Bolt. * Manufacturer certifications are shipped with your order FREE of charge

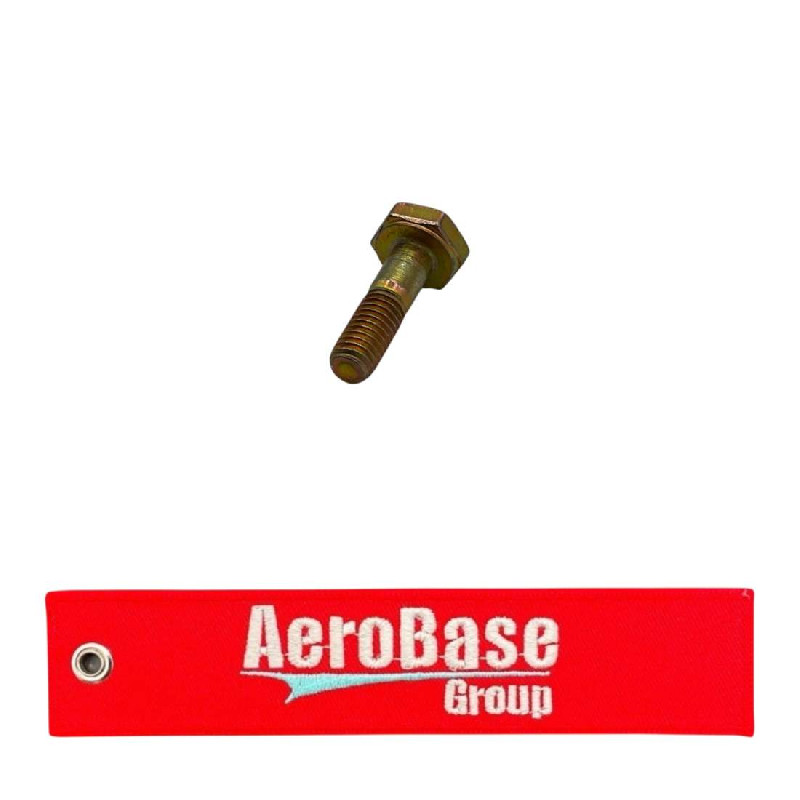

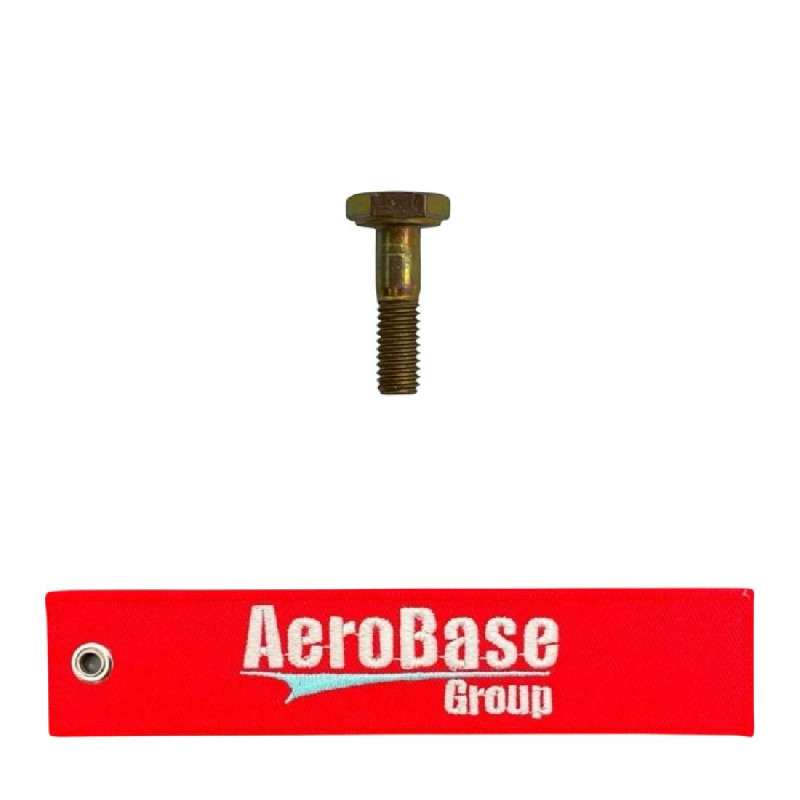

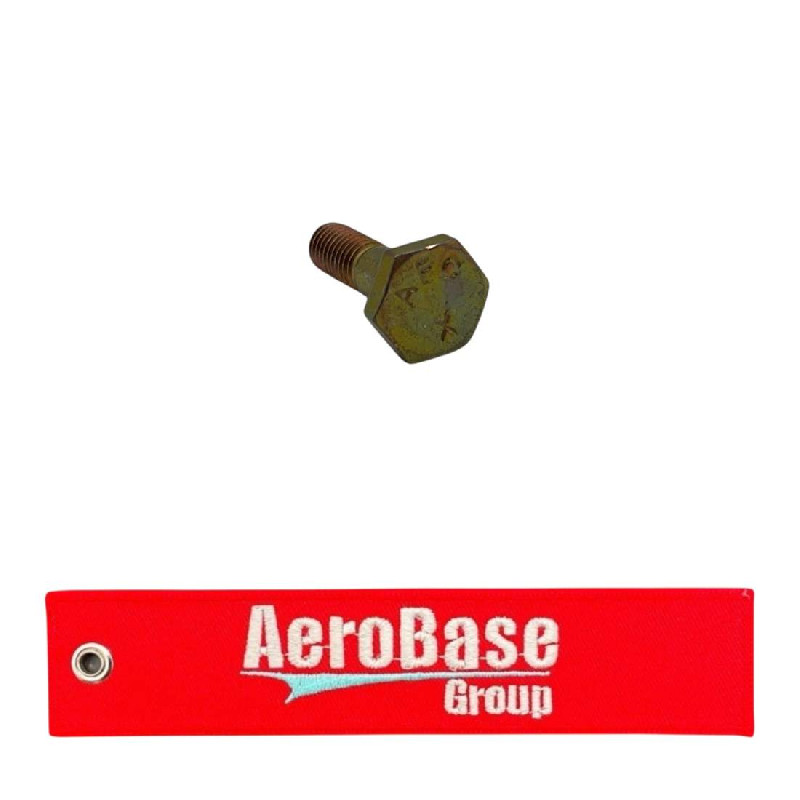

Product Images

Product Details

Part Number or Model	AN3-5A
Description	Machine Bolt
Schedule B Class
ECCN (Export Control Class)	EAR99
Fastener Length	0.656 inches nominal
Features Provided	Finished head
Grip Length	0.250 inches nominal
Hardness Rating	26.0 rockwell minimum overall and 32.0 rockwell c maximum overall
Head Height	0.109 inches minimum and 0.141 inches maximum
Head Style	Hexagon
Material	Steel
Material Specification	Mil-b-6812 mil spec all material responses overall
Min. Tensile Strength (psi)	125000 pounds per square inch
Thread Diameter	0.190 inches
Surface Treatment	Cadmium overall
Surface Treatment Specification	Qq-p-416 federal spec single treatment response overall
Thread Class	3a
Thread Direction	Right-hand
Thread Length	0.406 inches minimum
Thread Qty Per Inch (tpi)	32
Thread Series Designator	Unf
Width Between Flats	0.365 inches minimum and 0.377 inches maximum
