MS21044N3 Self-Locking Nut

Part#: MS21044N3 NSN: 5310-00-877-5797

About this product MS21044N3 Self-Locking Nut. * Manufacturer certifications are shipped with your order FREE of charge

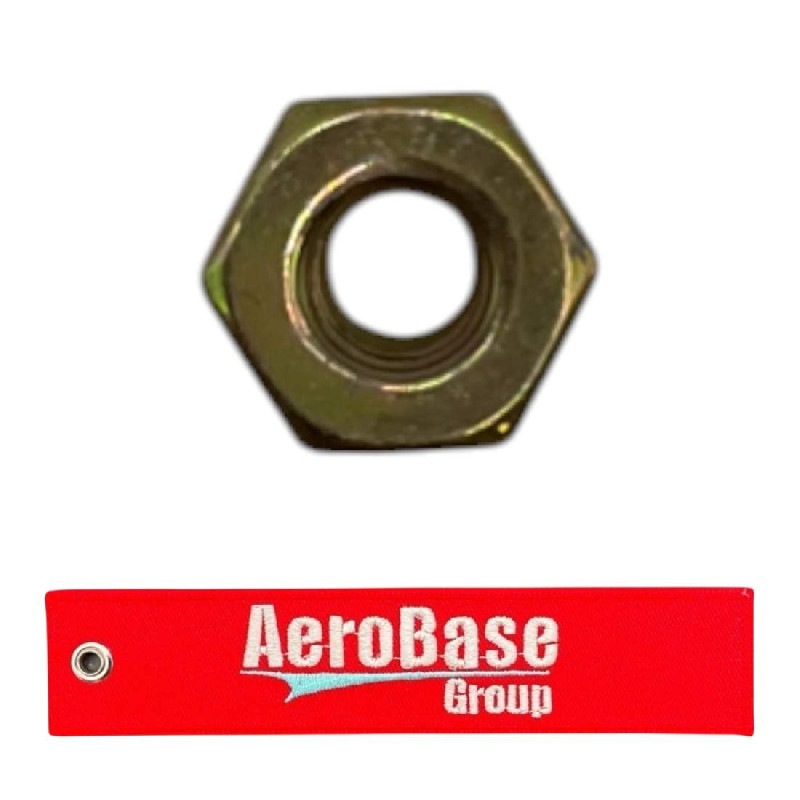

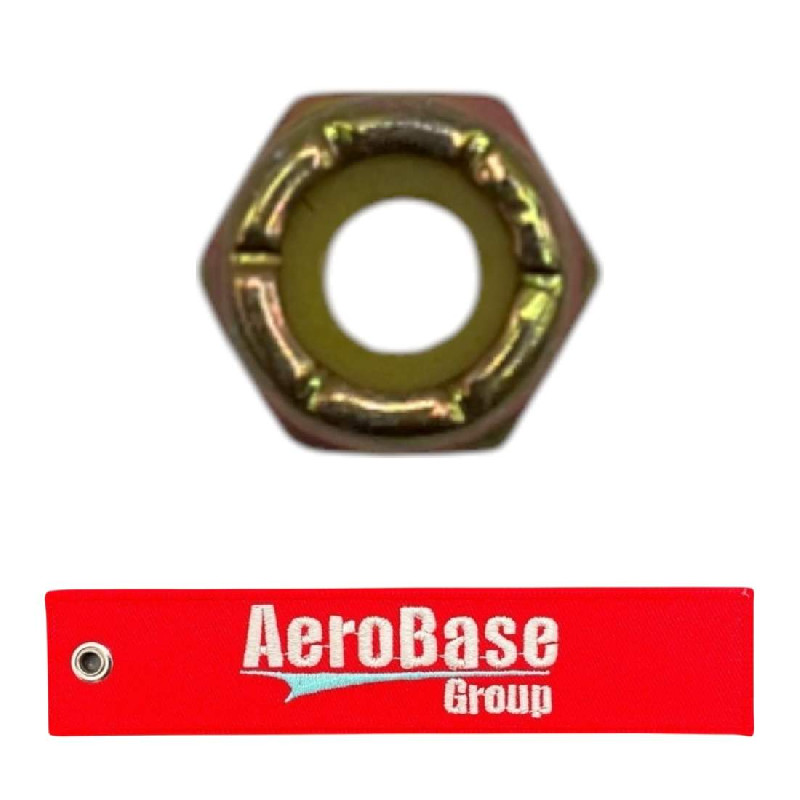

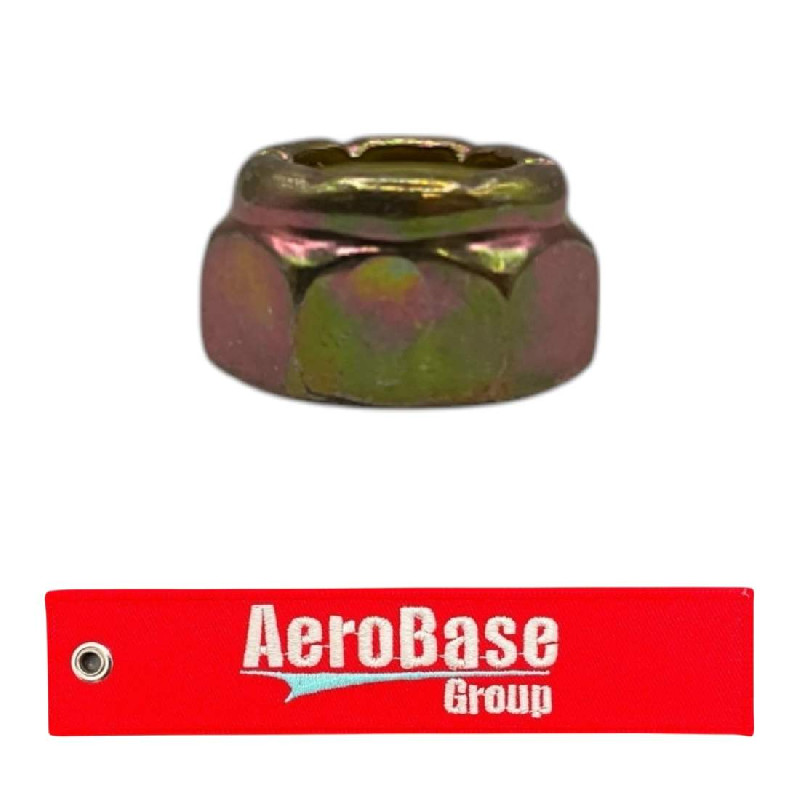

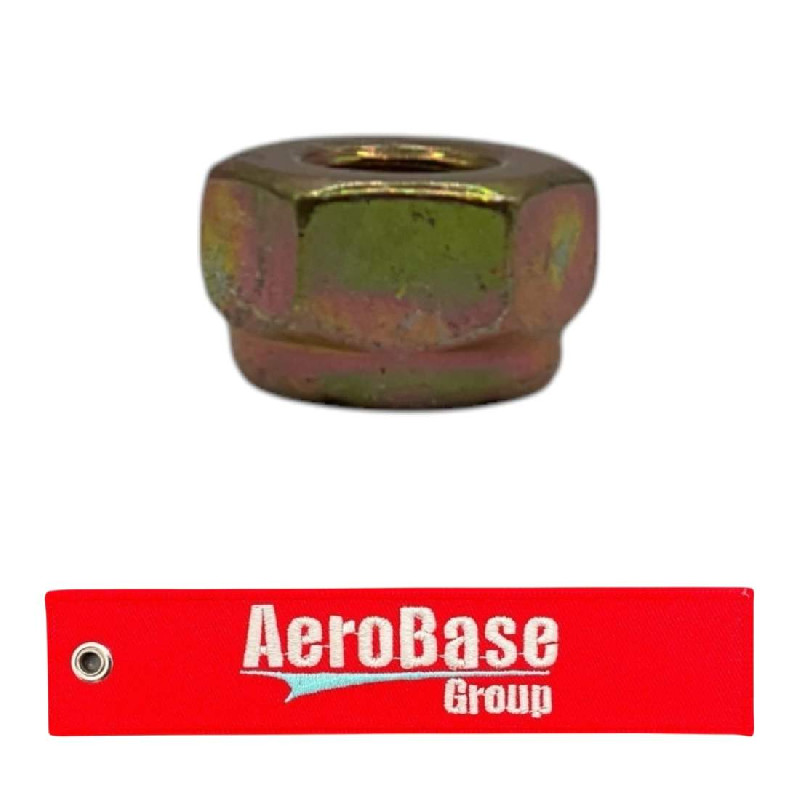

Product Images
MS21044N3 MS21044N3 MS21044N3 MS21044N3

Product Details

Part Number or Model MS21044N3
Description Self-Locking Nut
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Size 0.190 inches
Width Across Flats 0.367 inches minimum and 0.376 inches maximum
Thread Series Unjf
Thread Class 3b
Tempurature Rating 250 degree fahrenheit nominal
Surface Treatment Specification Qq-p-416 type 2 class 3 fed spec single treatment response overall except insert
Thread Direction Right-hand
Surface Type Chamfered or washer faced
Thread Qty Per Inch (tpi) 32
Surface Finish 125.0 microinches
Surface Treatment Cadmium overall except insert and chromate overall except insert
Nut Style Hexagon
Nut Height 0.208 inches minimum and 0.281 inches maximum
Material Steel comp
Lubrication Soluble lubricant
Countersink Angle 88 degrees
Locking Feature Prevailing torque with nonmetallic insert
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5310-00-877-5797
  • Manufactured By
    Abbott Interfast
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5310-00-877-5797
  • 5310008775797
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
