MS51957-46 Machine Screw

Part#: MS51957-46 NSN: 5305-00-054-6671

About this product MS51957-46 Machine Screw. * Manufacturer certifications are shipped with your order FREE of charge

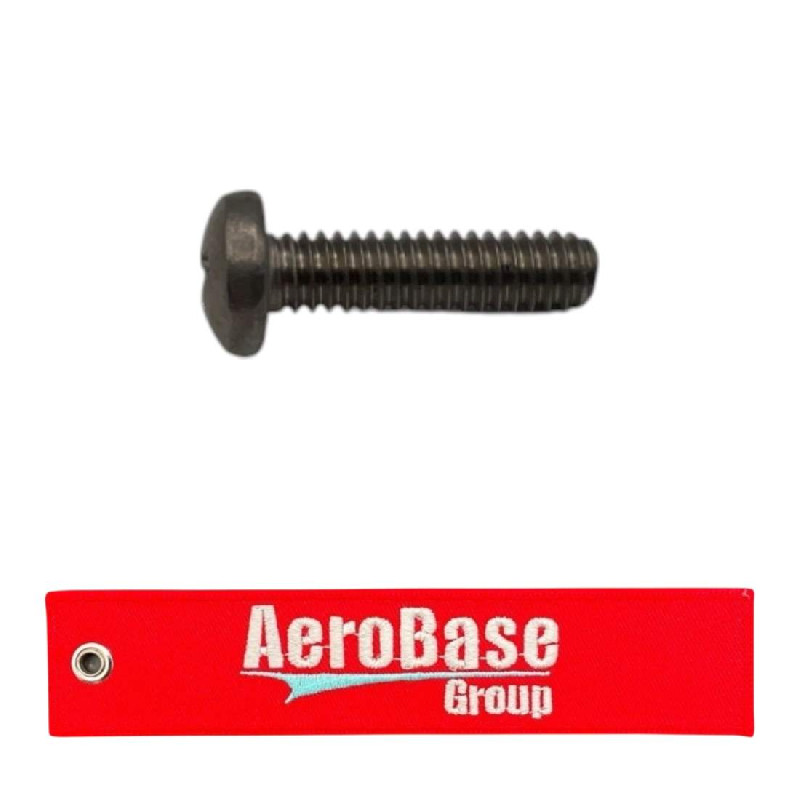

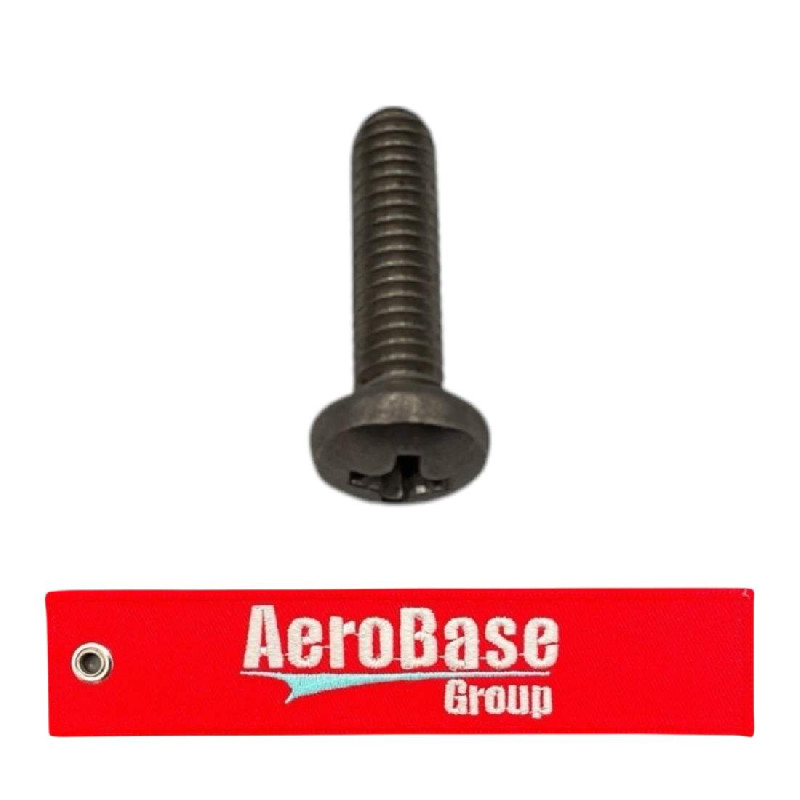

Product Images
MS51957-46 MS51957-46 MS51957-46

Product Details

Part Number or Model MS51957-46
Description Machine Screw
Schedule B Class
ECCN (Export Control Class) EAR99
Thread Class 2a
Screw Surface Treatment Specification Qq-p-35 federal spec single treatment response
Screw Surface Treatment Passivate
Screw Material Specification 66 federal standard all material responses
Screw Material Steel comp
Min. Tensile Strength (psi) 80000 pounds per square inch
Internal Drive Style Cross recess type 1
Head Style Pan
Head Height 0.105 inches minimum and 0.115 inches maximum
Head Diameter 0.306 inches minimum and 0.322 inches maximum
Fastener Length 0.625 inches nominal
Thread Diameter 0.164 inches
Thread Direction Right-hand
Thread Length 0.563 inches minimum and 0.625 inches maximum
Thread Qty Per Inch (tpi) 32
Thread Series Designator Unc
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5305-00-054-6671
  • Manufactured By
    Stillwater Fasteners Inc
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS5195746
  • 5305000546671
  • 5305-00-054-6671
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
