MS24693C26 Machine Screw

Part#: MS24693C26 NSN: 5305-00-958-2918

About this product MS24693C26 Machine Screw. * Manufacturer certifications are shipped with your order FREE of charge

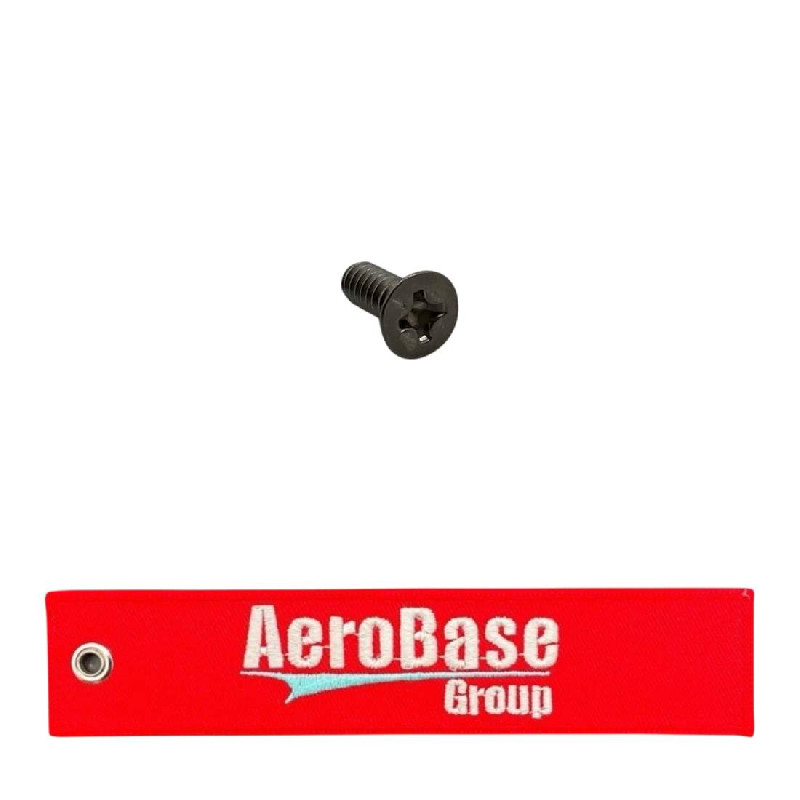

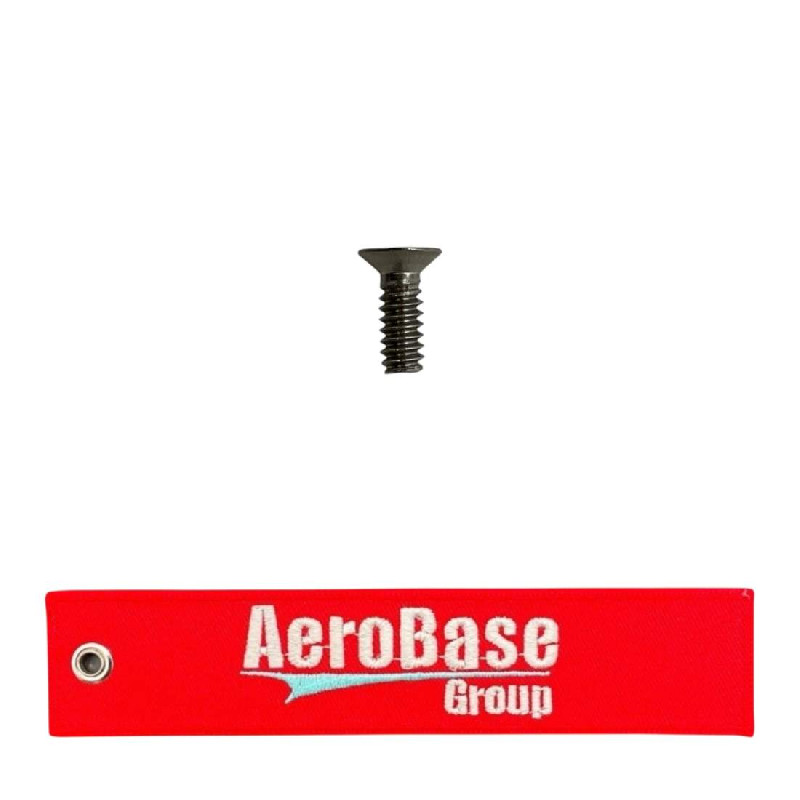

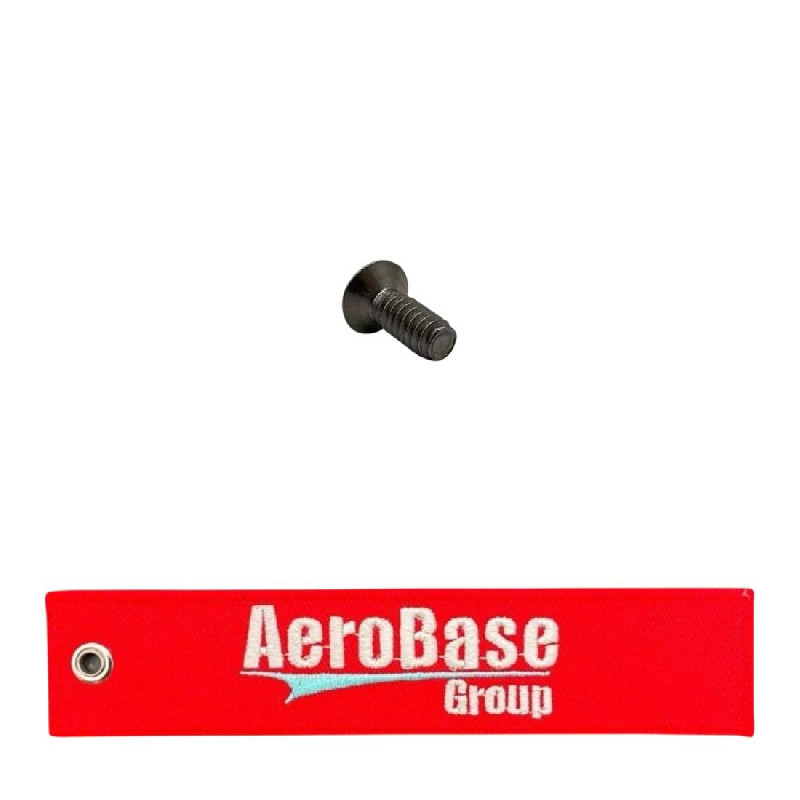

Product Images
MS24693C26 MS24693C26 MS24693C26

Product Details

Part Number or Model MS24693C26
Description Machine Screw
Schedule B Class 7318152000
ECCN (Export Control Class) EAR99
Thread Class 2a
Thread Diameter 0.138 inches
Screw Surface Treatment Passivate
Screw Material Specification 66 federal standard all material responses
Screw Material Steel comp
Internal Drive Style Cross recess type 1
Head Style Flat countersunk
Head Diameter 0.238 inches minimum and 0.279 inches maximum
Fastener Length 0.375 inches nominal
Countersink Angle 99 degrees minimum and 101 degrees maximum
Thread Direction Right-hand
Thread Length 0.312 inches minimum and 0.375 inches maximum
Thread Qty Per Inch (tpi) 32
Thread Series Designator Unc
Tensile Strength Approximately 725 lbf (or 80,000 psi)
Thread Size 6-32 UNC
Industry Cross Reference Fully interchangeable with AN507C632R6 and NASMS24693-C26 standards
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5305-00-958-2918
  • Manufactured By
    North East Fasteners
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5305-00-958-2918
  • 5305009582918
  • MS24693-C26
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
