MS24665-151 Cotter Pin

Part#: MS24665-151 NSN: 5315-00-815-1405

About this product MS24665-151 Cotter Pin. * Manufacturer certifications are shipped with your order FREE of charge

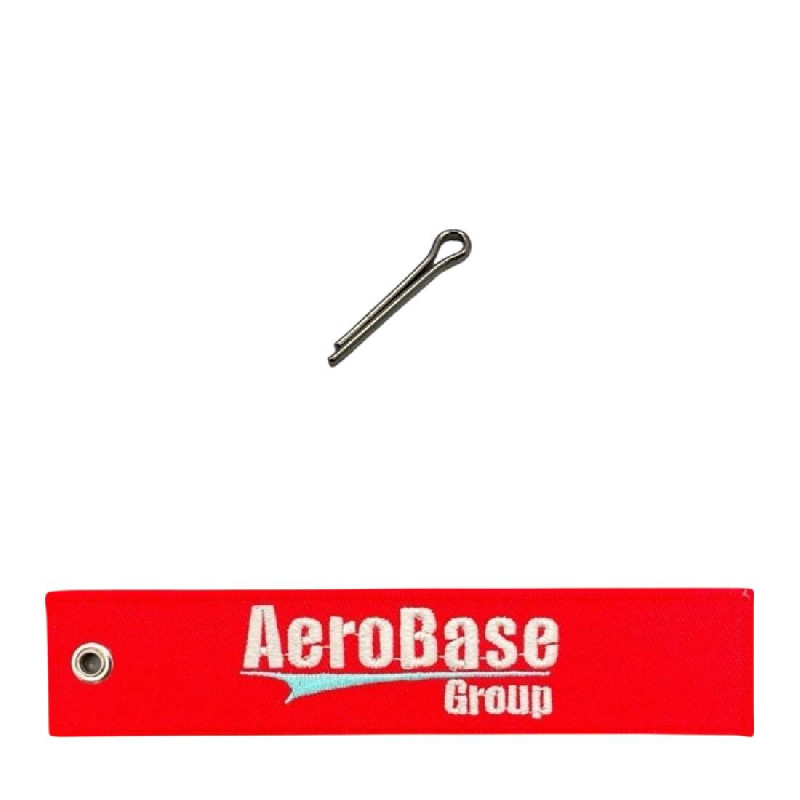

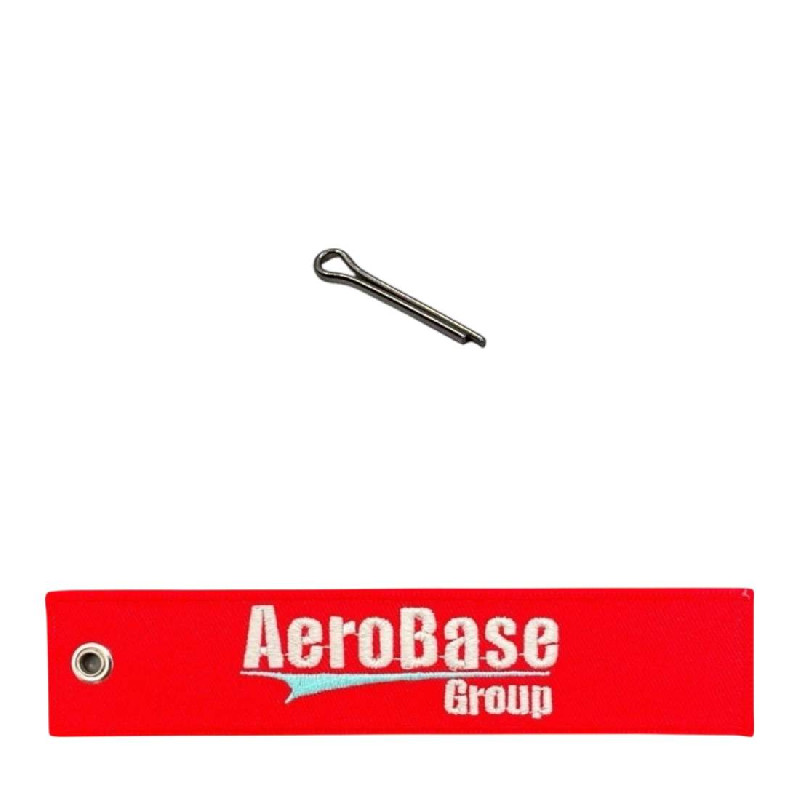

Product Images
MS24665-151 MS24665-151 MS24665-151

Product Details

Part Number or Model MS24665-151
Description Cotter Pin
Schedule B Class 8710000090
ECCN (Export Control Class) EAR99
Hardness Rating 65.0 rockwell superficial 15-n minimum and 78.0 rockwell superficial 15-n maximum overall
Diameter 0.056 inches minimum and 0.060 inches maximum
Material Steel
Material Specification 66 federal standard all material responses overall
Point Type Extended prong square cut
Style Designator Standard
Surface Treatment Passivate overall
Surface Treatment Specification Qq-p-35 federal spec single treatment response overall
Underloop Length 0.438 inches minimum and 0.625 inches maximum
Pricing and Availability
We have this product in stock, but with the high volume of orders we receive for it, an updated price quote needs to be issued. Please submit a request for a quote for updated pricing.

Get a Quote
  • NSN (National stock number)
    5315-00-815-1405
  • Manufactured By
    Western Wire Products
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • MS24665151
  • 5315008151405
  • 5315-00-815-1405
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
ABG is AS9120B ISO:9001 Certified
