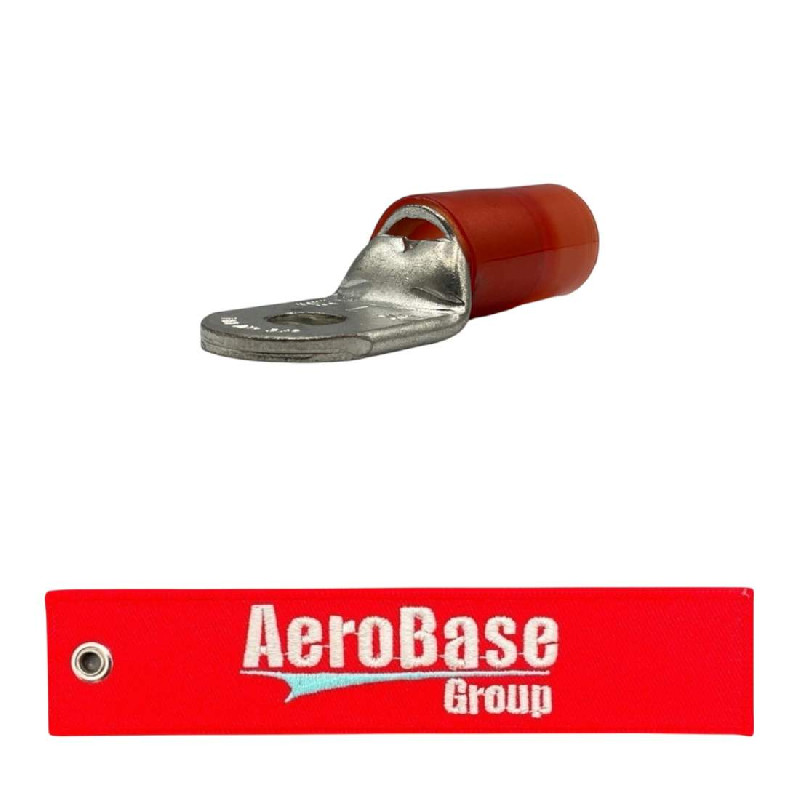

MS25036-138 Terminal Lug

Part#: MS25036-138 NSN: 5940-00-804-0598

About this product MS25036-138 Terminal Lug, Red Sleeve. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model MS25036-138
Description Terminal Lug
Schedule B Class 8536.90.4000
ECCN (Export Control Class) EAR99
Surface Treatment Specification Mil-t-10727,type 1 or type 2 mil spec single treatment response mounting facility single layer
Surface Treatment Tin overall except insulation single layer
Overall Width 1.062 inches
Overall Length 2.894 inches
Mounting Tongue Width 1.062 inches
Mounting Method Style Ring
Mounting Hole Diameter 0.410 inches
Mounting Facility Thickness 0.145 inches
Maximum Conductor Size Accommodated 000 awg
Material Plastic polyamide insulation or plastic vinyl insulation
Material Thickness 0.145 inches
Basic Shape Style Crimp
Conductor Accommodation Type Recessed barrel single end
Electrical Insulation Feature Insulating sleeve
Identification Code Color Red
Material Copper alloy overall except insulation

Add to Cart

Up to quantity 110 ships same day.
buy now $16.00
each, minimum order quantity of 2 Sold in increments of 2
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5940-00-804-0598
  • Package Weight (oz)
    3.024
  • Manufactured By
    Several
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5940008040598
  • MS25036138
  • 5940-00-804-0598
