MS25036-132 Ring Terminal

Part#: MS25036-132 NSN: 5940-00-114-1325

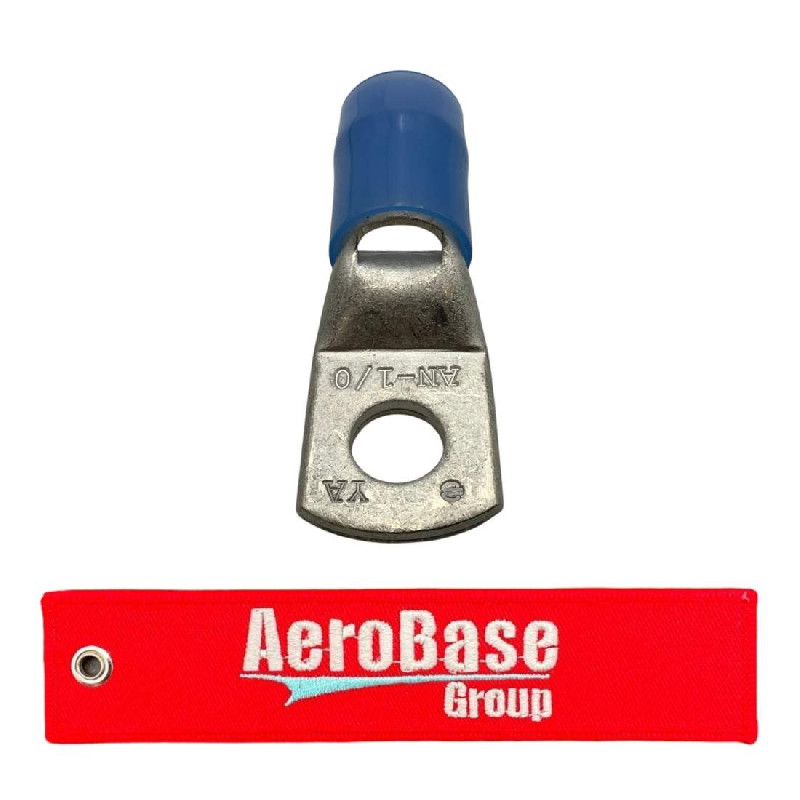

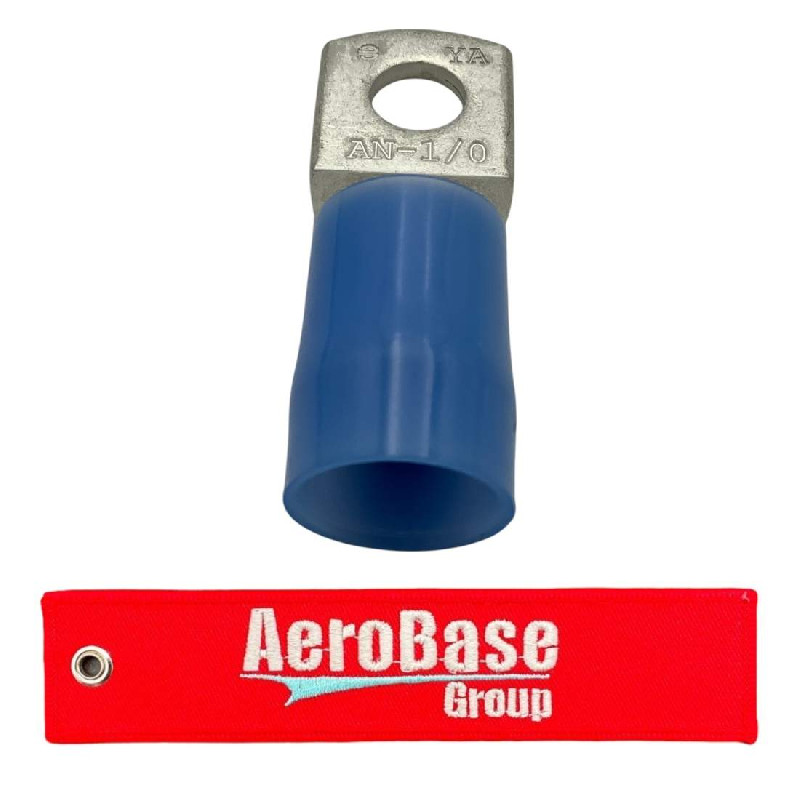

About this product Blue insulated ring terminal. * Manufacturer certifications are shipped with your order FREE of charge

Product Images
MS25036-132 MS25036-132 MS25036-132 MS25036-132 MS25036-132

Product Details

Part Number or Model MS25036-132
Description Ring Terminal
Schedule B Class
ECCN (Export Control Class) EAR99
Surface Treatment Tin except insulation single layer
Surface Treatment Specification Mil-t-10727 mil spec single treatment response overall except insulation single layer
Overall Width 0.831 inches
Overall Length 2.401 inches
Mounting Tongue Width 0.831 inches
Mounting Method Style Ring
Mounting Hole Diameter 0.268 inches
Mounting Facility Thickness 0.098 inches
Material Plastic polyamide insulation or plastic vinyl insulation
Material Specification Qq-c-502 federal spec 1st material response overall except insulation and qq-c-576 fed spec 2nd material response overall except insulation and ww-t-799 fed spec 3rd material response overall except insulation
Maximum Conductor Size Accommodated 0 awg
Material Thickness 0.087 inches
Electrical Insulation Feature Insulating sleeve
Material Copper alloy except insulation
Identification Code Color Blue
Basic Shape Style Crimp
Conductor Accommodation Type Recessed barrel single end

Add to Cart

Up to quantity 90 ships same day.
buy now $9.95
each, minimum order quantity of 5 Sold in increments of 5
Request a quote Call for questions and assistance
  +1 (321) 802-5889
  • NSN (National stock number)
    5940-00-114-1325
  • Manufactured By
    Several
  • ECCN (Export Control Class)
    EAR99

Alternate(s)

  • 5940-00-114-1325
  • 5940001141325
  • MS25036132
AeroBase Group is an ISO 9001:2015 + AS9120B audited and certified supplier.
