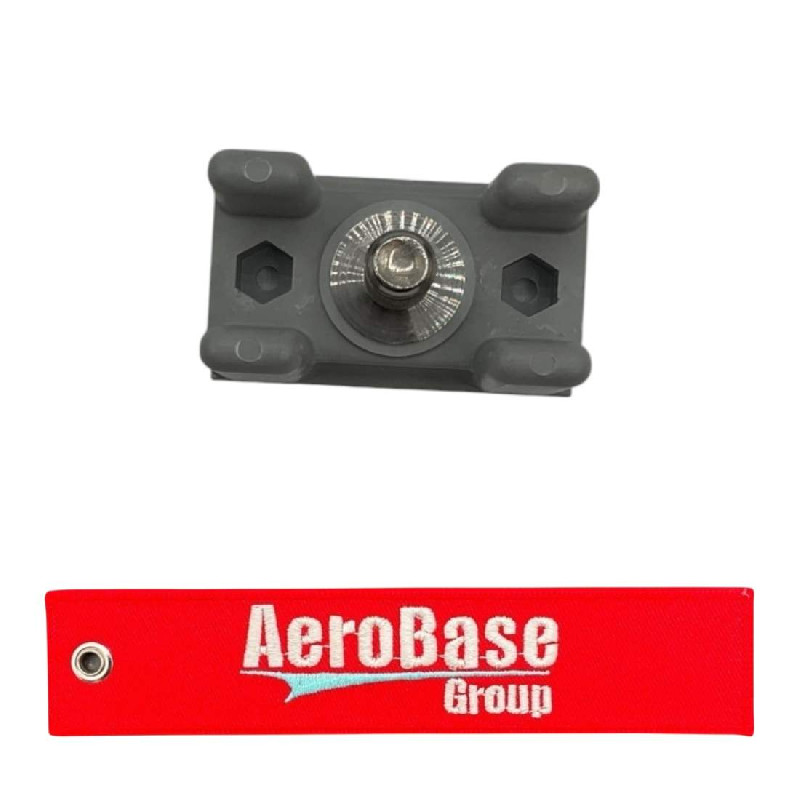

MS27212-5-1 Terminal Board

Part#: MS27212-5-1 NSN: 5940-00-950-7781

About this product MS27212-5 terminal board with 1 stud. * Manufacturer certifications are shipped with your order FREE of charge

Product Details

Part Number or Model	MS27212-5-1
Description	Terminal Board
Schedule B Class
ECCN (Export Control Class)	EAR99
Terminal Pattern Arrangement	Single row
Terminal Design	Nonfeedthru
Special Features	8 max non-feed-through terminals,cut to desiredsize at point of installation
Nonfeedthru Terminal Type	598 single
Mounting Hole Diameter	0.141 inches
Nonfeedthru Terminal Quantity	8 single
Material	Plastic board
Mounting Facility Type And Quantity	9 unthreaded hole
Material	Steel terminals
Distance From Left Edge Of Terminal Board To Center Of First Mou	0.312 inches
Distance From Bottom Edge Of Terminal Board To Center Of Mountin	0.625 inches
Center To Center Distance Between Terminals	1.500 inches
Body Style	Barrier type
Center To Center Distance Between Mounting Facilities Parallel T	1.500 inches
Board Length	12.641 inches
Board Width	1.250 inches
Board Height Excluding Terminals	1.297 inches
Board Height	1.517 inches
Board Construction	Hollow construction without insulated strip
Base Thickness	0.455 inches
Terminal Row Quantity	1

Up to quantity 10 ships same day.

buy now $49.95

each

Request a quote Call for questions and assistance
